Our critically acclaimed and best-selling Fairfax has gone electric. The all-new Fairfax E brings the power to scoot you along with 40Nm of torque from the rear hub, quietly and seamlessly adding a boost to your pedaling. The 340Wh battery is cleanly integrated into the Series 2 aluminum frame's downtube, while a Shimano 8-speed Altus drivetrain provides plenty of gearing range. Finally, hydraulic disc brakes from Tektro allow for controlled and comfortable stopping power in all conditions.

TECHNOLOGY

SERIES 2 FRAME
The Series 2 ebike fitness frame features 6061 aluminum tubing with an internal battery and internal cable routing, forged dropouts with rack and fender mounts and an integrated kickstand mount.

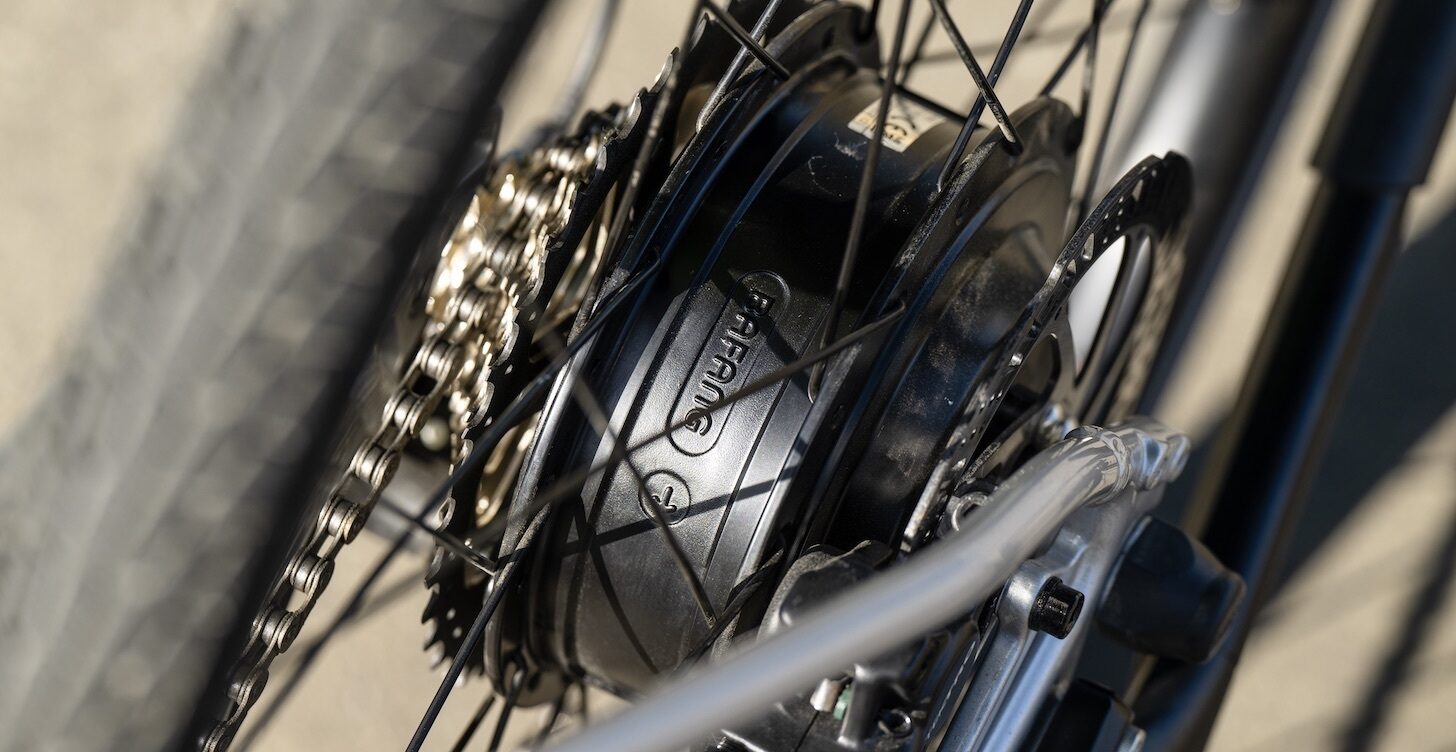

ELECTRIC DRIVETRAIN

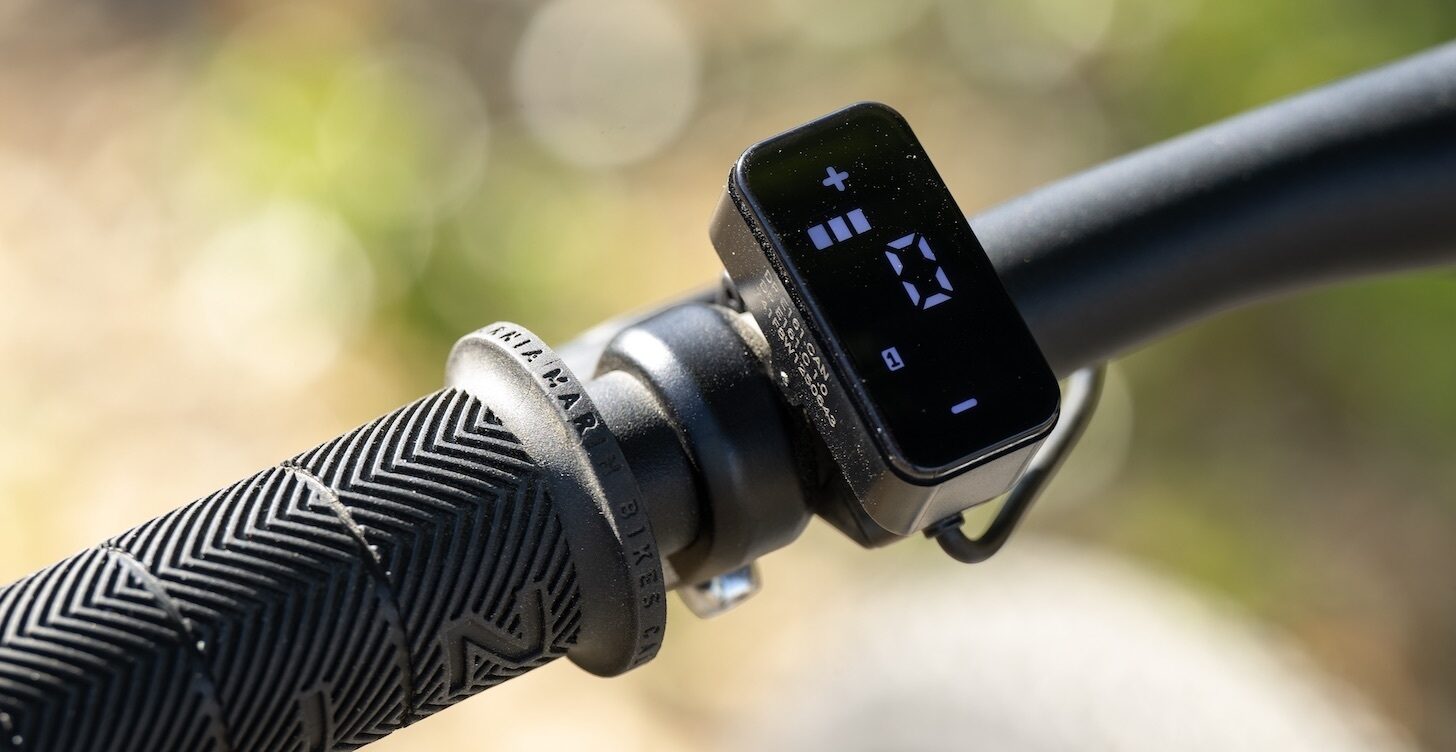

The Bafang rear hub motor provides 40Nm of torque in a compact and tidy package, and delivers top assisted speeds of 20mph, 32km/h (North America), and 25km/h for the rest of the world. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style. The controller also doubles as a display, showing speed, battery charge state, and assist level selected. The Bafang Go app supports real-time access to ride data, real-time access to human health data such as heartbeat and calorie data, and access to navigation steering and traffic tips.

INTERNAL BATTERY

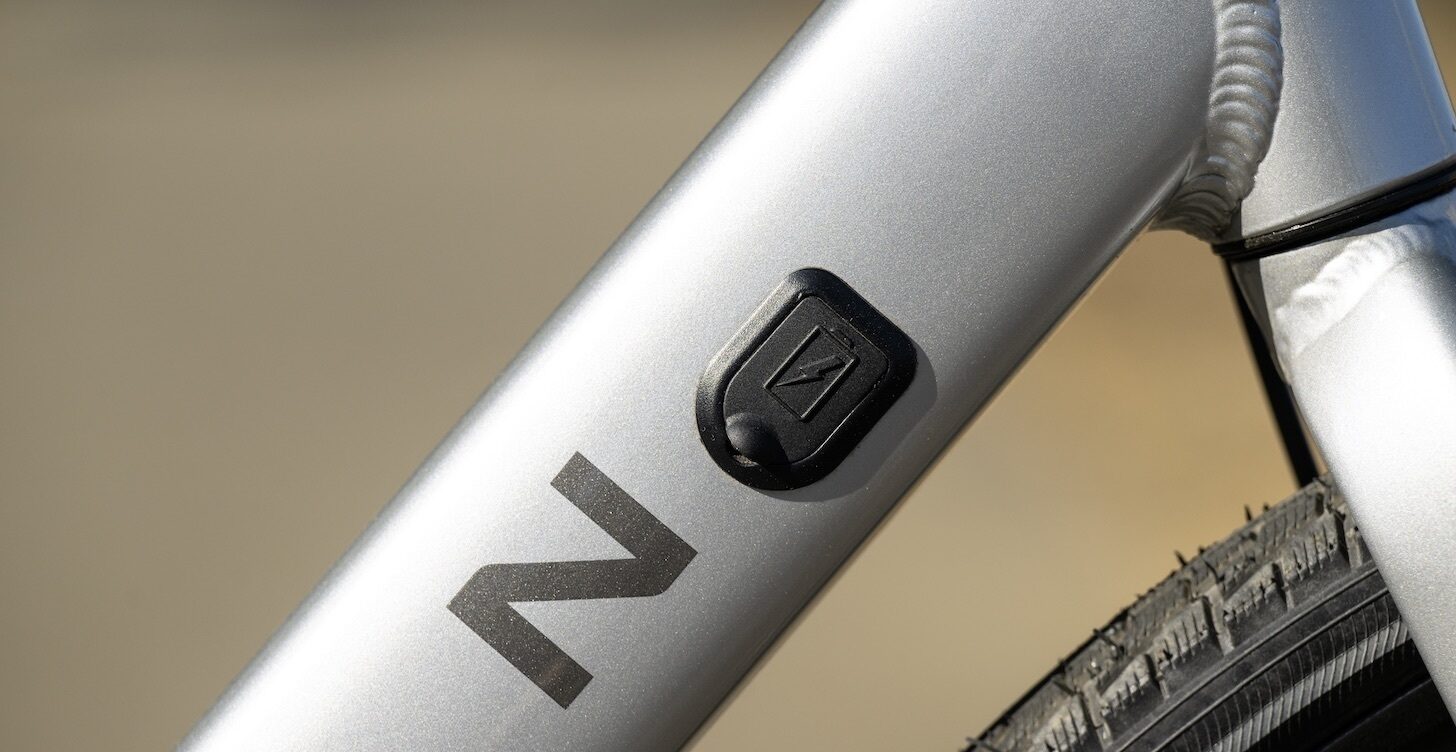

The 340Wh in-tube battery is neatly integrated into the Fairfax E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.

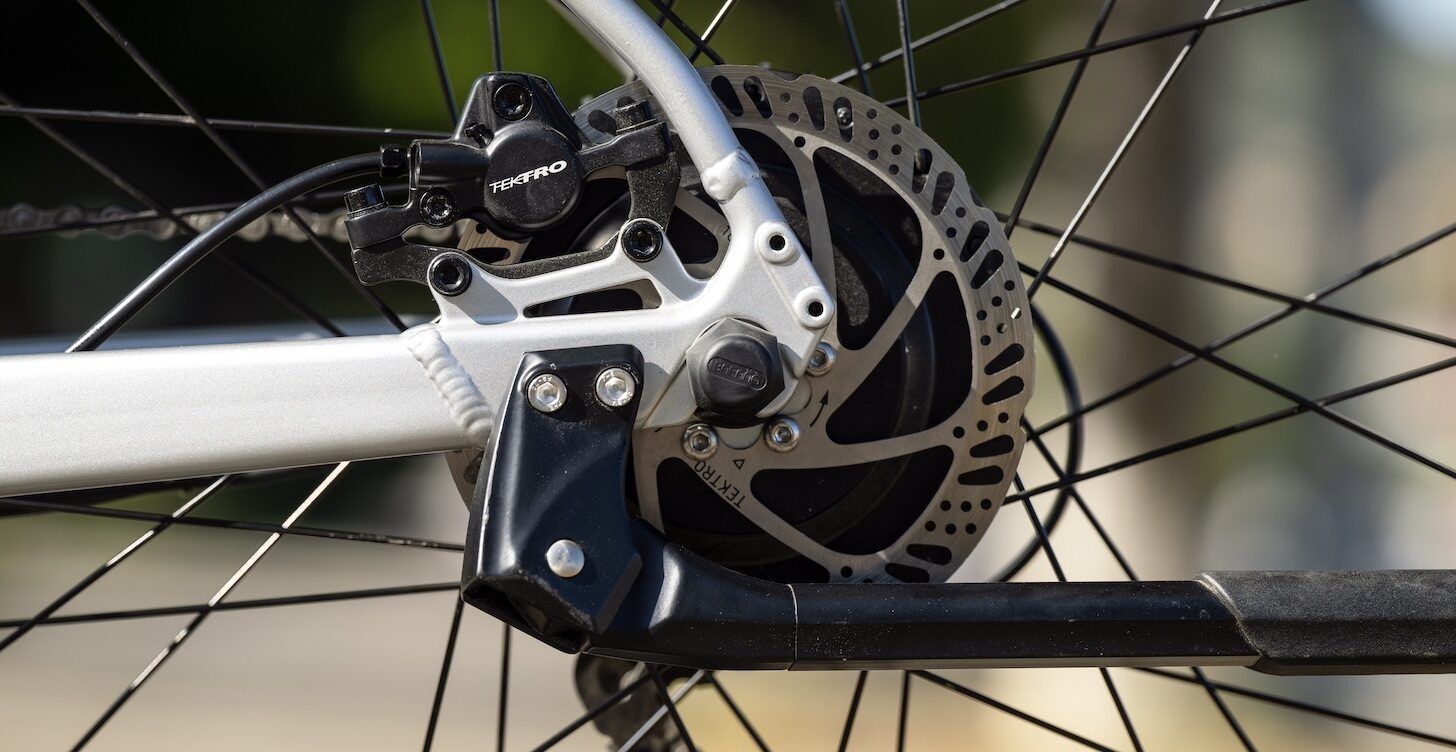

HYDRAULIC DISC BRAKES
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

STEP THROUGH DESIGN
The Fairfax E ST features a step-through frame design with a lowered toptube for easier mounting and dismounting.

SHIMANO DRIVETRAIN
Shimano's stalwart Altus 8-speed drivetrain smoothly and reliably glides between the gearing.

SPECIFICATIONS

• FRAME: Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Kickstand Mount, Fender and Rack Mounts
• FORK: 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
• RIM: Marin Aluminum Double Wall, Disc Specific
• HUB REAR: Bafang 250 Watt Hub Motor, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world
• HUB FRONT: Forged Aluminum Alloy, 32H
• SPOKES: 14g Stainless Steel
• TIRES: Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead
• DERAILLEUR REAR: Shimano Acera, 8-Speed, Wide Range
• SHIFT LEVER: Shimano Altus 8-Speed RapidFire
• CRANKSET: Alloy Crank, Steel 42T Chainring, Ring Guard
• BOTTOM BRACKET: Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
• CHAIN: KMC X8
• CASSETTE: Shimano HG-400, 8-Speed, 11-40T
• BRAKES FRONT: Tektro HDM-275 Hydraulic Disc, 160mm Rotor
• BRAKES REAR: Tektro HDM-275 Hydraulic Disc, 160mm Rotor
• BRAKE LEVERS: Tektro Hydraulic
• HANDLEBAR: Marin Alloy Flat
• STEM: Marin Alloy
• GRIPS: Marin County
• HEADSET: FSA, Orbit CE No.8B
• SEATPOST: Marin Alloy, 27.2mm
• SADDLE: Marin Fitness
• PEDALS: Marin Oso OEM Nylon Platform
• BATTERY: Bafang 360Wh, 36V, In-tube
• CONTROLLER: Bafang Handlebar Mount LED Switch & Display
• KICKSTAND: Alloy Rear-Mount

Specifications, pricing, and availability are subject to change without notice.
