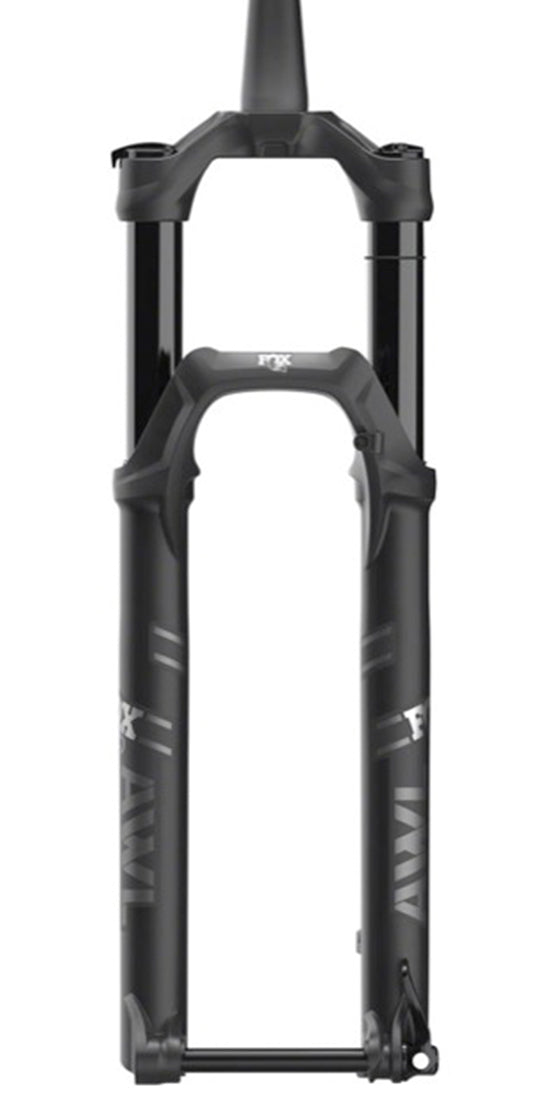

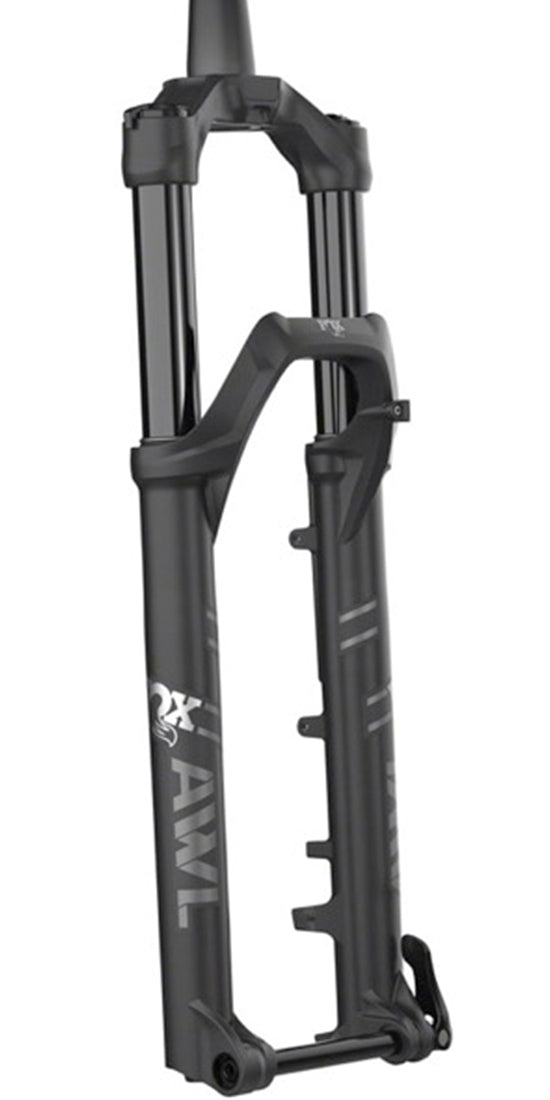

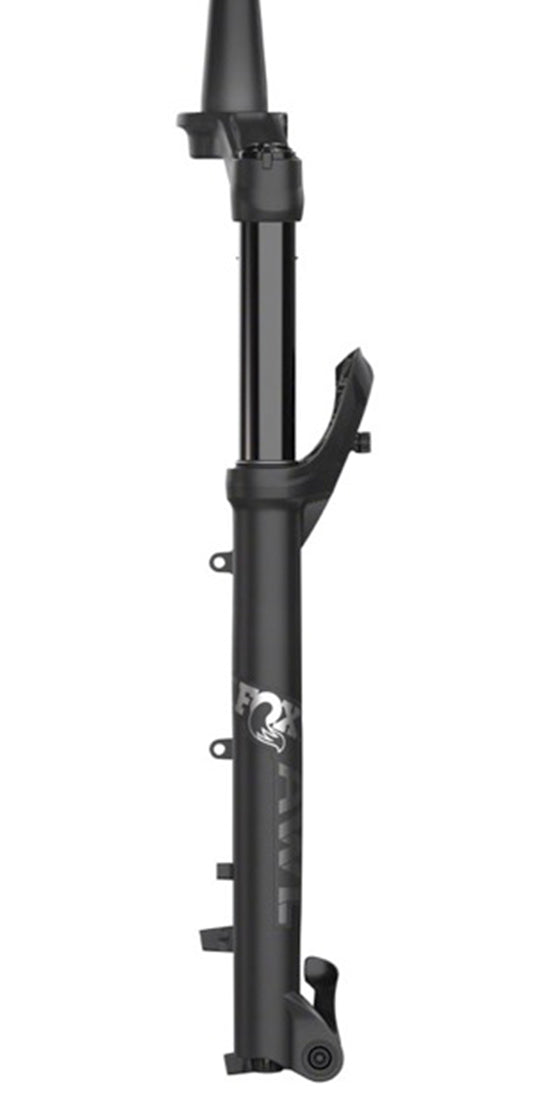

Fox Suspension 34 Float 100 AWL 29" 15QRx110 - Matt Black-Matt Black Logo - 2022

Whether you’re racing to make it to your meeting across town or striving for a personal best down your favorite new trail, the AWL e-SUV fork will get you there on time and in style

• New from-the-ground-up Rail damper combines low maintenance with intuitive ease of use and impressive on-trail performance

• Top-of-fork simple sweep adjuster from firm to open can lock out the fork or fully open the system with plenty of positions in between

• Stiff 34mm e-optimized chassis meets the most stringent e-bike testing standards

• Integrated fender and light mounts delivery maximum versatility

• Clearance for tires up to 2.6” wide

• 160-230 mm rotor compatible

• 34mm stanchions

• 15 QRx110mm axle design

• Air sprung, Rail damper

• Brake Type: Post Mount 160

• Crown Race: 40

• Offset: 51mm

• Front Axle: 15 x 110mm "Boost" QR15 Thru Axle

• Lockout Switch: Crown

• S.H.I.S. Stem Clamp Diameter: 28.6

• Steerer Type: Tapered

• Positive Spring: Air

• Negative Spring: Air

• Travel: 100mm

• Wheel Size: 29"

• Stanchion Diameter: 34mm

• External Adjustments: High Speed Compression Damping, Rebound Damping
