Description
Eastern Cobra 20" BMX - Tan-Camo
The durable sealed front and rear hubs along with 3-piece tubular chromoly cranks make the Cobra an awesome beginner BMX bike perfect for young riders. Designed with a hi-tensile steel frame for long-lasting durability. Other features include aftermarket Eastern grips, pedals, and sprocket for that pro look and feel.
- Now with Sealed Front & Rear Hubs
- 3pc Tubular Chromoly Cranks
- Hi-Tensile Steel Frame
- Chromoly Steerer Tube
- Hi-Tensile Steel Fork and Bars
- Eastern Riblet Grips
- Eastern Atom Pedals
- Eastern Sprocket

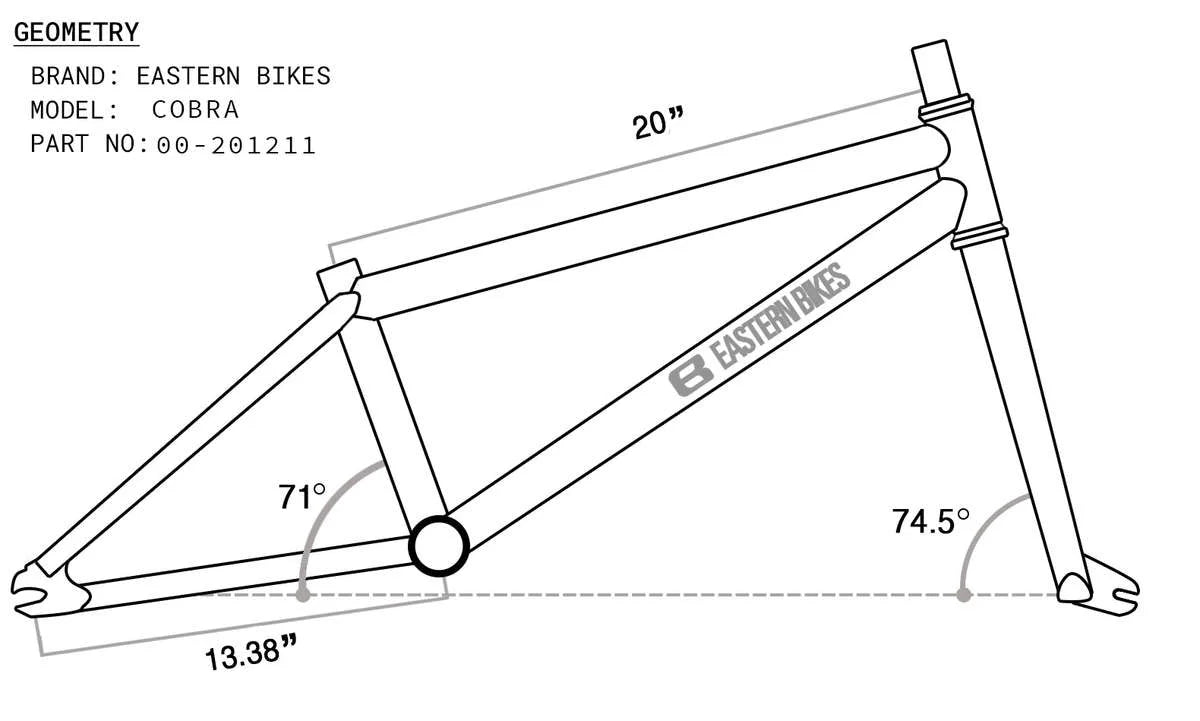

Use the height chart to determine what top tube length is the best fit for your size. This chart is only meant to guide you towards a bike frame that properly fits your proportions. Please take into consideration your experience, riding style, and preference. These factors are just as important as your height. Bikes are designed for riders 13 years old and up.
Specifications
FRAME
Hi Tensile Steel Cobra 20"
Top Tube Size: 20"
BB: AM Loose Ball
Headtube: Aheadset
Chainstay Length: 13.38"
Clamp: Integrated with Frame
Hi-Ten 8.25"
Upsweep/Backsweep 12⁰/1⁰
FORK
Cobra - Chromoly Steerer with Hi-tensile steel Tapered legs, 3/8" dropouts
Fork Rake: 28mm
HEADSET Aheadset
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
BOTTOM BRACKET American Ball Bearing
CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Atom Plastic Pedal with 9/16" Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Padded Seat with Railed Supports
POST Steel 200mm
FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Sealed Driver with Hub
FRONT RIM Alloy, Single Wall, Drilled for 36 Spokes. For 20" Tires
REAR RIM Alloy, Single Wall, Drilled for 36 Spokes. For 20" Tires
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE 20 x 2.25
REAR TIRE 20 x 2.25
PEG none
