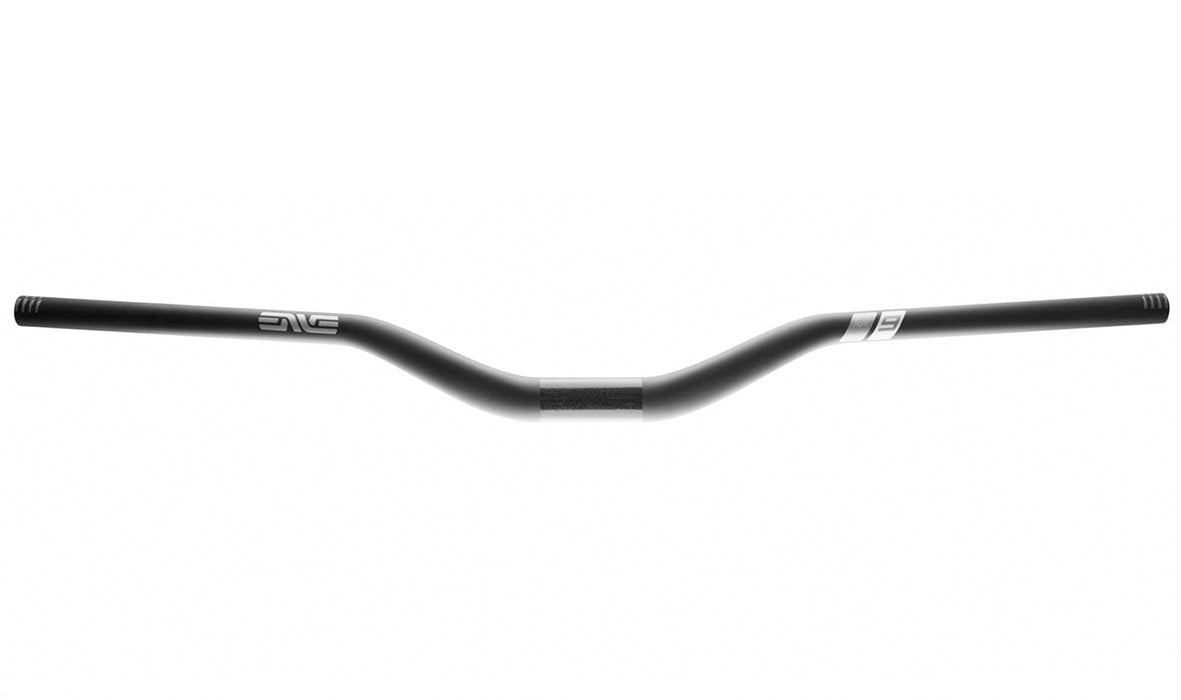

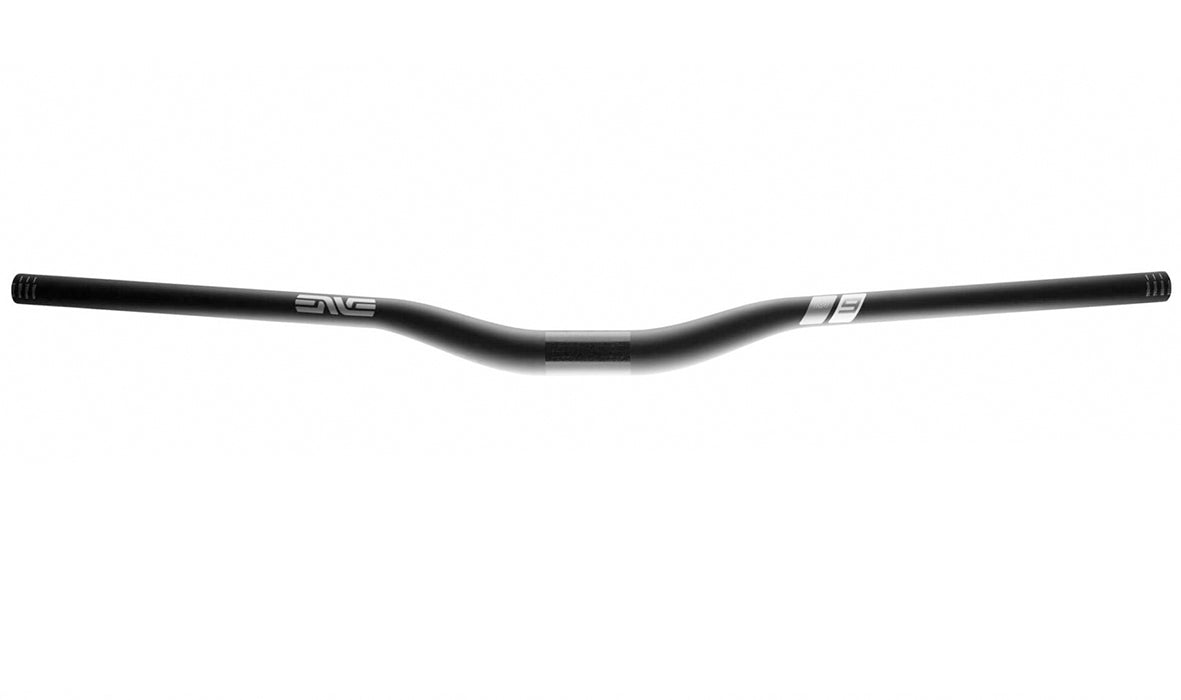

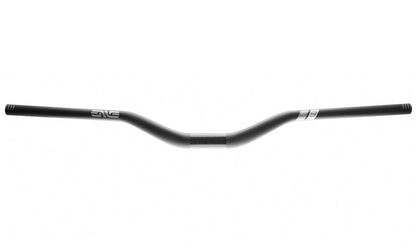

ENVE M9 Carbon MTB Riser Bar

The M9 bar is our dedicated downhill option. Designed around a 31.8mm clamp diameter and our downhill-focused flex profile, this bar’s celebrated ride feel defined the potential of a DH carbon fiber bar and realigned performance expectations. Refined for 2018, the new M9 bar is offered with a 30mm or 50mm rise, and features 8˚ sweep and 4˚ tip angles. The 50mm rise M9 handlebar has a 70mm-wide clamping zone; the 30mm rise bar has a 55mm clamping zone.

• SHAPE MID-RISE
• Material Carbon
• Weight 245g, 265g
• Bar Width (Max) 810mm
• Bar Width (Min) 780mm
• Clamp Diameter 31.8mm
• Rise 30mm, 50mm
• Sweep 8 Degrees
• Tip 4 Degrees
• Torque Spec: Face Plate 5.5Nm
• Torque Spec: Controls 5.5Nm
