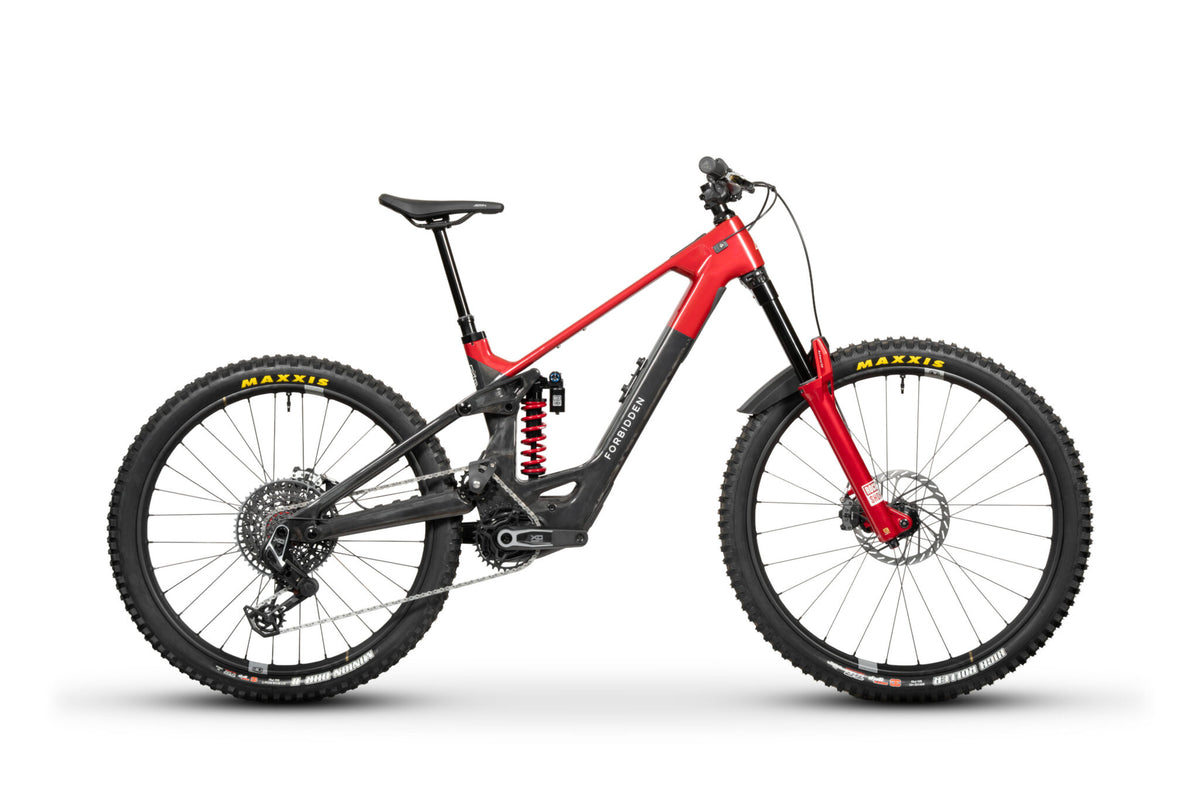

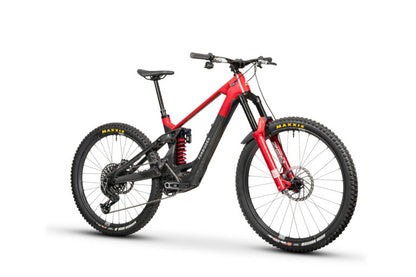

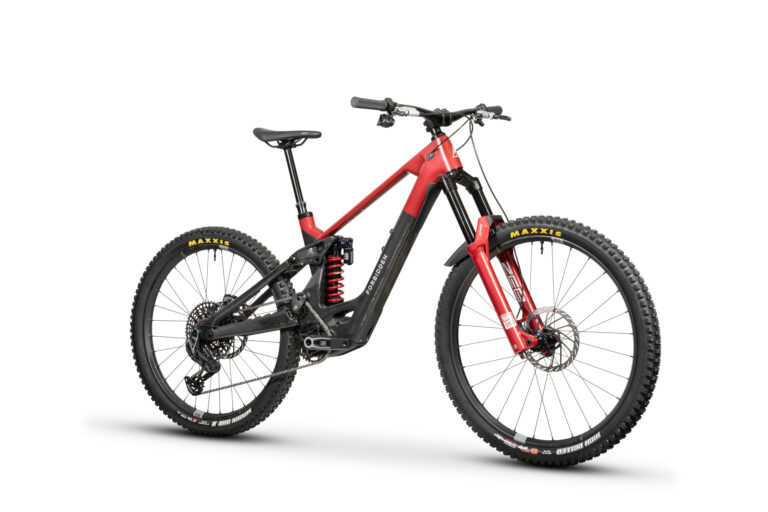

Forbidden Dreadnought E T1 MX - 600Wh

Introducing Dreadnought E. An e-MTB built from the ground up with a singular purpose – to charge through the most chaotic, rowdy lines you can find, and whisk you back to the top, asking for more. Big travel. Full power. Zero hesitation.

Featuring 170mm of rear travel paired with a 180mm fork, combined with a rearward, yet reserved axle path, Dreadnought E has the ability to plow when you drop your heels, but still offer pop and support when it’s needed to get off the ground or pump to generate that addictive speed.

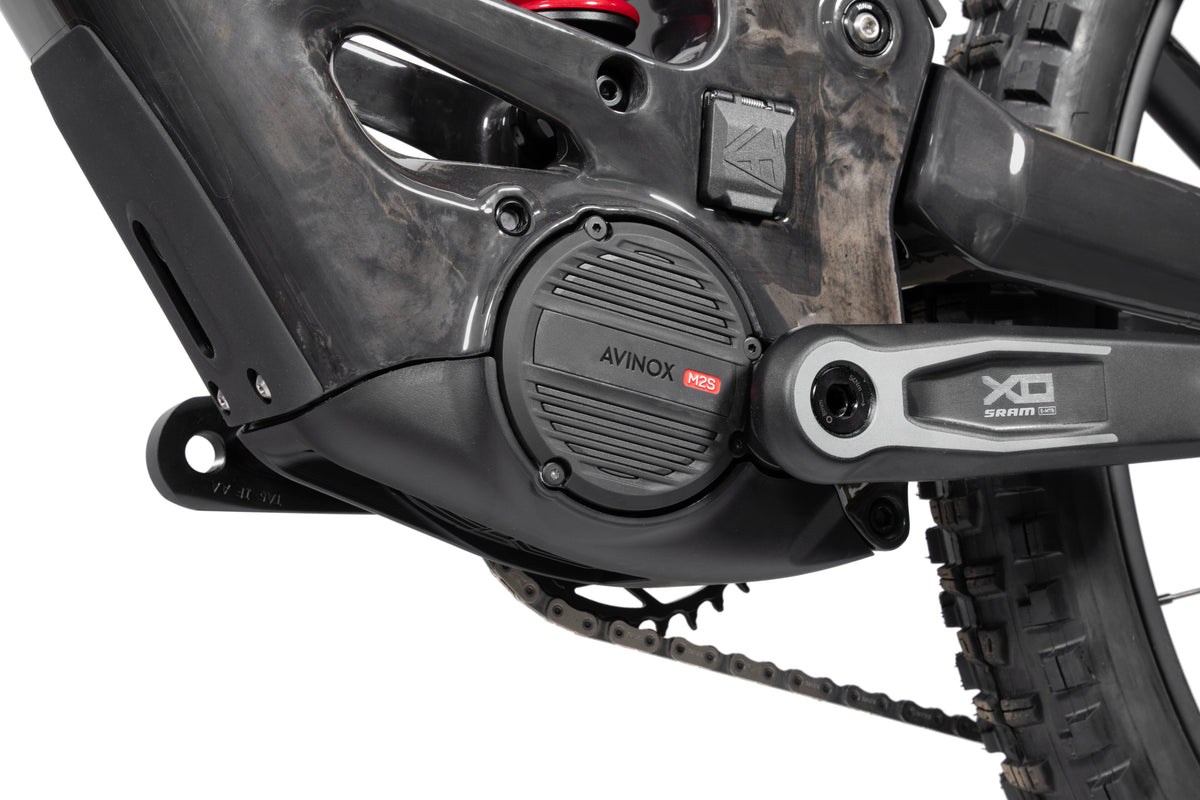

Dreadnought E is spec’d with the all-new Avinox M2 and M2S drive systems. Tier 1 and Tier 2 run the Avinox M2S, a 2.6 kg unit delivering 130 Nm of torque (150 Nm Boost) and 1300 watts. Tier 3 and Tier 4 run the Avinox M2, weighing 2.65 kg, delivering 110 Nm of torque (125 Nm Boost) and 1100 watts. Both options can be paired with 600 Wh or 800 Wh batteries, so you can choose a lighter setup or maximum range depending on how deep the mission goes.

Dreadnought E isn’t here to play nice, it’s here to go further, hit harder, and redefine what a full-power, big-travel e-MTB is supposed to feel like.

• Intended Use

  All Mountain

• Suspension

  170mm Rear / 180mm Front

• Wheel Size

  Mixed Wheel (MX)

• Motor | Battery

  Avinox M2S or Avinox M2 | 600Wh or 800Wh

Specifications:

Dreadnought Bike Build

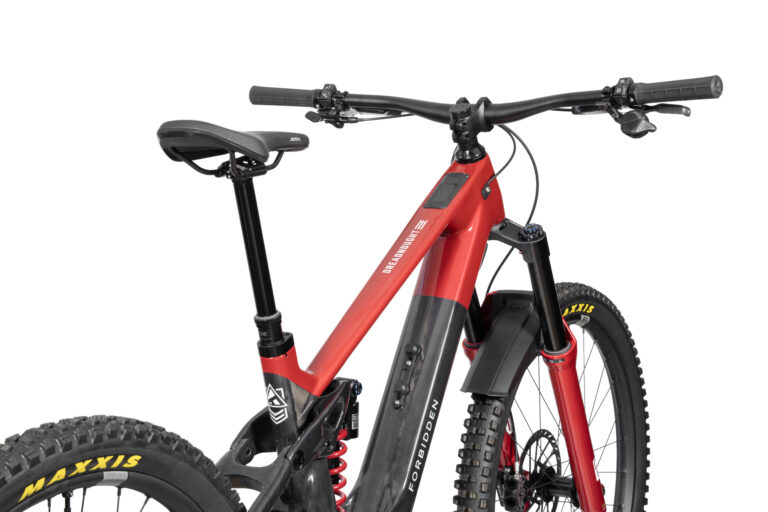

Frame: Dreadnought E Full Carbon

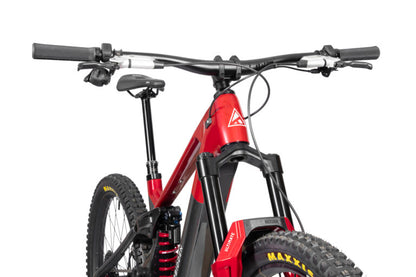

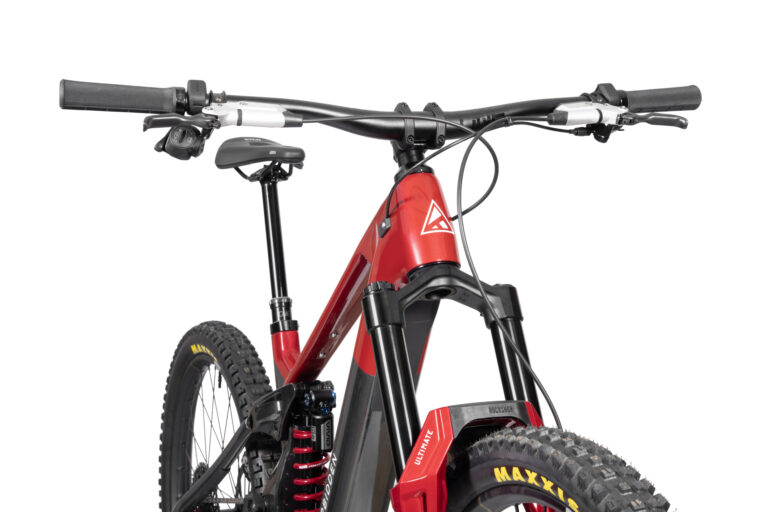

Fork: RockShox Zeb Ultimate

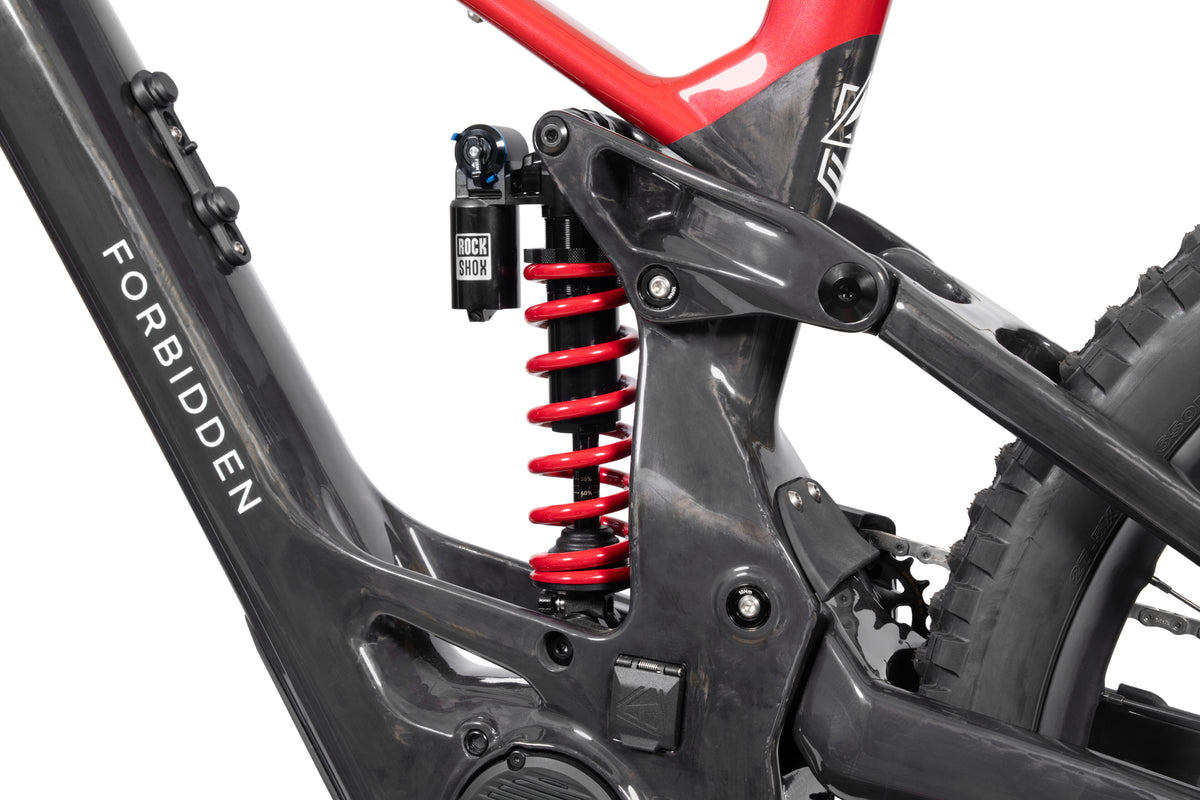

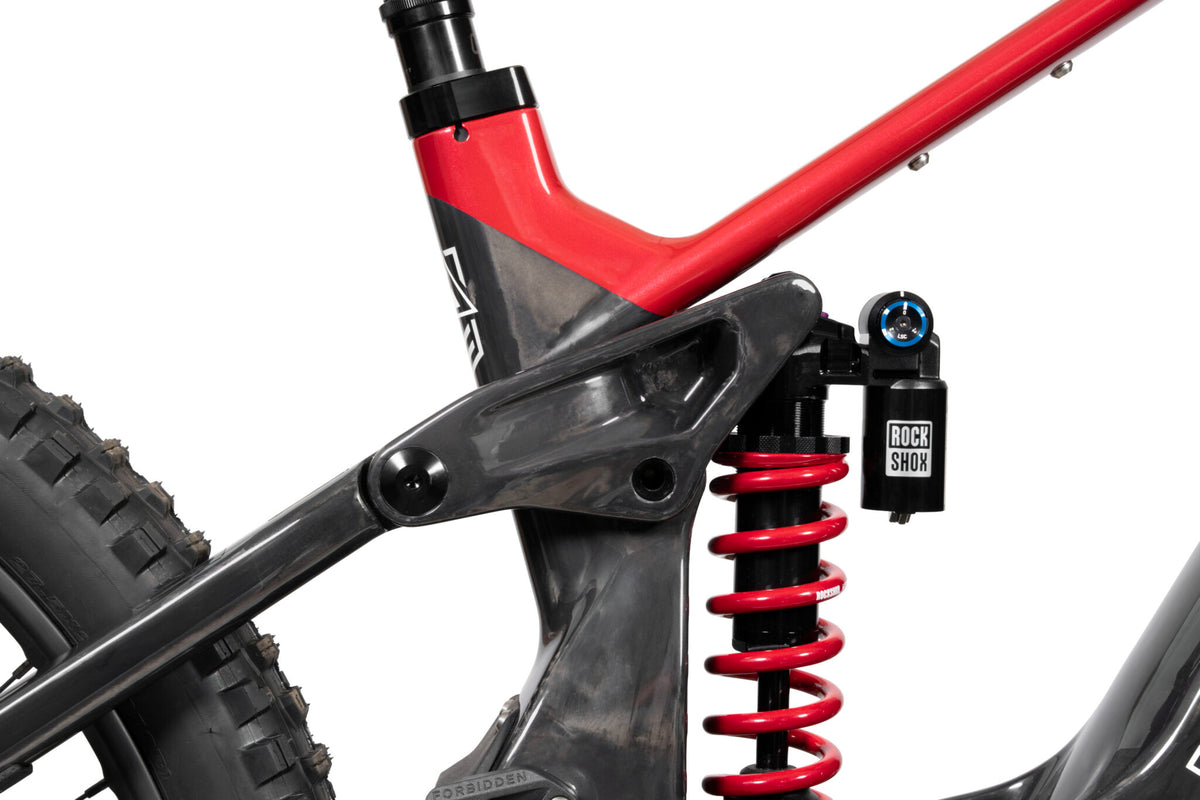

Rear Shock: RockShox Vivid Coil
Headset: FSA Orbit ZS
Grips: Forbidden

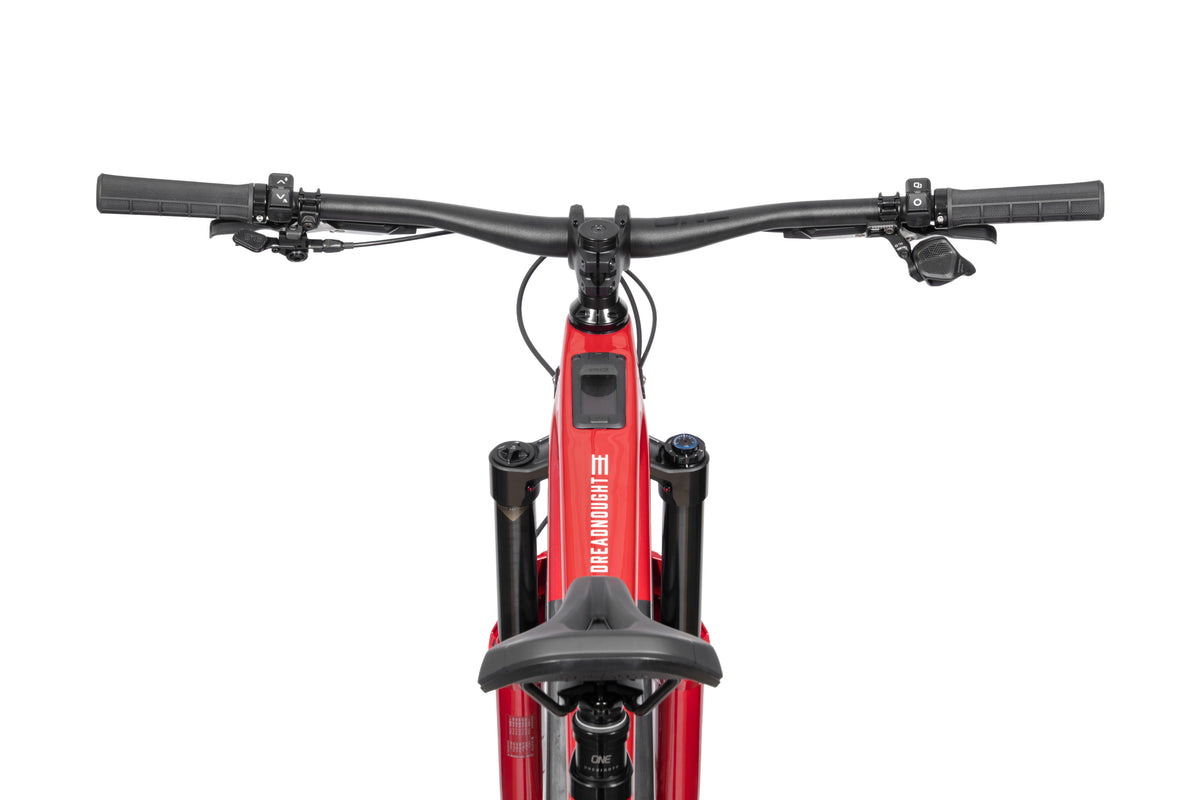

Handlebars: OneUp Alloy
Stem: OneUp Forged
Seat Post: OneUp V3
Seat Post Remote: OneUp V3
Seat Post Clamp: Forbidden
Saddle: Fizik Terra Aidon X5
Front Brake: SRAM Maven - Ultimate
Front Brake Rotor: SRAM HS2
Rear Brake: SRAM Maven - Ultimate
Rear Brake Rotor: SRAM HS2
Rear Shifter: SRAM X0 Type

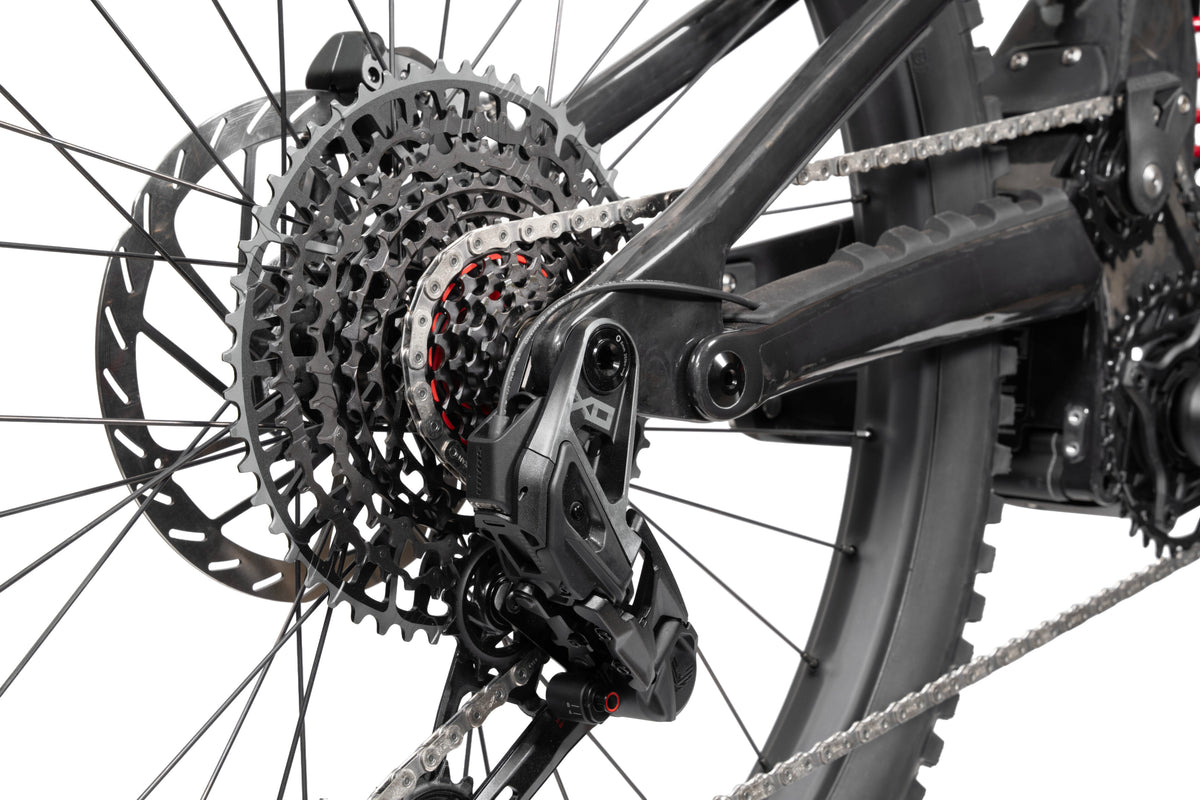

Rear Derailleur: SRAM X0 Type
Cassette: SRAM XS-1295
Chain: SRAM GX T-Type
Crankset: SRAM X0 E
Pedals: Not included

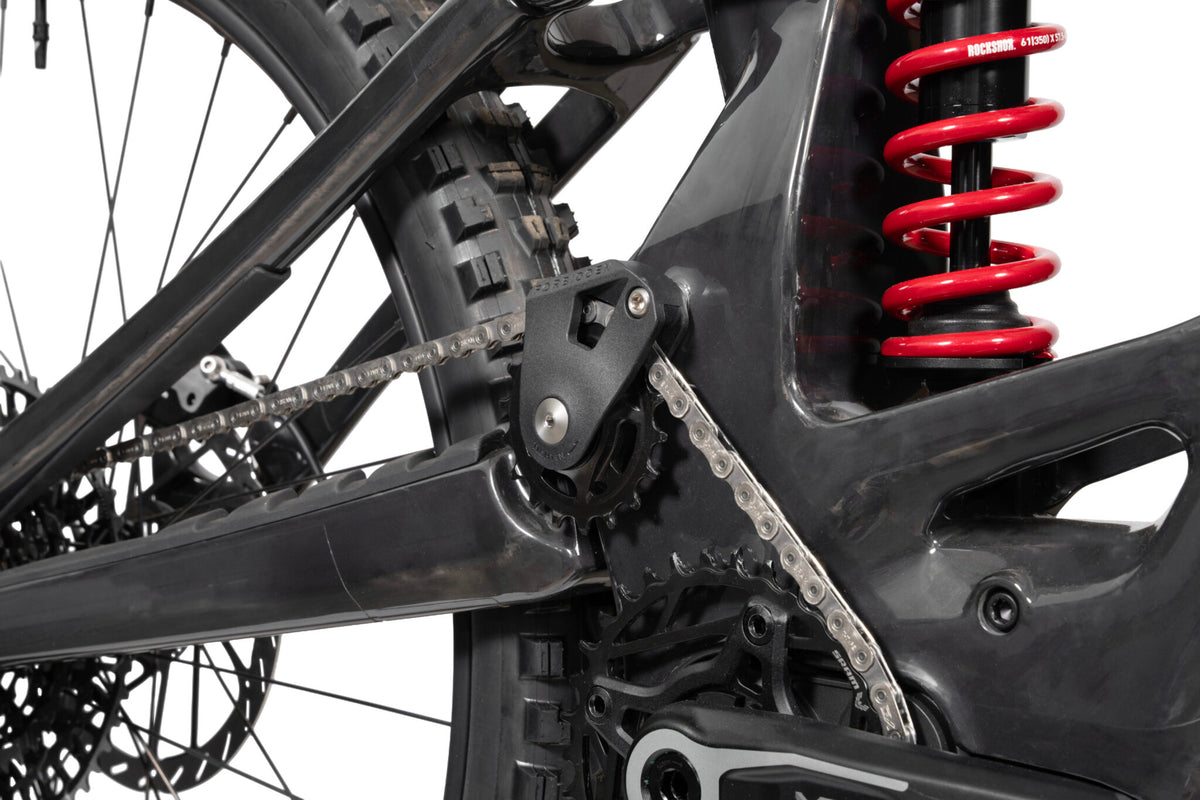

Upper Chain Guide: Forbidden Race Guide
Lower Chain Guide: Not included
Bottom Bracket: Avinox
Front Hub: Crank Brothers Ratchet
Front Axle: Maxle Stealth
Rear Hub: Crank Brothers Ratchet
Rear Axle: SRAM Maxle Stealth
Spokes: Sapim E-Light / Strong
Rims: Crankbrothers Synthesis Carbon Enduro
Front Tire: Maxxis High Roller 3 3C MaxxGrip, DH Casing
Rear Tire: Maxxis DHRII 3C MaxxGrip, MaxxGrip, DH Casing
Motor: Avinox M23
Battery: Avinox
Included Accessories:

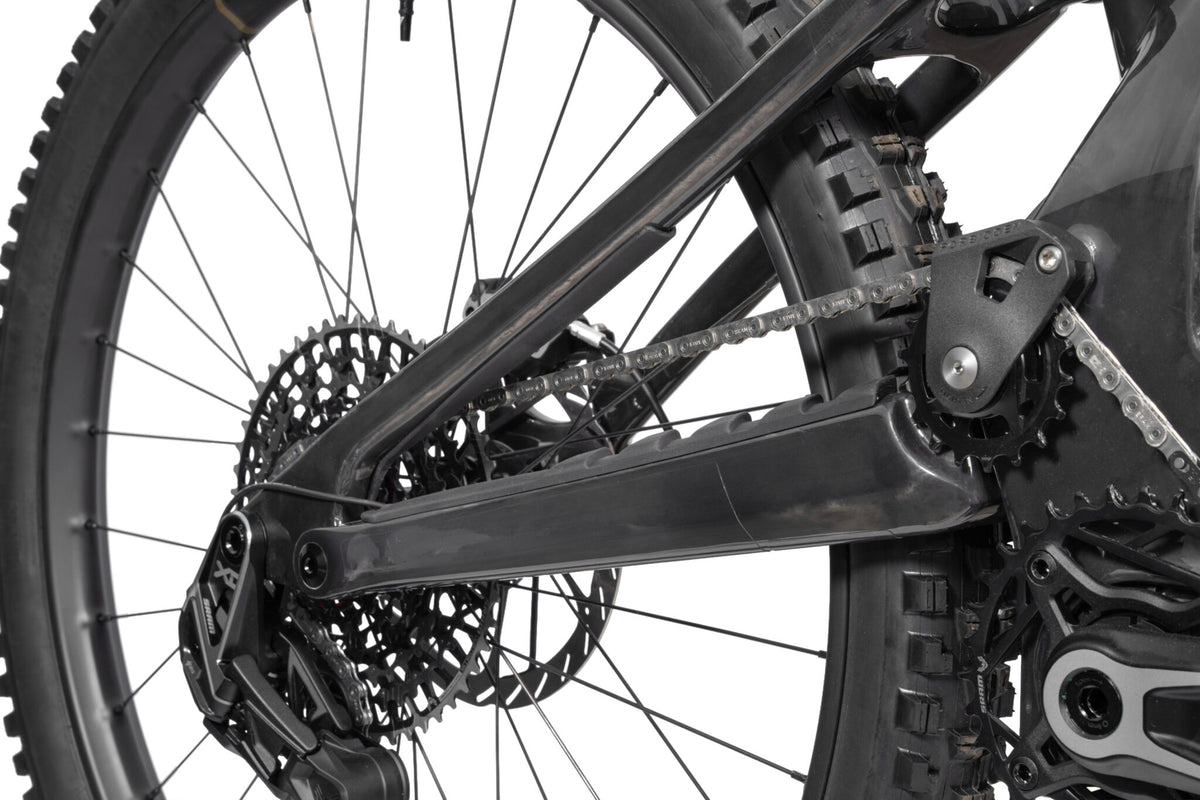

Frame Protection Film
Avinox 508W Charger
AXS Extension Cord
Fidlock TWIST Bike Base
Stan’s Sealant - 250ml

Sizing Guide:
