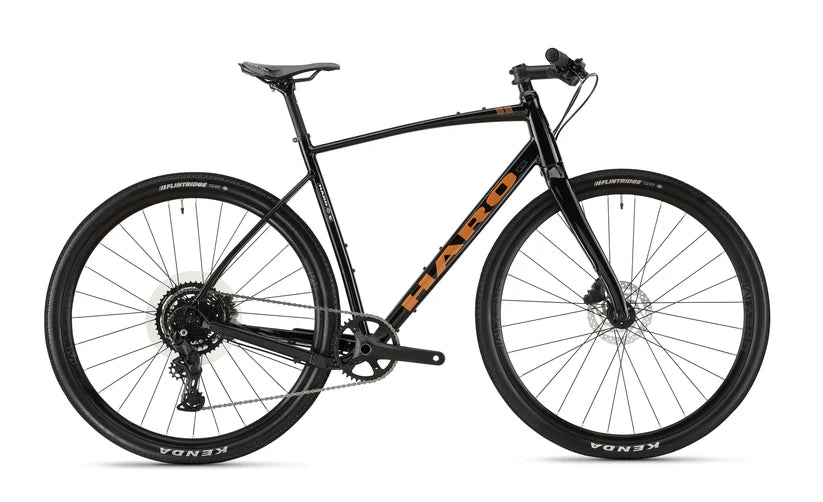

Haro Buzzard Alloy LTD 4 700c - Gloss Black-Copper
Haro Buzzard Alloy LTD 4 700c - Gloss Black-Copper
Regular price
$1,299.99
Sale price
$1,299.99
Unit price
per
Product ID: GM071425-338
Earn
rewards points on this item /
Join Now
Out of stock
Shop all Haro | Shop all Cyclocross & Gravel Bikes
View full detailsDescription
Haro Buzzard Alloy LTD 4 700c
The Haro Buzzard Alloy series is a light & lively addition to our gravel bike collection. With a classic aluminum chassis, you get responsive performance with a lower price tag. Add a full-carbon fork, custom paint and two different spec levels, you're ready to hammer out the miles on any terrain you choose to take on. The Buzzard Alloy LTD 4 features a 1 X 9 Shimano Cues drivetrain for simplicity and easy ridin'.
Features:
Specifications:
| Frame | Haro Buzzard alloy frame. Smooth welded double-butted aluminum, 1.125 - 1.5" integrated head tube, BB86 bottom bracket, flat-mount disc brake, replaceable derailleur hanger, 12 x 142mm thru-axle dropouts |
|---|---|
| Fork | Haro Buzzard Fork, full carbon construction, 1.125 - 1.5" tapered steerer tube, flat-mount disc, fender mounts, 12 x 100mm thru-axle dropouts |
| Colors | Gloss Black / Copper |
| DRIVETRAIN | |
| Cranks | Shimano Cues U4000, 40T chainring |
| Pedals | |
| Chain | Shimano LG500 |
| Bottom Bracket | Shimano RS500-PB. BB86 press-fit |
| Front Derailleur | |
| Rear Derailleur | Shimano Cues U4000 9-speed |
| Derailleur Shifter | Shimano Cues U4000 9-speed |
| Freewheel/Cassette | Shimano Cues LG300 9-speed, 11-46T |
| WHEELS | |
| Tires | Kenda K1152, Flintridge, 700x40C GCT casing, tubeless ready |
| Wheels/Rims | Disc, alloy rim, 28H |
| Hubs | Disc, sealed bearings, front: 12 x 100mm thru-axle, rear: 12 x 142mm thru-axle, 6-bolt, 28H |
| BRAKING SYSTEM | |
| Brakes | Flat mount dual-piston mechanical 160mm rotors, front & rear |
| Brake Levers | Shimano Cues |
| OTHER COMPONENTS | |
| Grips/Tape | Gripper Silicone gel |
| Handlebar | Brev M. aluminum, 31.8mm |
| Stem | Alloy, 31.8mm, -7° |
| Headset | FSA 42E, 1.125" upper bearing/1.5" lower bearing |
| Saddle | 280 X 140mm, steel rails |
| Seat Post | Alloy, 27.2mm x 330mm, 5mm offset |
| Seat Clamp | Alloy, 31.8mm |
| Extras | Includes tubeless valves, tape and sealant |
Geometry:
| SIZE | 48 | 51 | 54 | 56 | 59 |
|---|---|---|---|---|---|
| Top Tube (Effective) | 535mm | 553mm | 569mm | 586mm | 603mm |
| Seat Tube (C-T) | 436mm | 462mm | 491mm | 512mm | 541mm |
| Stack Height | 519mm | 545mm | 571mm | 596mm | 622mm |
| Reach | 377mm | 386mm | 395mm | 404mm | 413mm |
| Standover | 751mm | 776mm | 804mm | 826mm | 853mm |
| Head Tube Length | 101mm | 129mm | 148mm | 175mm | 202mm |
| Head Angle | 71° | 71° | 72° | 72° | 72° |
| Seat Angle | 73° | 73° | 73° | 73° | 73° |
| Wheel Base | 1009mm | 1027mm | 1024mm | 1041mm | 1059mm |
| Chainstay | 415mm | 415mm | 415mm | 415mm | 415mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| Axle to Crown | |||||
| Fork Offset | 65mm | 65mm | 55mm | 55mm | 55mm |
Sizing Guide:
| Size | Inches | CM |
|---|---|---|
| 48 | 5'1" - 5'4" | 153 - 163 |
| 51 | 5'4" - 5'7" | 163 - 170 |
| 54 | 5'7" - 5'11" | 170 - 175 |
| 56 | 5'11" - 6'2" | 175 - 180 |
| 59 | 6'2" - 6'5" | 180 - 188 |
