Haro

Haro Escondido 1 Belt Drive 29 - Gloss Oxford Green-Orange

Haro Escondido 1 Belt Drive 29 - Gloss Oxford Green-Orange

Regular price $5,499.00
Sale price $5,499.00
Color
Size

Product ID: GM071625-12

Earn rewards points on this item / Join Now

Only 2 Items Left



Shop all Haro   |   Shop all Electric Commuter&Leisure Bikes

View full details

Description

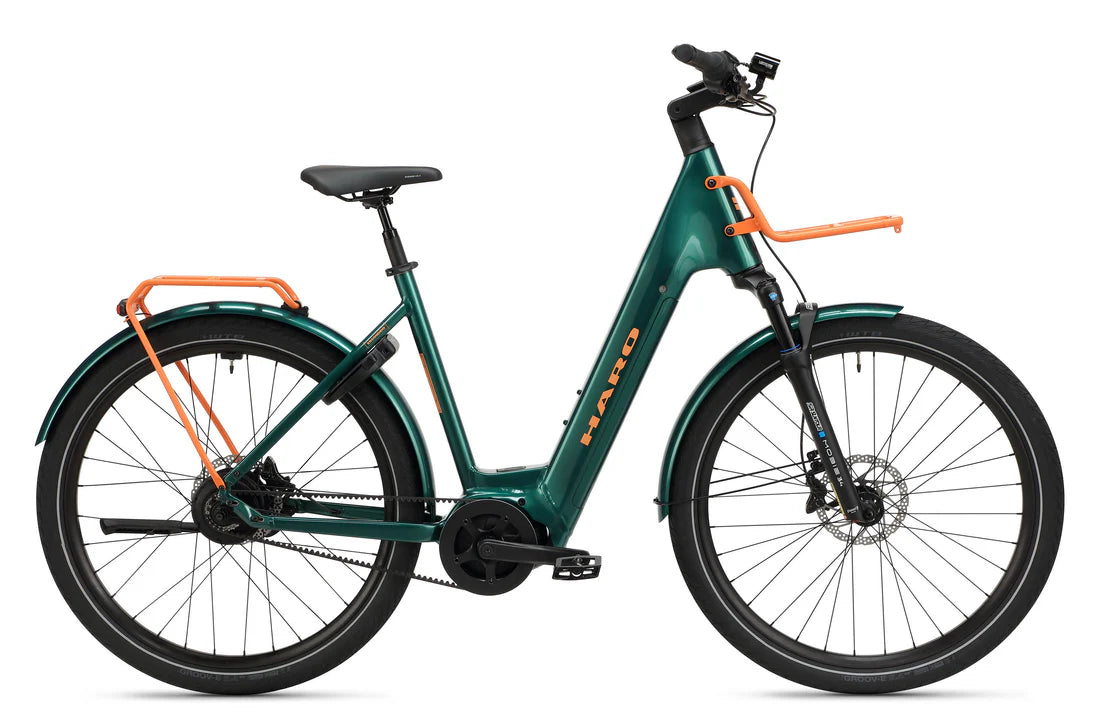

Haro Escondido 1 29"

Do you want to travel further, faster, and with even more comfort?
Then the Escondido 1 is exactly the bike for you. Designed for those who value more power, longer range, and a particularly low-maintenance riding experience, whether for everyday use or touring.

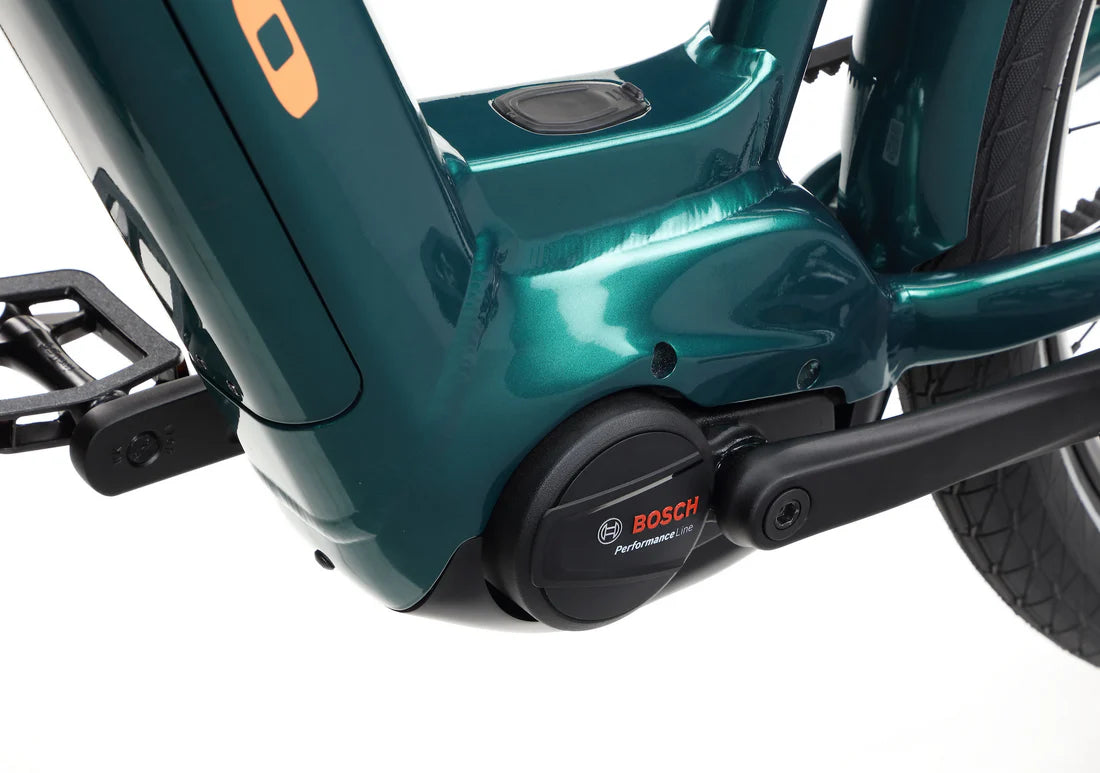

At the heart of the Escondido 1 is the Bosch Performance Line motor – powerful, quiet, and perfectly tuned for sporty rides or longer commutes. Combined with the large 625 Wh battery, it reliably gets you through the day with a range of up to 110 km .

Simply hop on and ride:

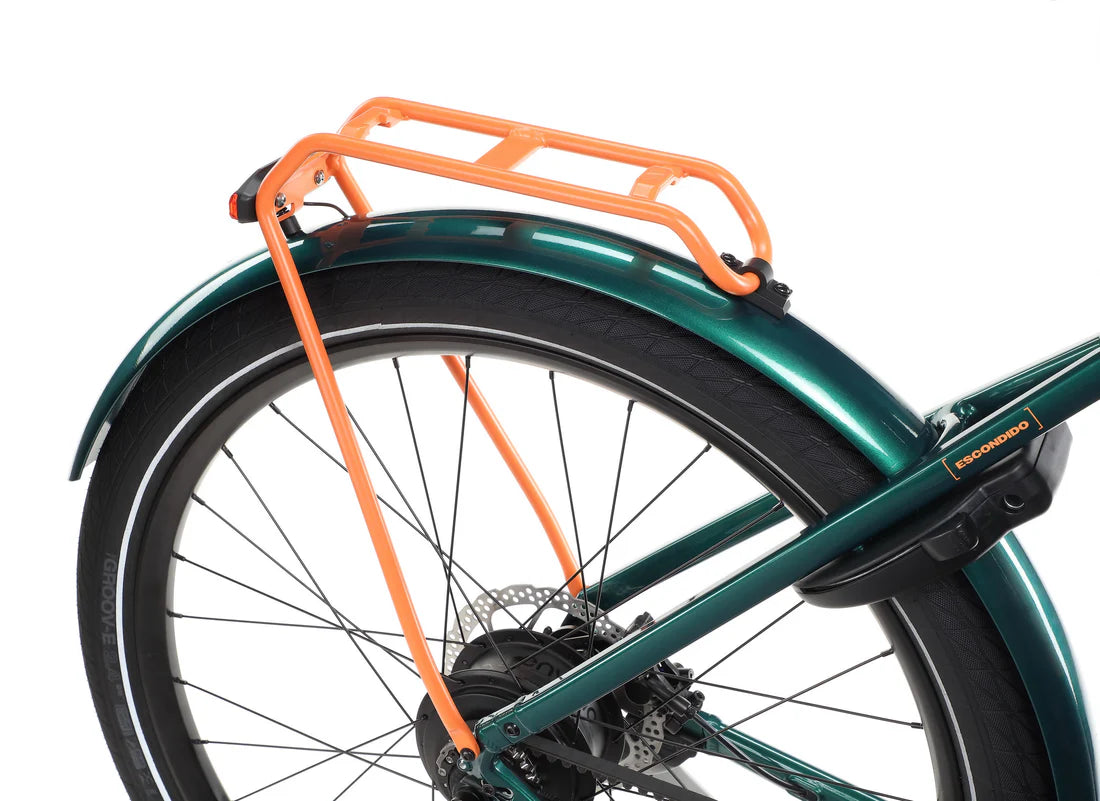

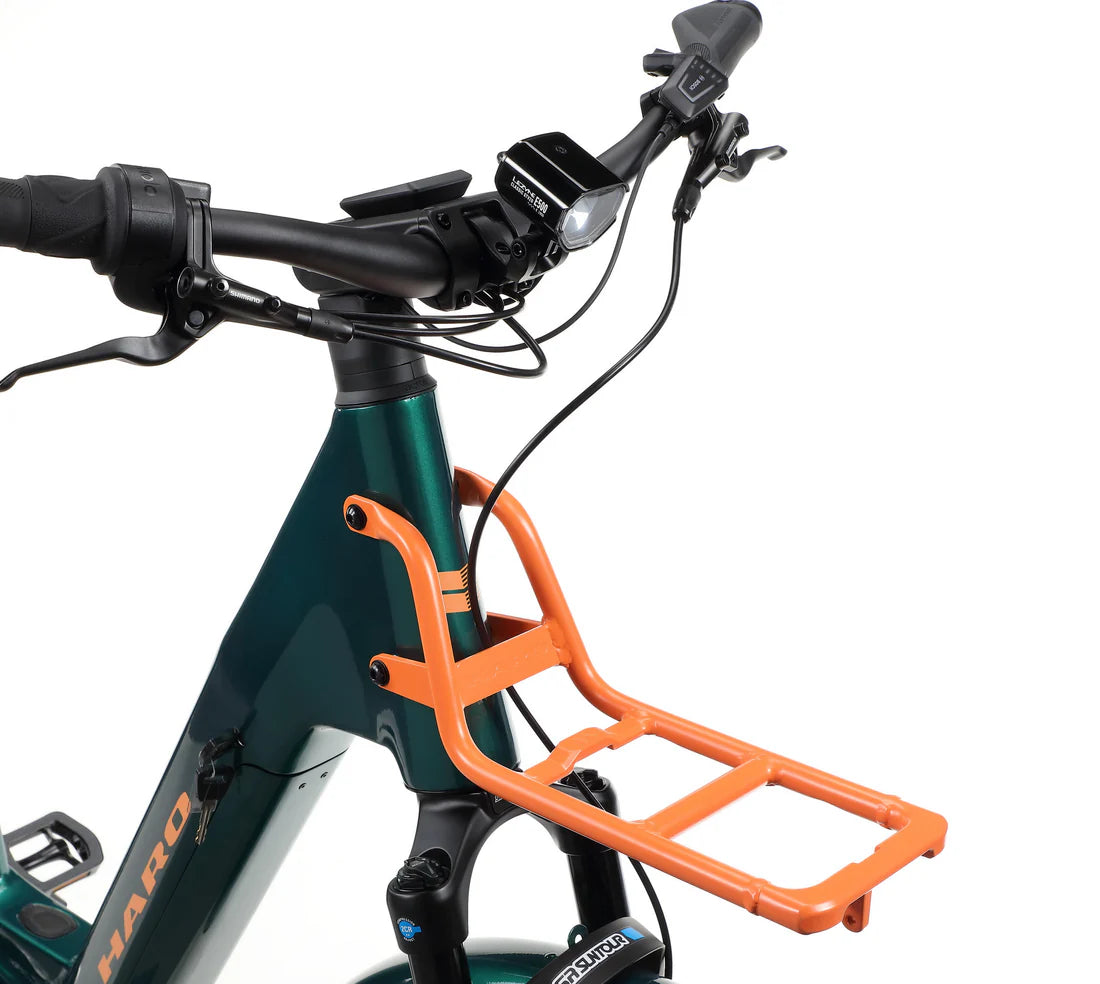

The low step-through makes getting on and off particularly comfortable – even with luggage. And this is where the Escondido 1 really shines: The integrated Atran Velo luggage rack system allows you to easily and securely attach bags, baskets, or other attachments – without the hassle of lashing them down. Whether shopping, everyday office life, or a weekend getaway – the bike adapts to your lifestyle.

And now things get really smart:

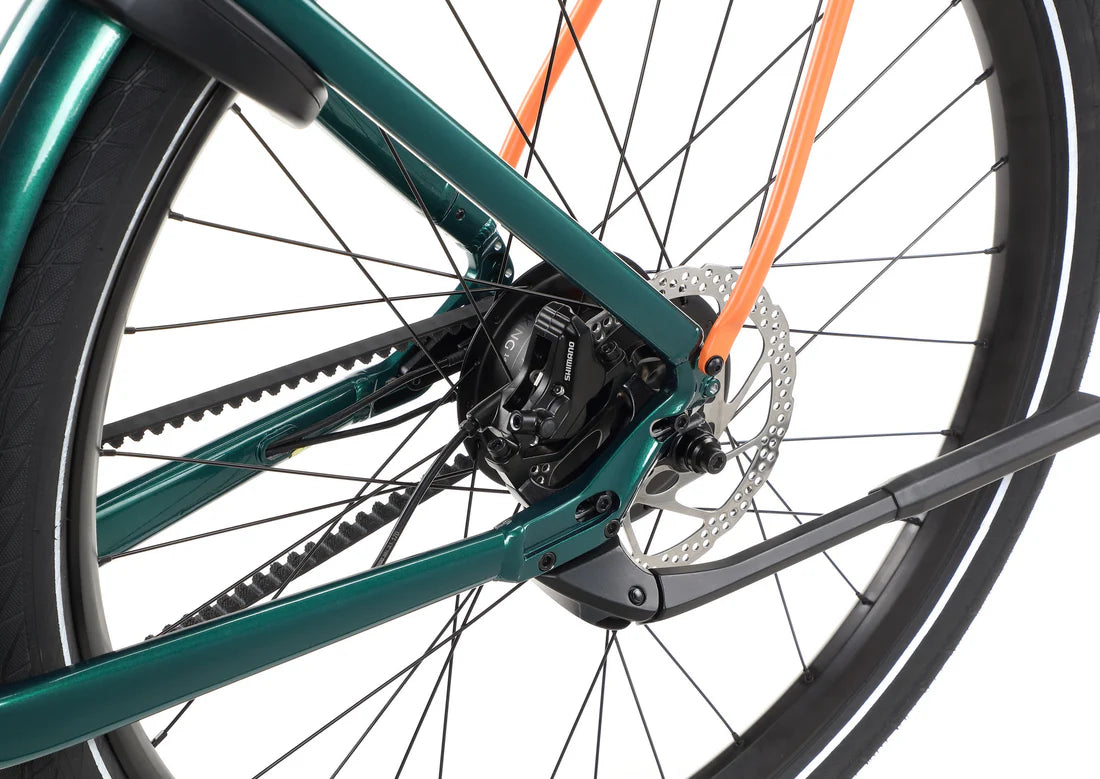

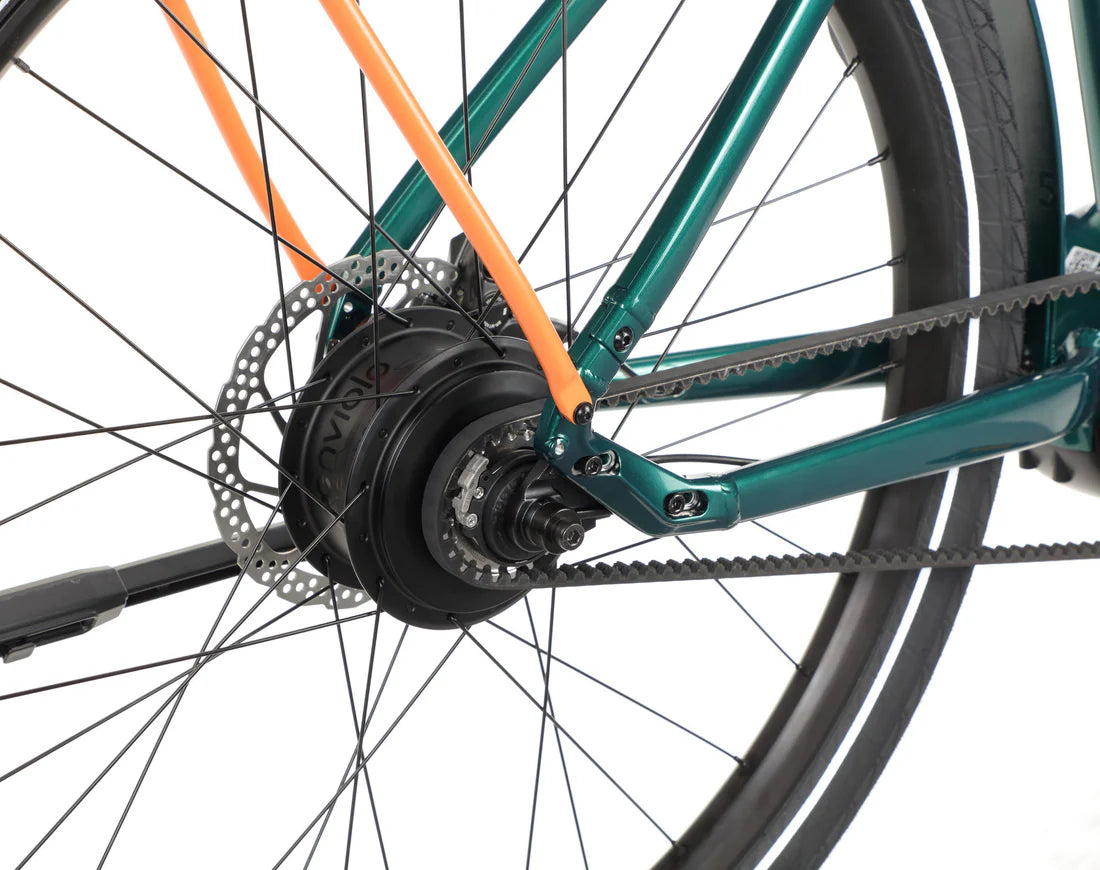

The Escondido 1 is equipped with the maintenance-free Gates belt drive and an Enviolo hub gear with continuously variable transmission . You shift gears smoothly – while stationary, while riding, uphill, or downhill – without any harsh gear changes or chain rattle. Simple, quiet, and clean.

Features:

  • Alloy E-Commuter Frame for Bosch PowerTube
  • Bosch Performance Line Gen 3, 65 Nm
  • Bosch PowerTube 625 Wh
  • Bosch Kiosk Display 300
  • Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light.
  • SR Suntour Mobie 34 Boost, 110 × 15 mm thru axle, 80 mm travel, Air EQ Adjust, 2CR
  • Enviolo Trekking 380% gear range, 148 mm modular thru axle
  • Shimano BL-4100
  • A-Rim POM 30, 32H, pinned
  • Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy
  • Selle Royal Essenza Moderate saddle
  • Aluminum Icor adjustable suspension seatpost, 350 mm, size L

Specifications:

Frame Alloy E-Commuter Frame for Bosch PowerTube
Fork SR Suntour Mobie 34 Boost, 110 × 15 mm thru axle, 80 mm travel, Air EQ Adjust, 2CR
Colors Oxford Green, Cobalt Blue
Weight 27.2 kg
E COMPONENTS
Motor Bosch Performance Line Gen 3, 65 Nm
Battery Bosch PowerTube 625 Wh
Display Bosch Kiosk Display 300
Remote Bosch Mini Remote
Lights Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light.
DRIVETRAIN
Cranks Samox forged aluminum crankset, 170 mm with Gates CDC 50T sprocket
Pedals Wellgo alloy platform pedals with sandpaper top
Chain Gates CDC belt drive
Bottom Bracket *Sea motor
Front derailleur -
Rear Derailleur Enviolo Trekking 380% gear range, 148 mm modular thru axle
Derailleur Shifter -
Freewheel/Cassette -
WHEELS
Tires WTB E-Groove 29 × 2.4" tires
Wheels/Rim A-Rim POM 30, 32H, pinned
BRAKING SYSTEM
Brakes Shimano BL-4100 4 Piston, 180mm front rotor, 160mm rear rotor, center lock
Brake levers Shimano BL-4100
OTHER COMPONENTS
Grips/Tape DDK Ergo grips with PC lock ring
Handlebar Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy
Stem Satori Catamaran stem, 95 mm extension, 70 mm reach, 0°–90° angle adjustment, Integrated Bosch Kiosk display mount
Headset Across AZX-589 R2 headset, semi-integrated, designed for internal cable routing
Saddle Selle Royal Essenza Moderate saddle
Seat Post Aluminum Icor adjustable suspension seatpost, 350 mm, size L
Seat Clamp Quick release seat clamp
Extras Front and rear Atran Velo-compatible racks

Geometry:

SIZE SMALL MEDIUM LARGE
Front Wheel Size 29" 29" 29"
Rear Wheel Size 29" 29" 29"
Seat Tube 470mm 510mm 550mm
Top Tube Effective 604mm 620.9mm 625.9mm
Head Tube Angle 69˚ 69˚ 69˚
Seat Tube Angle 65.2˚ 65.2˚ 65.2˚
Chain Stay / RC Length 503.6mm 503.6mm 503.6mm
BB Drop 68mm 68mm 68mm
Wheel Base 1197mm 1206mm 1204mm
Head Tube Length 205mm 235mm 235mm
Stand Over 700mm 734mm 738mm
Stack Height N/A N/A N/A
Reach 390mm 395mm 400mm
Axle to Crown 498mm 498mm 498mm
Fork Offset 45mm 45mm 45mm

Size Guide:

Size CM
S 160 - 172 cm
M 170 - 182 cm
L 180 - 190 cm
