Haro Escondido 1 Belt Drive 29 - Semi-Gloss Cobalt Blue-White
Haro Escondido 1 Belt Drive 29 - Semi-Gloss Cobalt Blue-White
Product ID: GM071625-15
Only 1 Items Left
Shop all Haro | Shop all Electric Commuter&Leisure Bikes
View full detailsDescription
Haro Escondido 1 29"
Do you want to travel further, faster, and with even more comfort?
Then the Escondido 1 is exactly the bike for you. Designed for those who value more power, longer range, and a particularly low-maintenance riding experience, whether for everyday use or touring.

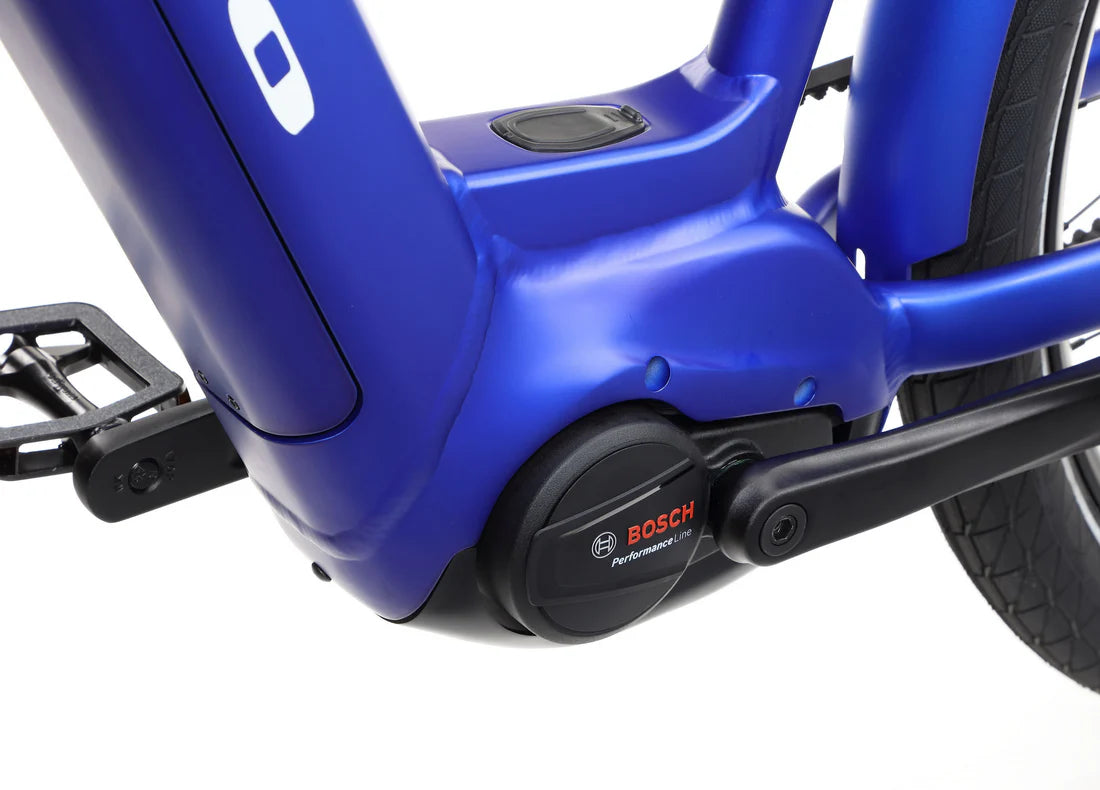

At the heart of the Escondido 1 is the Bosch Performance Line motor – powerful, quiet, and perfectly tuned for sporty rides or longer commutes. Combined with the large 625 Wh battery, it reliably gets you through the day with a range of up to 110 km .
Simply hop on and ride:

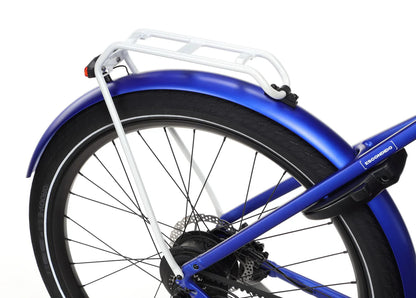

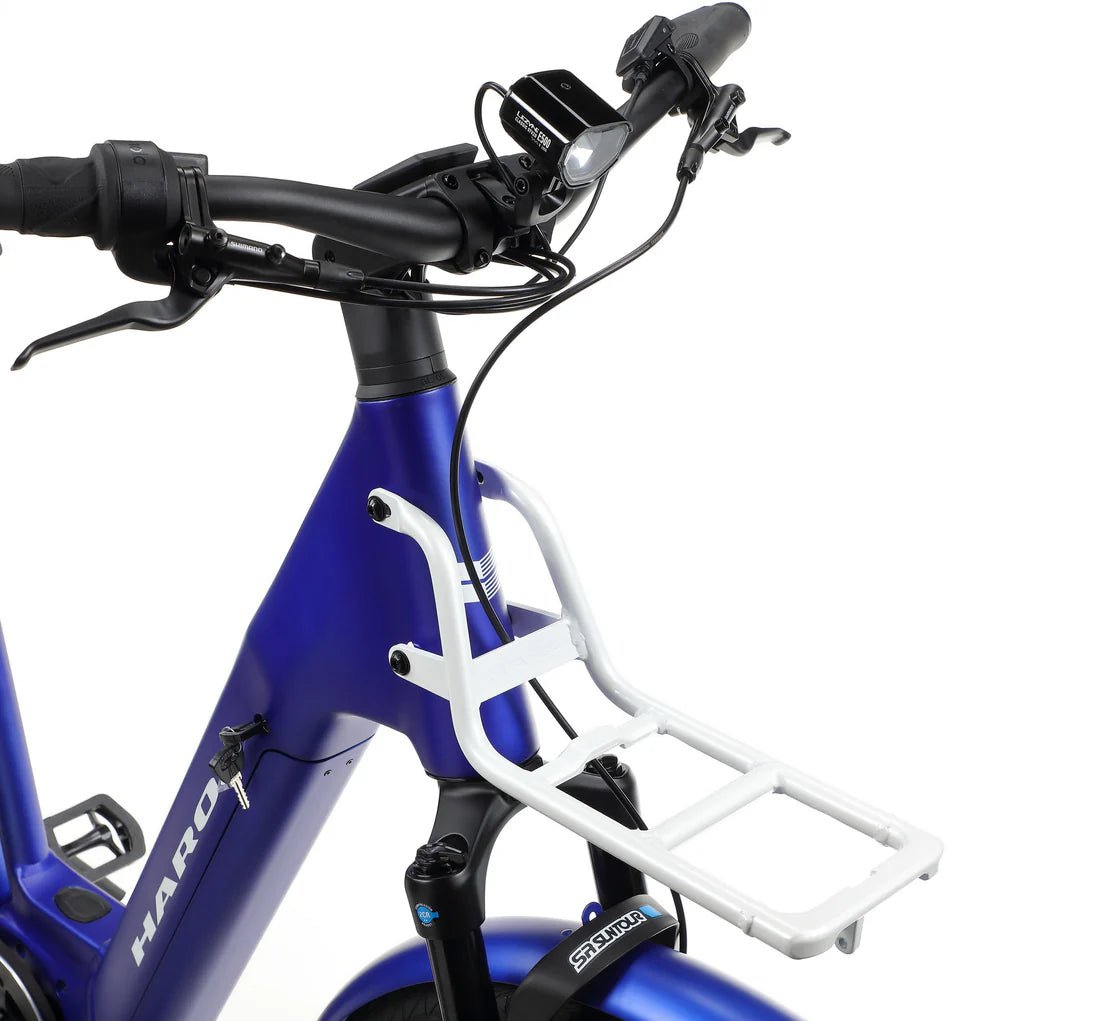

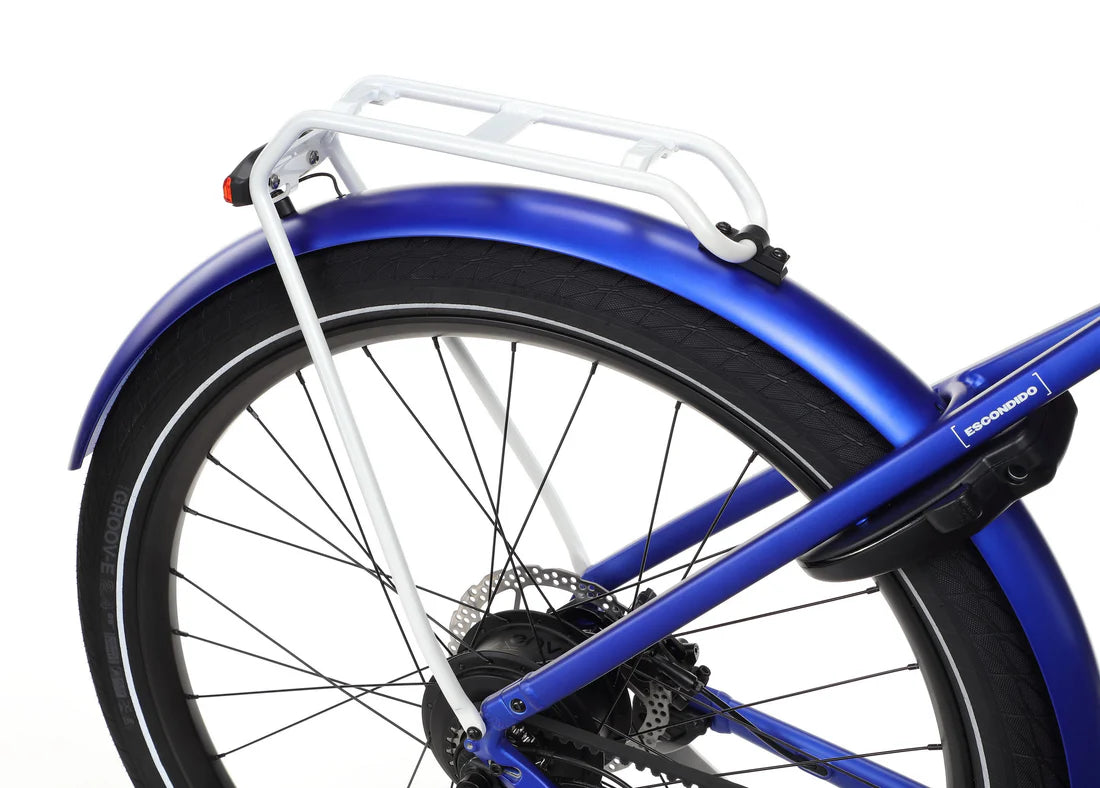

The low step-through makes getting on and off particularly comfortable – even with luggage. And this is where the Escondido 1 really shines: The integrated Atran Velo luggage rack system allows you to easily and securely attach bags, baskets, or other attachments – without the hassle of lashing them down. Whether shopping, everyday office life, or a weekend getaway – the bike adapts to your lifestyle.
And now things get really smart:

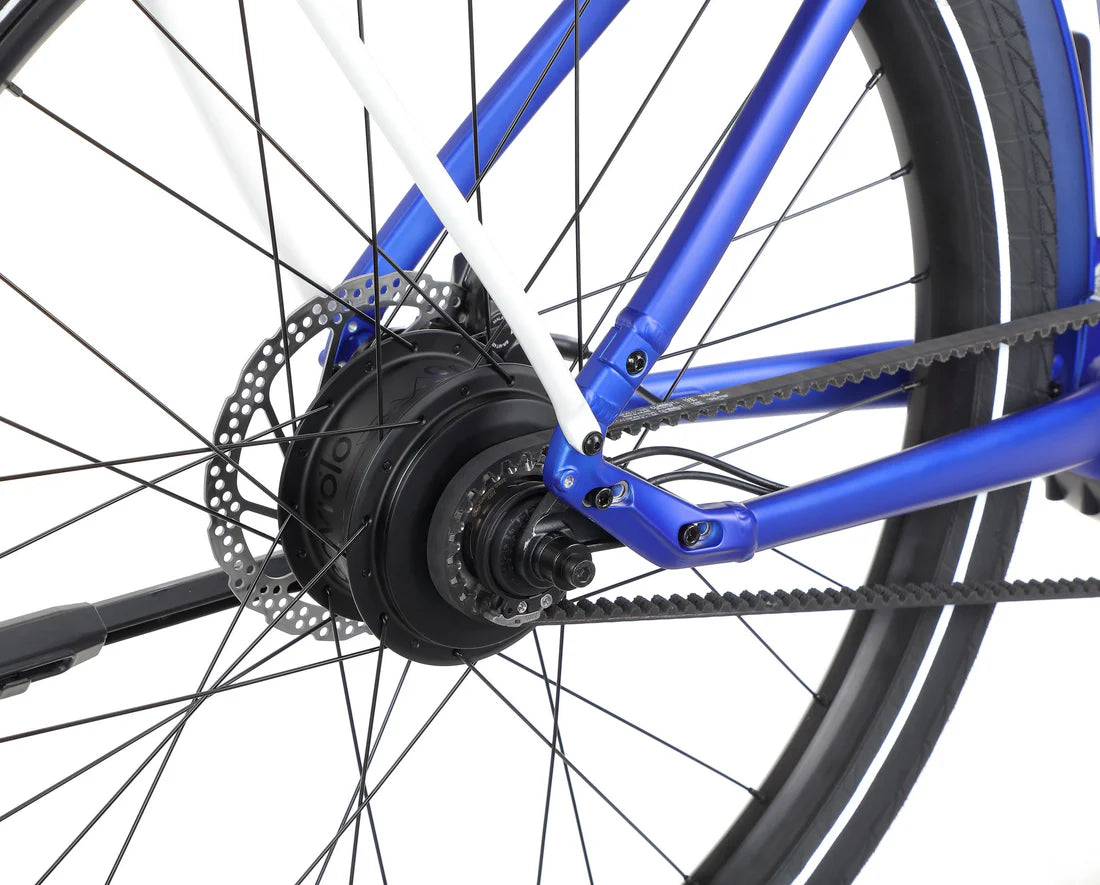

The Escondido 1 is equipped with the maintenance-free Gates belt drive and an Enviolo hub gear with continuously variable transmission . You shift gears smoothly – while stationary, while riding, uphill, or downhill – without any harsh gear changes or chain rattle. Simple, quiet, and clean.
Features:
- Alloy E-Commuter Frame for Bosch PowerTube
- Bosch Performance Line Gen 3, 65 Nm
- Bosch PowerTube 625 Wh

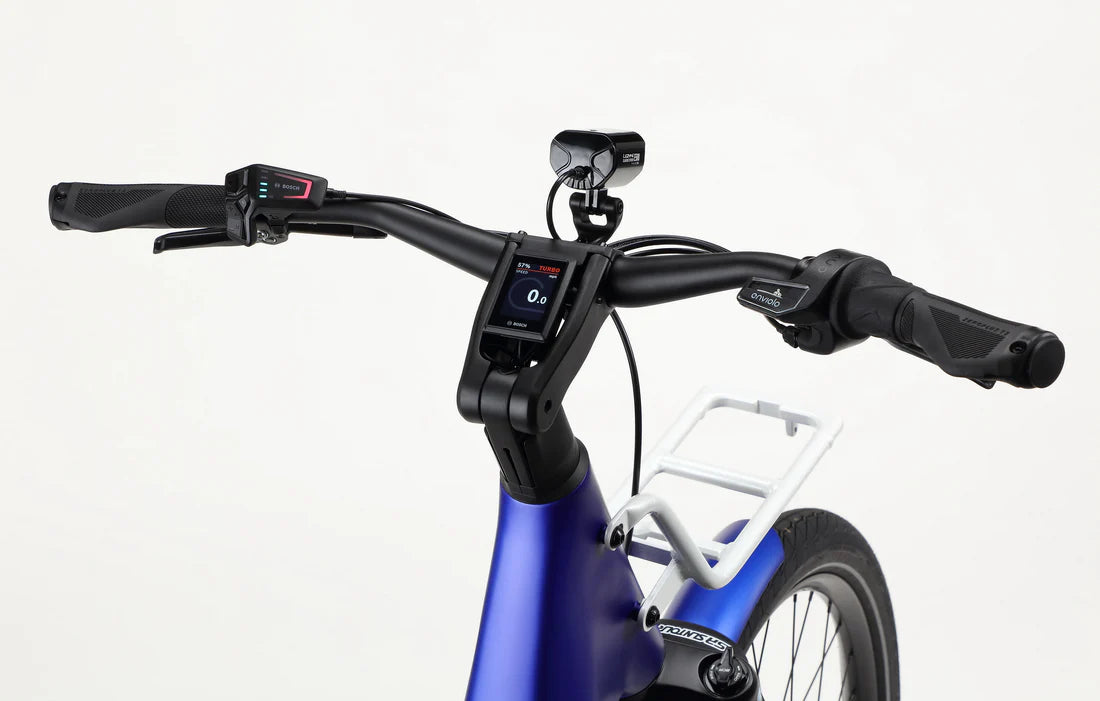

- Bosch Kiosk Display 300
- Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light.
- SR Suntour Mobie 34 Boost, 110 × 15 mm thru axle, 80 mm travel, Air EQ Adjust, 2CR
- Enviolo Trekking 380% gear range, 148 mm modular thru axle
- Shimano BL-4100
- A-Rim POM 30, 32H, pinned
- Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy
- Selle Royal Essenza Moderate saddle
- Aluminum Icor adjustable suspension seatpost, 350 mm, size L
Specifications:
Frame | Alloy E-Commuter Frame for Bosch PowerTube |
---|---|
Fork | SR Suntour Mobie 34 Boost, 110 × 15 mm thru axle, 80 mm travel, Air EQ Adjust, 2CR |
Colors | Oxford Green, Cobalt Blue |
Weight | 27.2 kg |
E COMPONENTS | |
Motor | Bosch Performance Line Gen 3, 65 Nm |
Battery | Bosch PowerTube 625 Wh |
Display | Bosch Kiosk Display 300 |
Remote | Bosch Mini Remote |
Lights | Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light. |
DRIVETRAIN | |
Cranks | Samox forged aluminum crankset, 170 mm with Gates CDC 50T sprocket |
Pedals | Wellgo alloy platform pedals with sandpaper top |
Chain | Gates CDC belt drive |
Bottom Bracket | *Sea motor |
Front derailleur | - |
Rear Derailleur | Enviolo Trekking 380% gear range, 148 mm modular thru axle |
Derailleur Shifter | - |
Freewheel/Cassette | - |
WHEELS | |
Tires | WTB E-Groove 29 × 2.4" tires |
Wheels/Rim | A-Rim POM 30, 32H, pinned |
BRAKING SYSTEM | |
Brakes | Shimano BL-4100 4 Piston, 180mm front rotor, 160mm rear rotor, center lock |
Brake levers | Shimano BL-4100 |
OTHER COMPONENTS | |
Grips/Tape | DDK Ergo grips with PC lock ring |
Handlebar | Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy |
Stem | Satori Catamaran stem, 95 mm extension, 70 mm reach, 0°–90° angle adjustment, Integrated Bosch Kiosk display mount |
Headset | Across AZX-589 R2 headset, semi-integrated, designed for internal cable routing |
Saddle | Selle Royal Essenza Moderate saddle |
Seat Post | Aluminum Icor adjustable suspension seatpost, 350 mm, size L |
Seat Clamp | Quick release seat clamp |
Extras | Front and rear Atran Velo-compatible racks |
Geometry:
SIZE | SMALL | MEDIUM | LARGE |
---|---|---|---|
Front Wheel Size | 29" | 29" | 29" |
Rear Wheel Size | 29" | 29" | 29" |
Seat Tube | 470mm | 510mm | 550mm |
Top Tube Effective | 604mm | 620.9mm | 625.9mm |
Head Tube Angle | 69˚ | 69˚ | 69˚ |
Seat Tube Angle | 65.2˚ | 65.2˚ | 65.2˚ |
Chain Stay / RC Length | 503.6mm | 503.6mm | 503.6mm |
BB Drop | 68mm | 68mm | 68mm |
Wheel Base | 1197mm | 1206mm | 1204mm |
Head Tube Length | 205mm | 235mm | 235mm |
Stand Over | 700mm | 734mm | 738mm |
Stack Height | N/A | N/A | N/A |
Reach | 390mm | 395mm | 400mm |
Axle to Crown | 498mm | 498mm | 498mm |
Fork Offset | 45mm | 45mm | 45mm |
Size Guide:
Size | CM |
---|---|
S | 160 - 172 cm |
M | 170 - 182 cm |
L | 180 - 190 cm |
