Haro Escondido 2 29 - Gloss Oxford Green-Orange

Haro Escondido 2 29 - Gloss Oxford Green-Orange

Regular price $3,999.00
Sale price $3,999.00
Color
Size

Product ID: GM071625-06

Earn rewards points on this item / Join Now

Only 5 Items Left



Shop all Haro   |   Shop all Electric Commuter&Leisure Bikes

View full details

Description

Haro Escondido 2 29"

Meet the Escondido 2 – your new companion for commuting, shopping, or simply cruising. Designed with practicality, comfort, and a clean design in mind, this e-bike delivers a smoother, easier, and significantly more enjoyable ride.

Thanks to its low step-through frame, getting on and off is a breeze – even when the extremely stable Atran Velo system racks are fully loaded. Whether you're carrying groceries, toting your laptop bag, or leisurely rolling home after a visit to the beer garden – this bike adapts to your lifestyle.

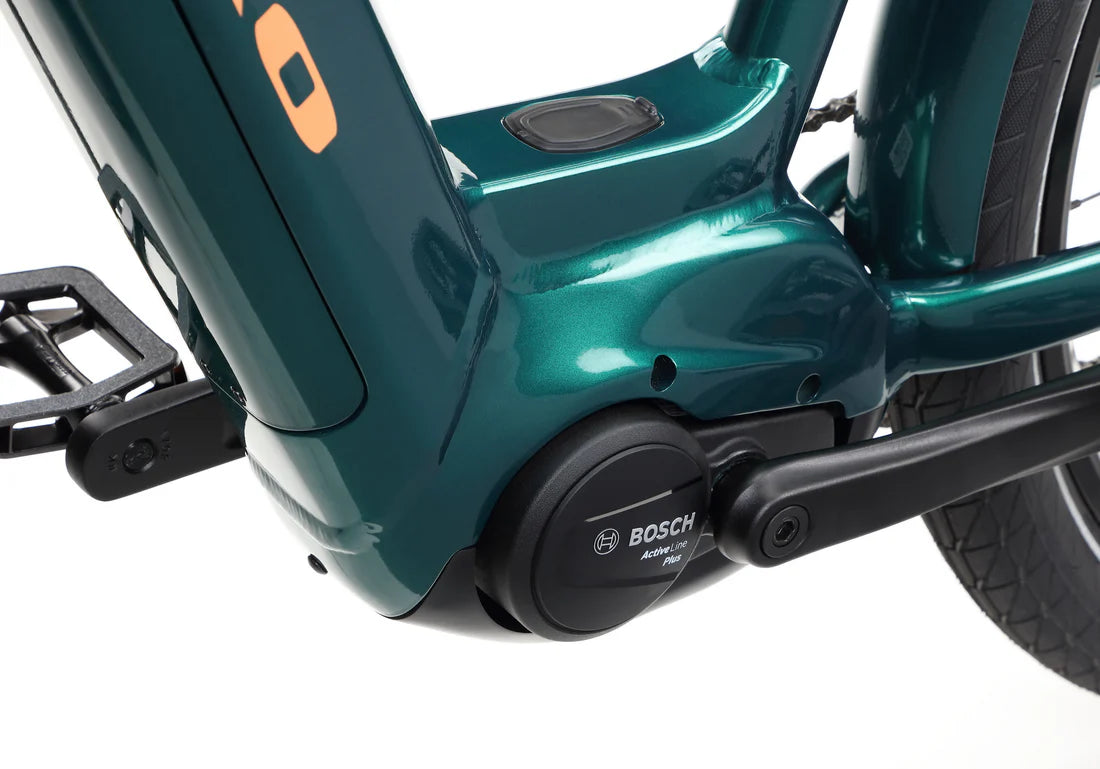

At the heart of the Escondido 2 is the Bosch Active Line Plus motor , which provides smooth, quiet assistance with just the right torque for city riding and easy touring. Combined with a 500 Wh battery, it delivers enough range (up to 110 km ) to get you through your day—and then some.

Shimano's hydraulic disc brakes provide precise stopping power in all weather conditions. Simple, intuitive, and reliable—just like the rest of the bike.

Features:

  • Alloy E-Commuter Frame for Bosch PowerTube Frame
  • Bosch Active Line Plus Gen 3, 40 Nm motor
  • Bosch PowerTube 500 Wh Battery
  • Bosch Display Kiosk 300 Display
  • Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light. Lights
  • SR Suntour Mobie A32 Coil DS; tapered steerer tube, 110 × 15 mm thru axle fork
  • Shimano ESSA 8-speed REAR DERAILLEUR
  • Shimano BL-MT200 brake levers BRAKE LEVERS
  • Alloy double wall pinned rim I31 Wheels/Rim
  • Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy HANDLEBAR
  • Selle Royal Essenza Moderate saddle SADDLE
  • Aluminum Icor adjustable suspension seatpost, 350 mm, size L SEAT POST

Specifications:

Frame -
Fork SR Suntour Mobie A32 Coil DS; tapered steerer tube, 110 × 15 mm thru axle
Colors Oxford Green, Cobalt Blue
Weight 27.2 kg
E COMPONENTS
Motor Bosch Active Line Plus Gen 3, 40 Nm
Battery Bosch PowerTube 500 Wh
Display Bosch Display Kiosk 300
Remote Bosch Mini Remote
Lights Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light.
DRIVETRAIN
Cranks Samox forged aluminum 170 mm with 32T sprocket
Pedals Wellgo alloy platform pedals with sandpaper top
Chain KMC X8
Bottom Bracket *Sea motor
Front derailleur -

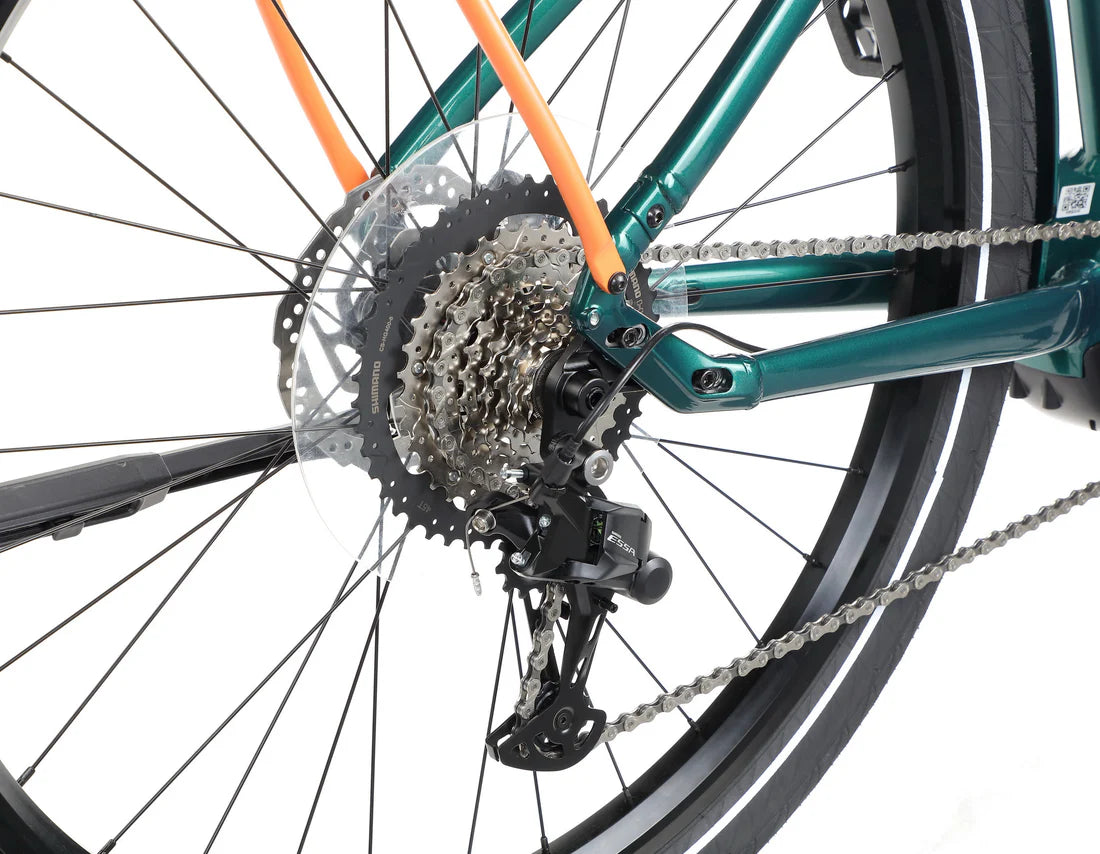

Rear Derailleur Shimano ESSA 8-speed
Derailleur Shifter -
Freewheel/Cassette -
WHEELS
Tires WTB E-Groove 29 × 2.4"
Wheels/Rim Alloy double wall pinned rim I31
BRAKING SYSTEM
Brakes Shimano BL-MT200, 2-piston hydraulic disc brakes, 180 mm front rotor, 160 mm rear rotor, Center Lock mounting
Brake levers Shimano BL-MT200 brake levers
OTHER COMPONENTS
Grips/Tape DDK Ergo grips with PC lock ring
Handlebar Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy
Stem Satori Catamaran stem, 95 mm extension, 70 mm reach, 0°–90° angle adjustment, Integrated Bosch Kiosk display mount
Headset Across AZX-589 R2 headset, semi-integrated, designed for internal cable routing
Saddle Selle Royal Essenza Moderate saddle
Seat Post Aluminum Icor adjustable suspension seatpost, 350 mm, size L
Seat Clamp Quick release seat clamp
Extras Front and rear Atran Velo-compatible racks

Geometry:

SIZE SMALL MEDIUM LARGE
Front Wheel Size 29" 29" 29"
Rear Wheel Size 29" 29" 29"
Seat Tube 470mm 510mm 550mm
Top Tube Effective 604mm 620.9mm 625.9mm
Head Tube Angle 69˚ 69˚ 69˚
Seat Tube Angle 65.2˚ 65.2˚ 65.2˚
Chain Stay / RC Length 503.6mm 503.6mm 503.6mm
BB Drop 68mm 68mm 68mm
Wheel Base 1197mm 1206mm 1204mm
Head Tube Length 205mm 235mm 235mm
Stand Over 700mm 734mm 738mm
Stack Height N/A N/A N/A
Reach 390mm 395mm 400mm
Axle to Crown 498mm 498mm 498mm
Fork Offset 45mm 45mm 45mm

Size Guide:

Size CM
S 160 - 172 cm
M 170 - 182 cm
L 180 - 190 cm
