Haro Rivette Carbon 2 700c - Matte Black-Teal

Haro Rivette Carbon 2 700c - Matte Black-Teal

Regular price $3,499.99
Sale price $3,499.99 Was $5,499.99 Save $2,000.00
Color
Size

Product ID: GM071425-372

Earn rewards points on this item / Join Now

Only 2 Items Left



Shop all Haro   |   Shop all Road Bikes

View full details

Description

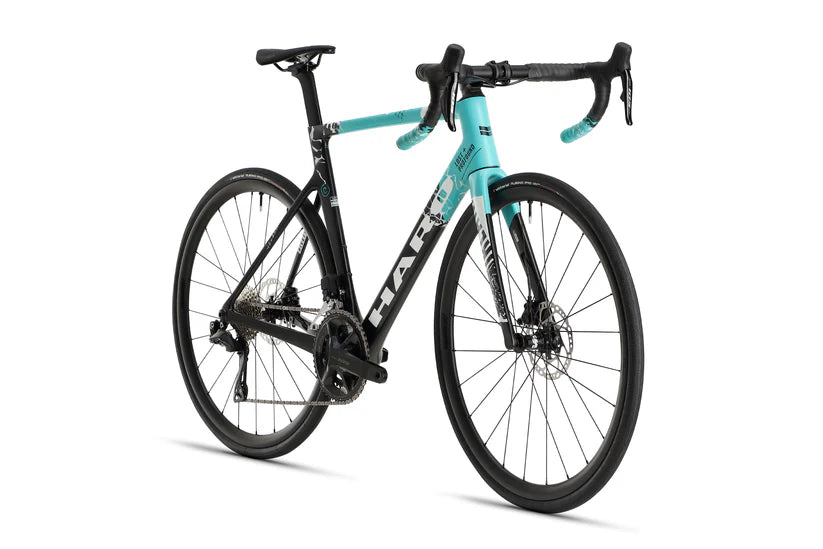

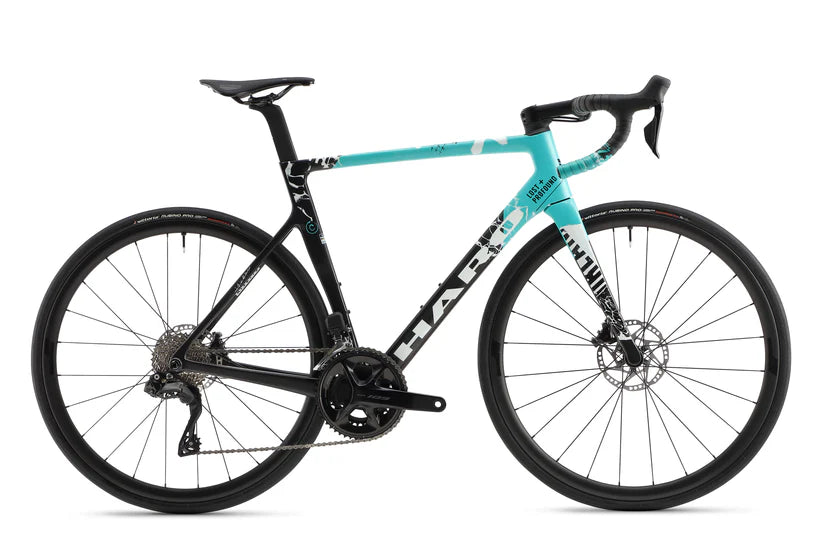

Haro Rivette Carbon 2 700c

Who says you can't have it all (in a road bike)? The Rivette is our race-ready all-arounder, meticulously crafted from a mix of high-pitch carbon fiber in custom size-specific layups for an unmatched blend of unwavering stiffness and feathery weight. The Rivette's stiff headtube delivers precise steering for razor-sharp cornering and control. Aero tube shapes and fully internal cable routing create clean lines and reduce drag, ensuring every watt translates to pure speed. And with a short rear end for explosive acceleration, the Rivette's geometry is fine-tuned to let you conquer climbs, attack descents and carve through corners at race pace. Feel the road disappear beneath you as you push your limits and chase the podium on the Rivette. The most affordable of the Rivette carbon family, the Carbon 2 ticks all the boxes for a performance road bike. With a 105 Di2 electronic groupset and internal cable routing for a clean cockpit, it has everything you need to roll up to the start line.

Features:

  • UCI-certified carbon frame and fork with tapered steerer tube in custom size-specific carbon layups. Designed to work exclusively with electronic groupsets.
  • Shimano 105 Di2 with size-specific crank lengths.
  • Shimano 105 hydraulic disc brakes with 160mm rotors.
  • Vision Carbon SC30 AGX tubeless clincher wheelset. Valves, tape and sealant included.
  • Vittoria Rubino Pro IV tires, 70x30c. *Max tire width 700x36c.
  • Headset for internal cable routing, and size-specific bar width and stem length.
  • Custom bar tape to match frame graphics.
  • Designed around a Universal Derailleur Hanger (UDH)

Specifications:

Frame Haro Rivette Carbon Frame
Fork Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer
Colors Matte Black / Teal, Gloss Rose / Gold
Weight 17.19 lbs 7.79 kg, (56cm)
DRIVETRAIN

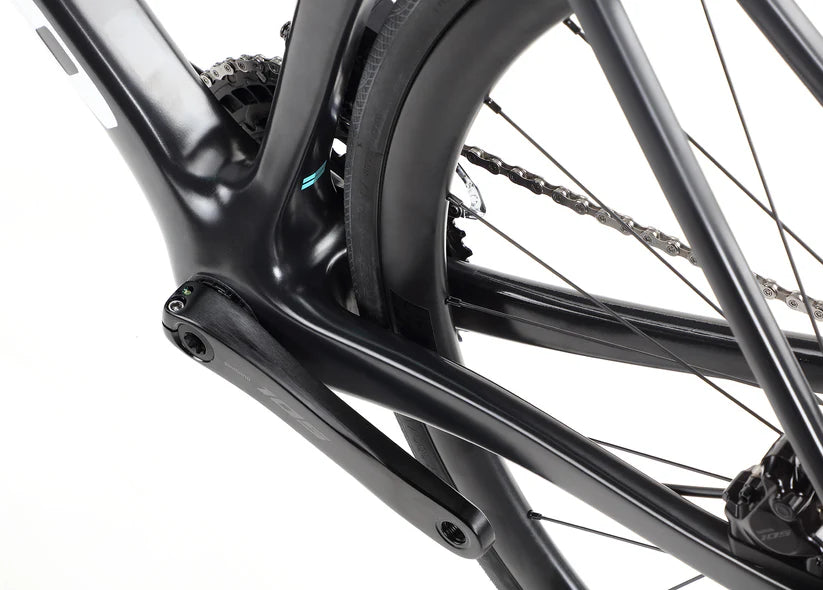

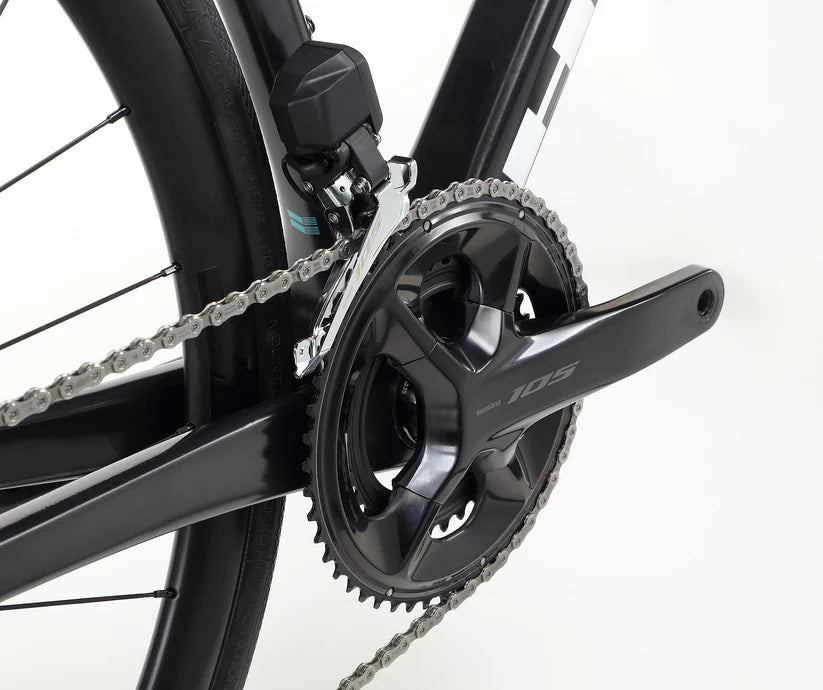

Cranks Shimano 105 FC-R7100, 50-34T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Pedals
Chain Shimano HG-12spd, CN-M7100
Bottom Bracket Shimano BB-RS501 BSA

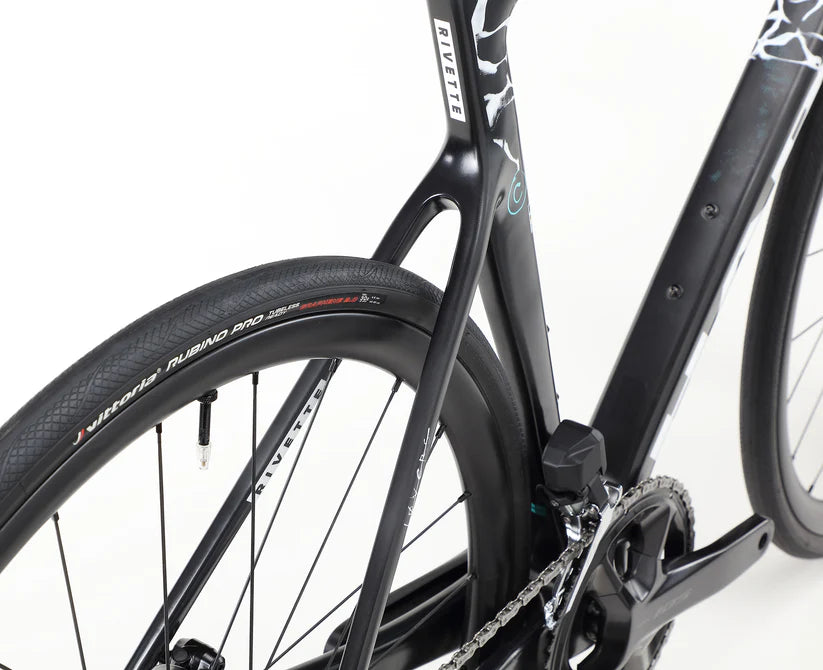

Front Derailleur Shimano 105 Di2, FD-R7150, Braze On

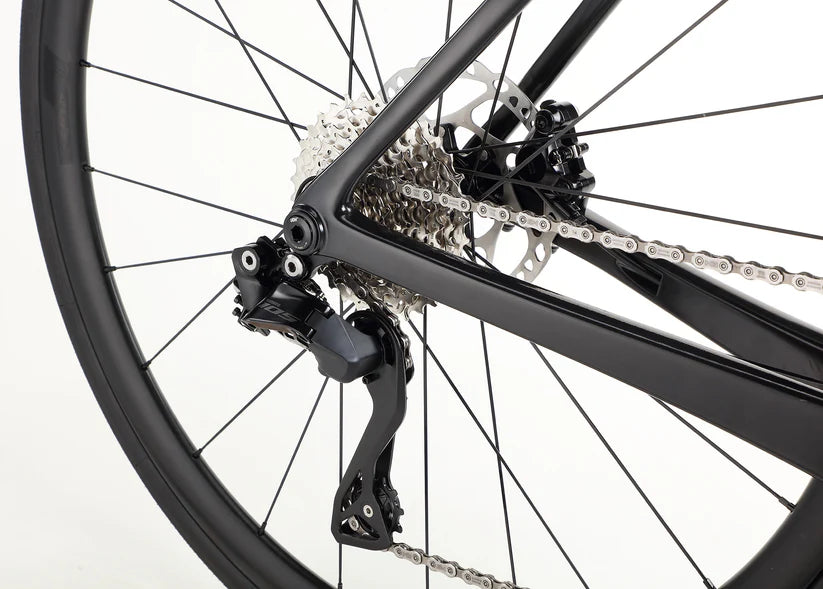

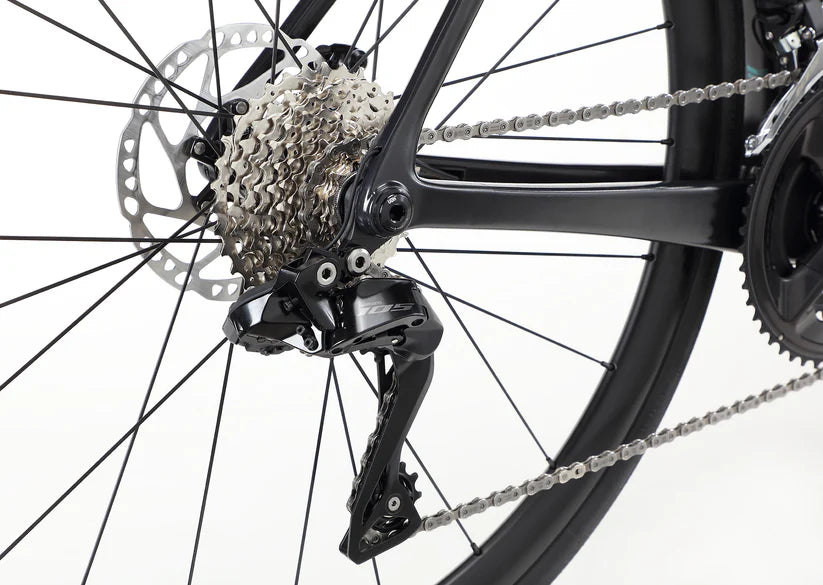

Rear Derailleur Shimano 105 Di2 12 spd, RD-R7150
Derailleur Shifter Shimano 105 Di2 12spd, ST-R7170
Freewheel/Cassette Shimano 105 12spd, 11-34T
WHEELS
Tires Vittoria Rubino Pro IV 30-622 TLR 70x30c
Wheels/Rims Vision Carbon SC30 AGX Tubeless Clincher
BRAKING SYSTEM

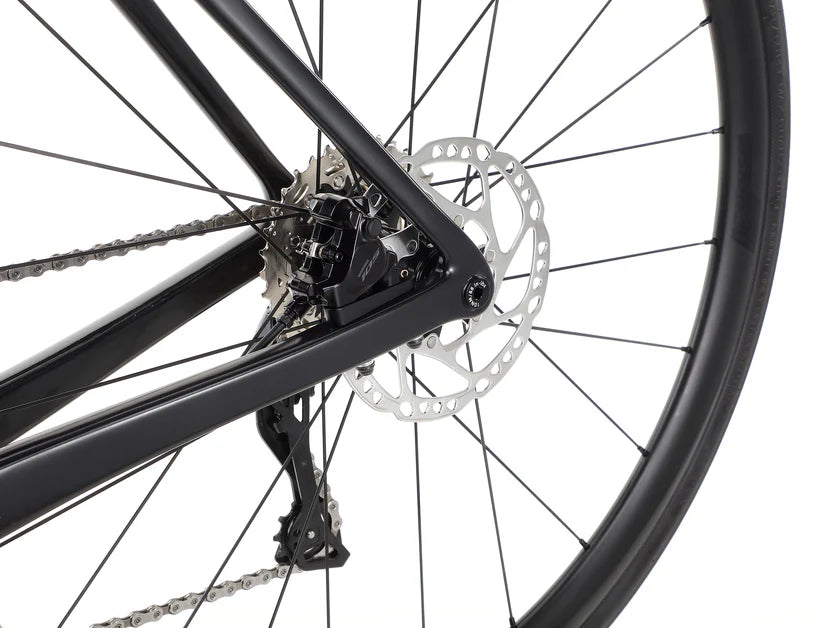

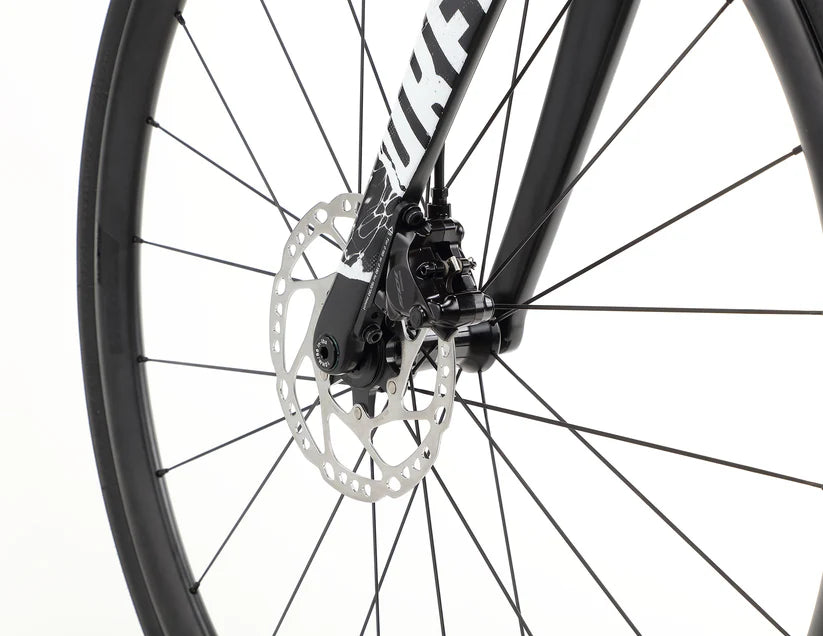

Brakes Shimano 105 Hydraulic Disc Brakes with 160mm Center Lock Rotors

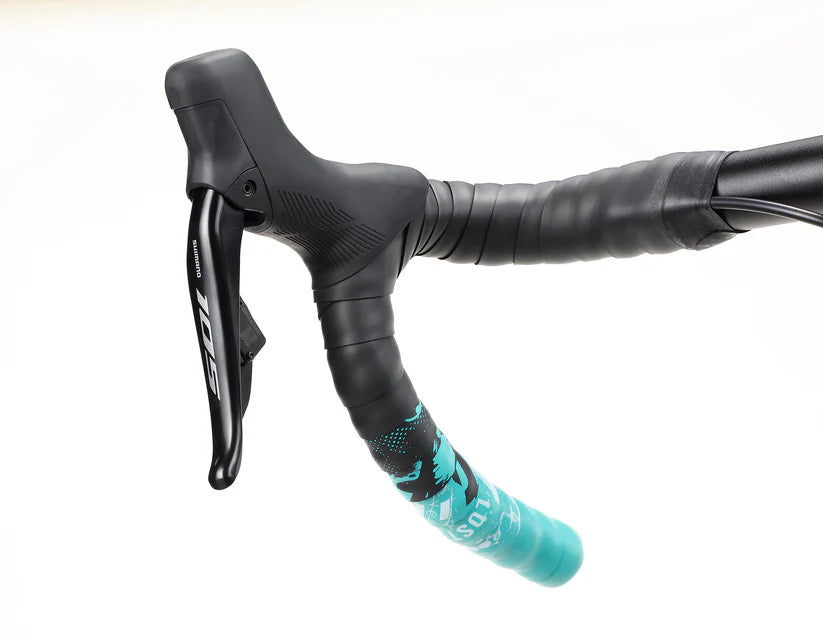

Brake Levers Shimano 105 Di2
OTHER COMPONENTS
Grips/Tape Ciclovation Advanced, Leather touch, 3mm Thick
Handlebar BLKTEC AL6061-T6; 74mm 121mm drop; 48cm, 38cm; 51cm, 38cm; 54cm, 40cm; 56cm, 40cm; 58cm;42cm; 61cm, 42cm
Stem BLKTEC 3D forged 6061-T6; -7°, ø31.8; 48cm, 90mm; 51cm, 100mm; 54cm, 100mm; 56cm, 110mm; 58cm, 110mm; 61cm, 120mm
Headset Token A-Box Headset with internal cable routing

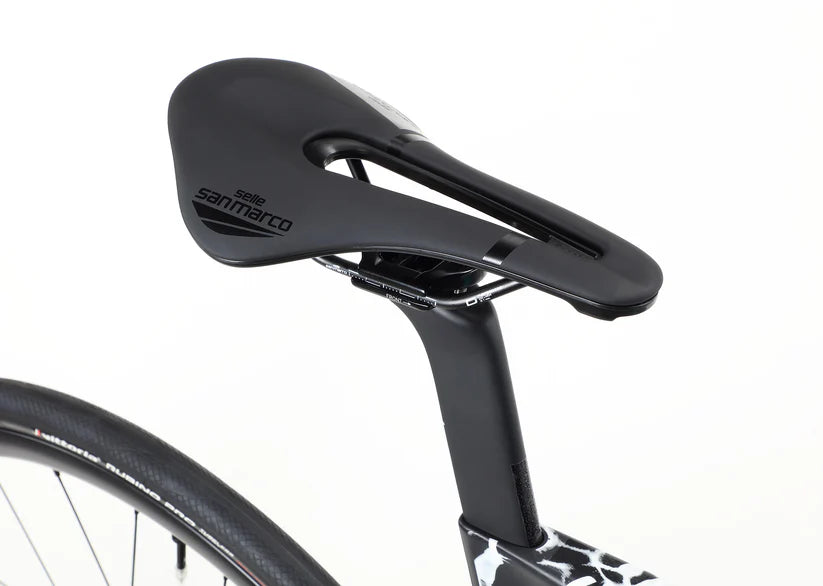

Saddle Selle San Marco Shortfit 2.0 Open-Fit Manganese rails
Seat Post Haro Rivette Carbon Aero; 275mm for 48/51/54 375mm for 56/58/61

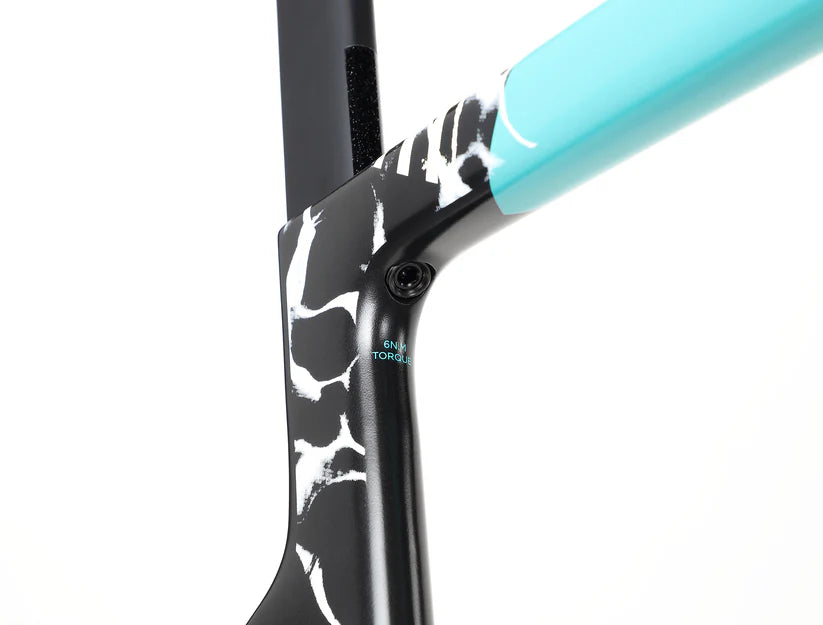

Seat Clamp Internal
Extras Includes Tubeless Valves, Tape and Sealant

Geometry:

SIZE 48 51 54 56 58 61
Top Tube (Effective) 518mm 533mm 549mm 565mm 581mm 605mm
Seat Tube (C-T) 430mm 470mm 510mm 536mm 558mm 590mm
Stack Height 513mm 533mm 553mm 574mm 594mm 624mm
Reach 374mm 383mm 387mm 393mm 398mm 406mm
Standover 721mm 753mm 786mm 809mm 832mm 862mm
Head Tube Length 110mm 130mm 153mm 164mm 188mm 220mm
Head Angle 70.9° 71.2° 71.2° 73° 73° 73°
Seat Angle 74.6° 74.3° 74.3° 73.3° 72.9° 72.3°
Wheel Base 983mm 997mm 1009mm 995mm 1008mm 1025mm
Chainstay 408mm 408mm 408mm 408mm 408mm 408mm
BB Drop 74mm 74mm 72mm 72mm 69mm 69mm
Axle to Crown 376mm 376mm 376mm 376mm 376mm 376mm
Fork Offset 53mm 53mm 53mm 45mm 45mm 45mm
Stem Length 90mm 100mm 100mm 110mm 110mm 120mm
Bar Width 380mm 380mm 400mm 400mm 420mm 420mm
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm 175mm
Trail 62.7mm 60.4mm 60.7mm 57.8mm 57.8mm 57.8mm
Wheel Size 700c 700c 700c 700c 700c 700c

Sizing Guide:

Size Inches CM
48 5'1" - 5'4" 153 - 163
51 5'4" - 5'7" 163 - 170
54 5'7" - 5'9" 170 - 175
56 5'9" - 5'11" 175 - 180
58 5'11" - 6'2" 180 - 188
61 6'2" - 6'5" 188 - 196
