Haro Rivette Carbon LTD 700c - Gloss White-Electric Green Yellow

Haro Rivette Carbon LTD 700c - Gloss White-Electric Green Yellow

Regular price $10,999.99
Sale price $10,999.99
Color
Size

Product ID: GM071425-344

Earn rewards points on this item / Join Now
Out of stock


Shop all Haro   |   Shop all Road Bikes

View full details

Description

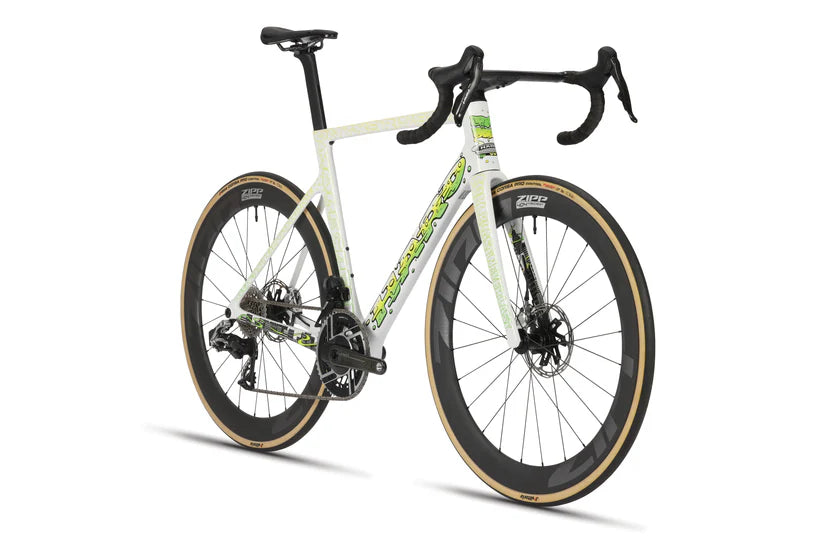

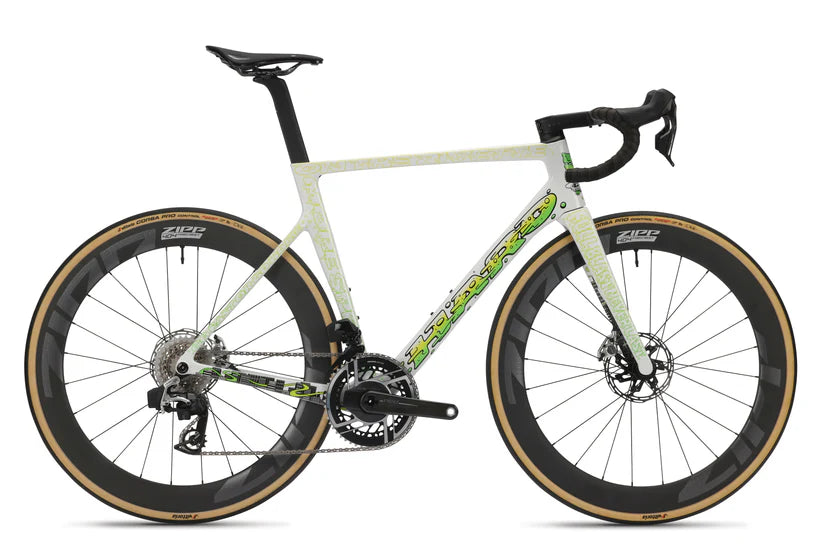

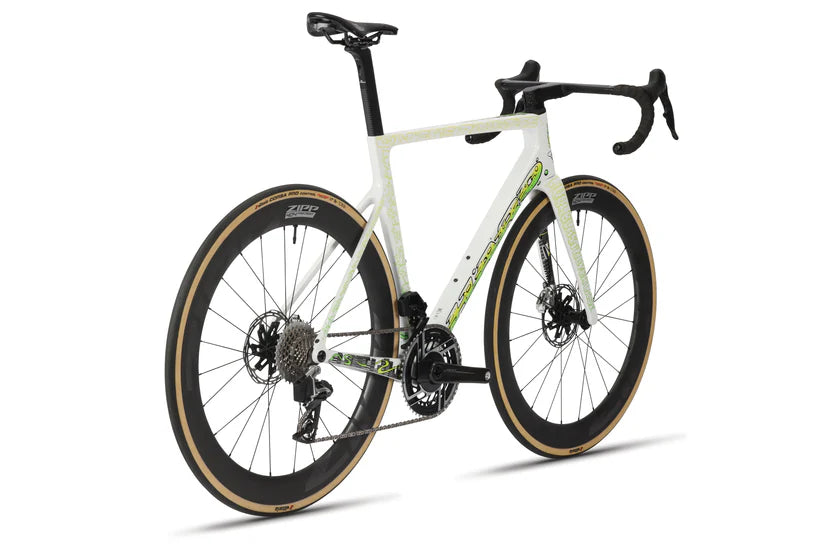

Haro Rivette Carbon LTD 700c

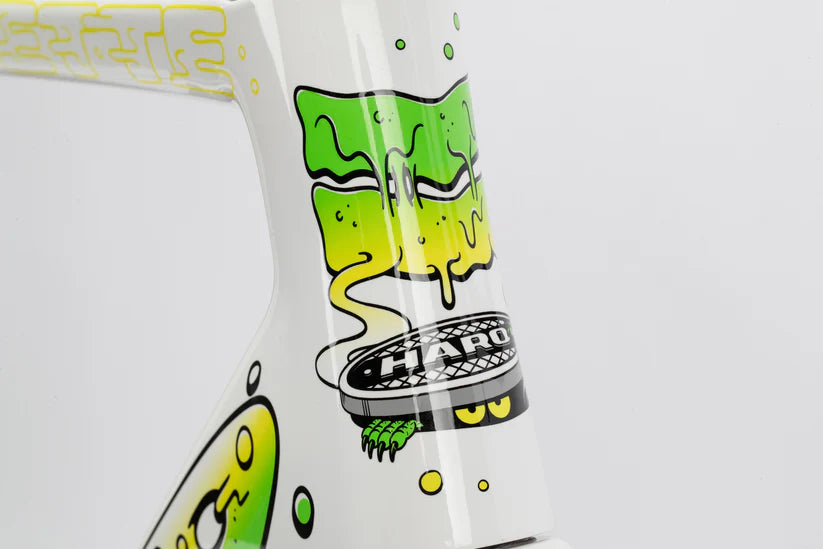

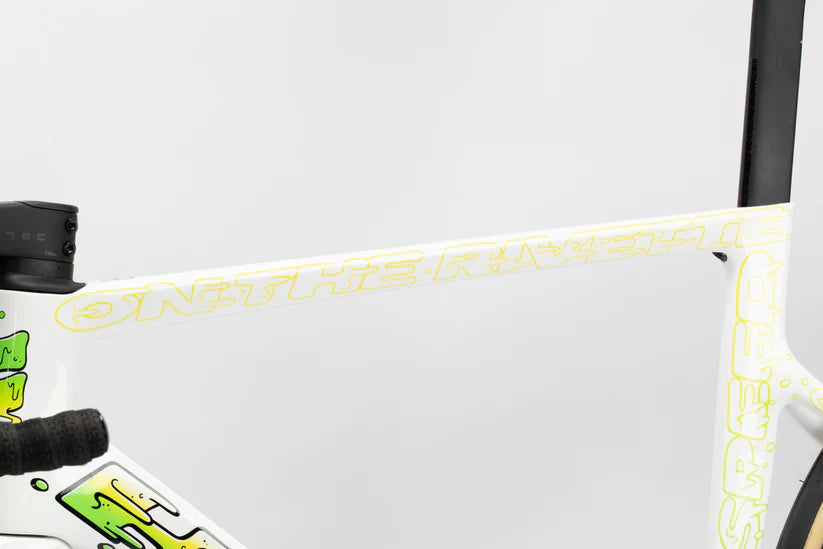

We've partnered with UK-based illustrator and animator Mark Ward on this Limited Edition Rivette, the first in our artist series. Fascinated by California culture and raised on a healthy diet of BMX and Saturday morning cartoons, Mark's vibrant work engages the viewer with his playful humor and surreal sun-kissed visuals. The Rivette's carbon fiber frame and fork is the perfect canvas to showcase Mark's art and this bike is built out to the fullest with SRAM Red AXS components, an integrated BLKTEC R8 bar/stem combo (with computer mount) and a ZIPP 404 Firecrest Carbon wheel set. These bikes are literal works of art and super limited--don't sleep or they'll be gone.

Features:

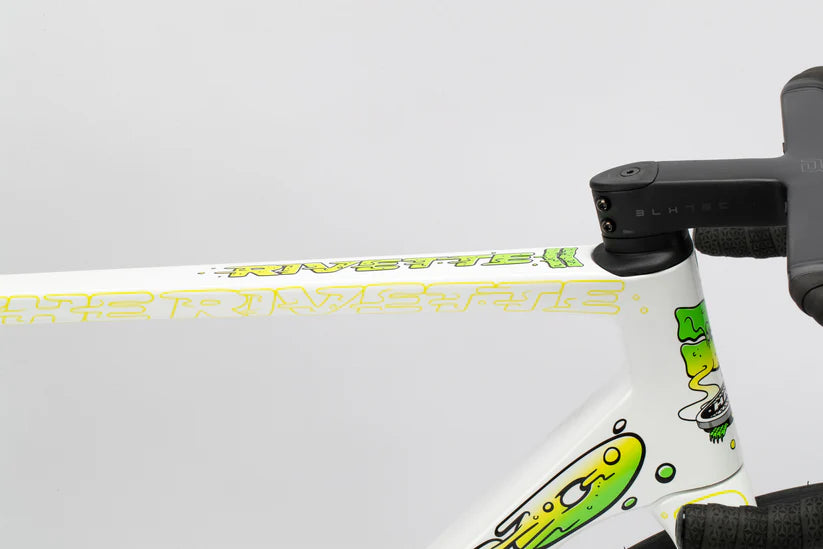

  • UCI-certified carbon frame and fork with tapered steerer tube in custom size-specific carbon layups. Designed to work exclusively with electronic groupsets.

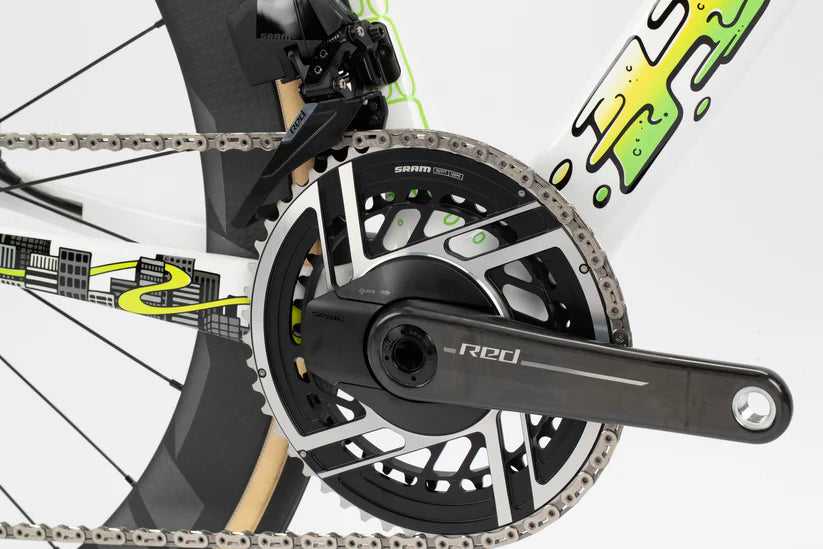

  • SRAM Red AXS Power Meter crank set; 12spd (scaled per frame size).
  • SRAM Paceline hydraulic disc brakes with 160mm rotors.

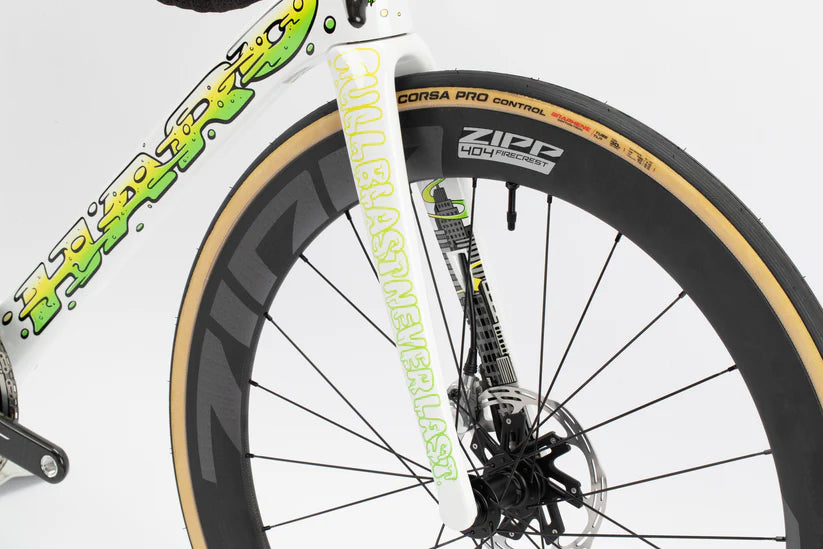

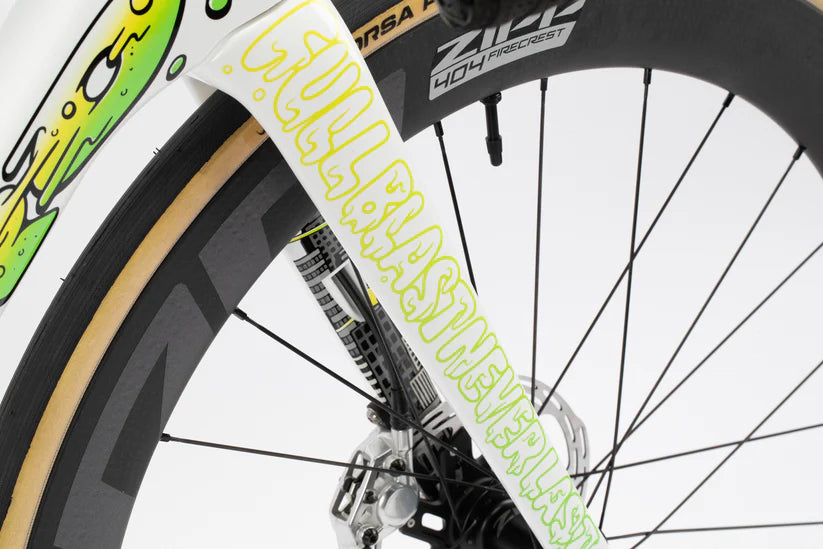

  • ZIPP 404 Firecrest Carbon tubless ready wheel set.
  • Vittoria Corsa Pro 30-622 fold TLR G2.0 700x30c
  • Headset for internal cable routing, and size-specific one-piece combined bar and stem.

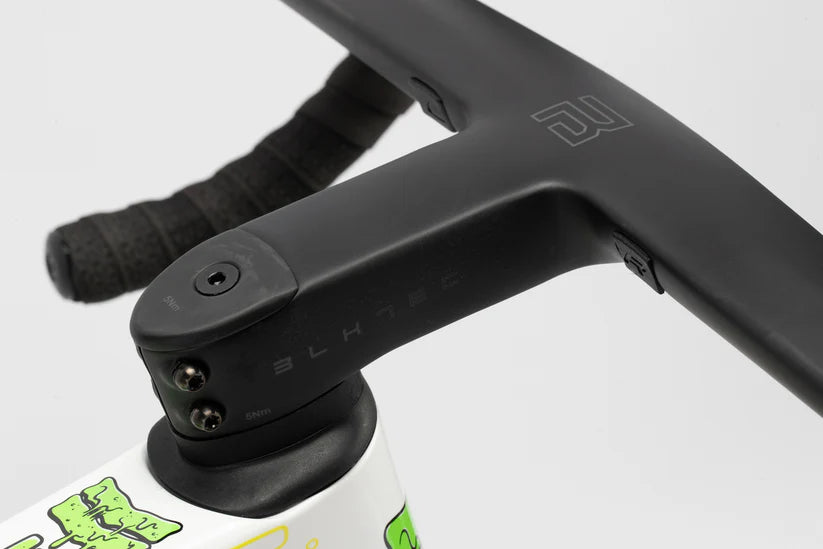

  • BLKTEC R8 Carbon Bar Stem Combo with computer mount
  • Designed around a Universal Derailleur Hanger (UDH)

Specifications:

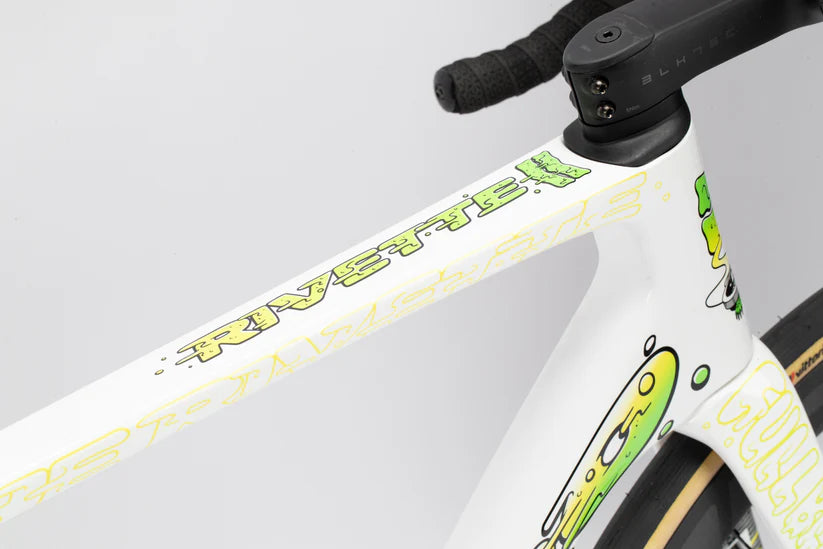

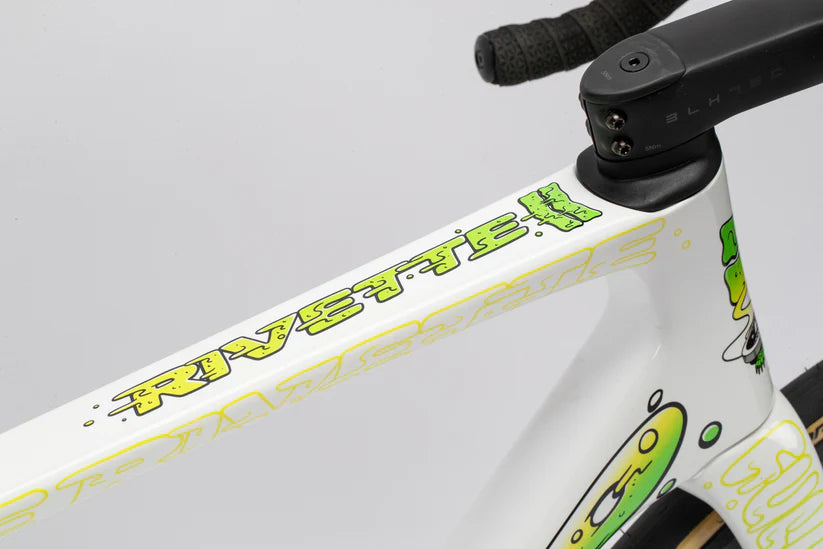

Frame Haro Rivette Carbon Frame
Fork Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer
Colors Gloss White / Electric Green Yellow
Weight 16.05 lbs 7.28 kg
DRIVETRAIN
Cranks SRAM Red AXS Power Meter crank set; 12spd; 48/35T; 45CL; DUB BB; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Pedals
Chain SRAM Red
Bottom Bracket SRAM Dub Ceramic T47 77-A road wide
Front Derailleur SRAM Red AXS

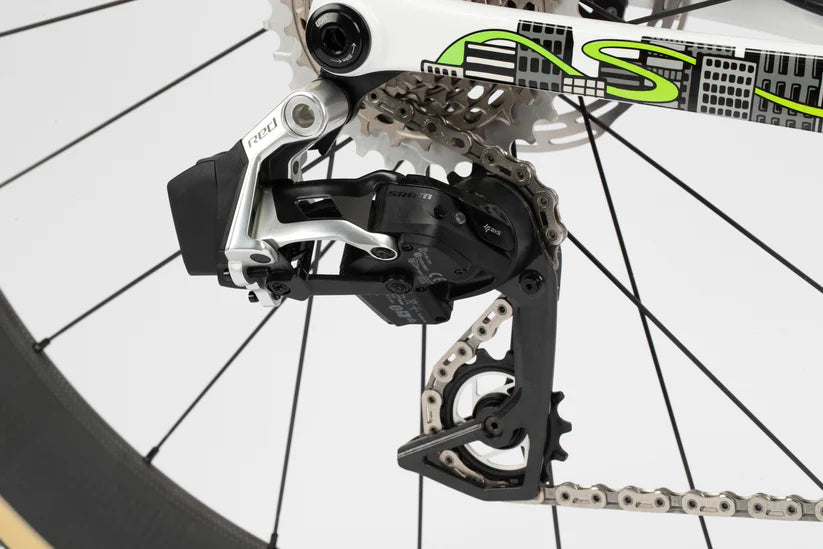

Rear Derailleur SRAM Red AXS
Derailleur Shifter SRAM Red AXS

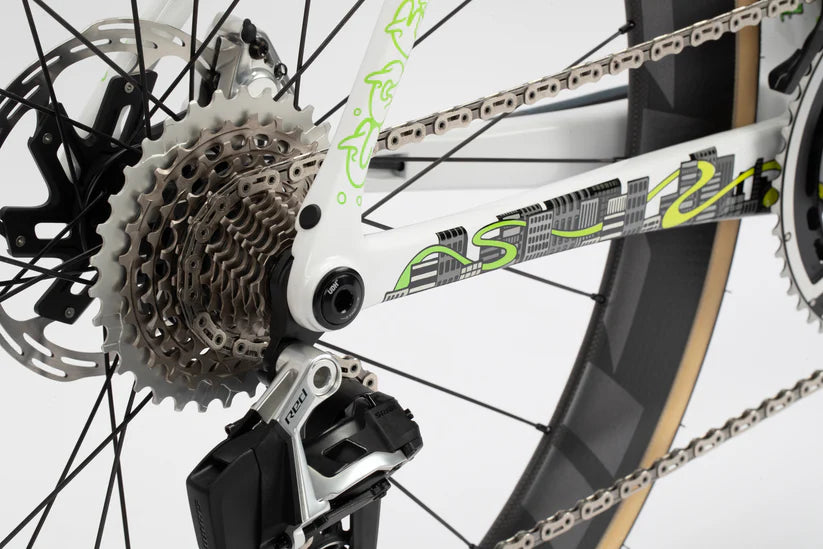

Freewheel/Cassette SRAM Red AXS, 10-33T
WHEELS
Tires Vittoria Corsa Pro 30-622 fold TLR G2.0 700x30c

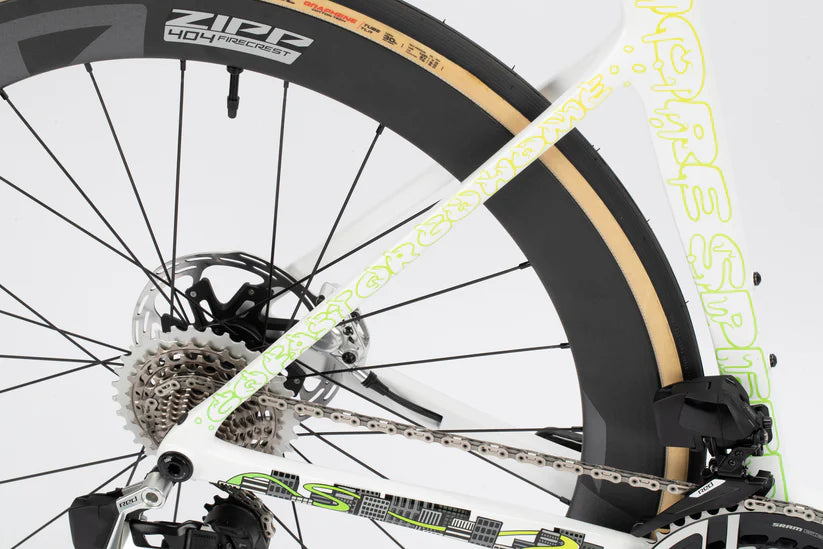

Wheels/Rims ZIPP 404 Firecrest Carbon Tubeless
BRAKING SYSTEM

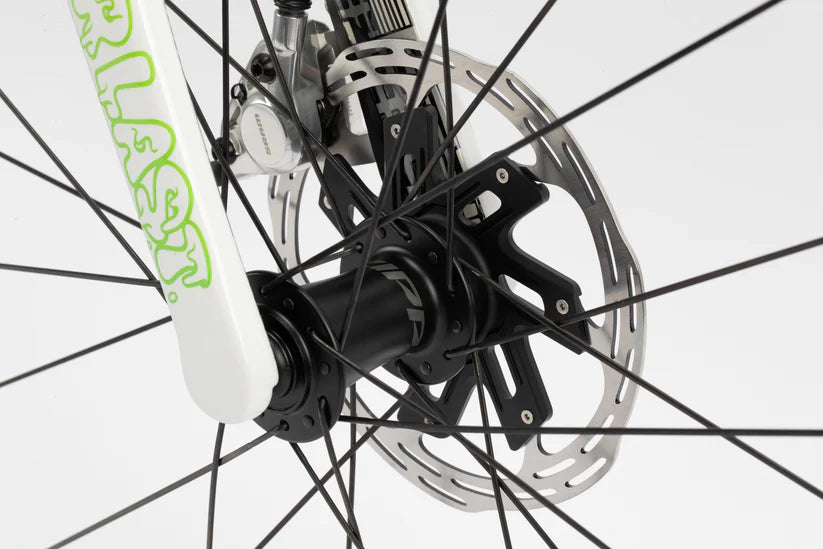

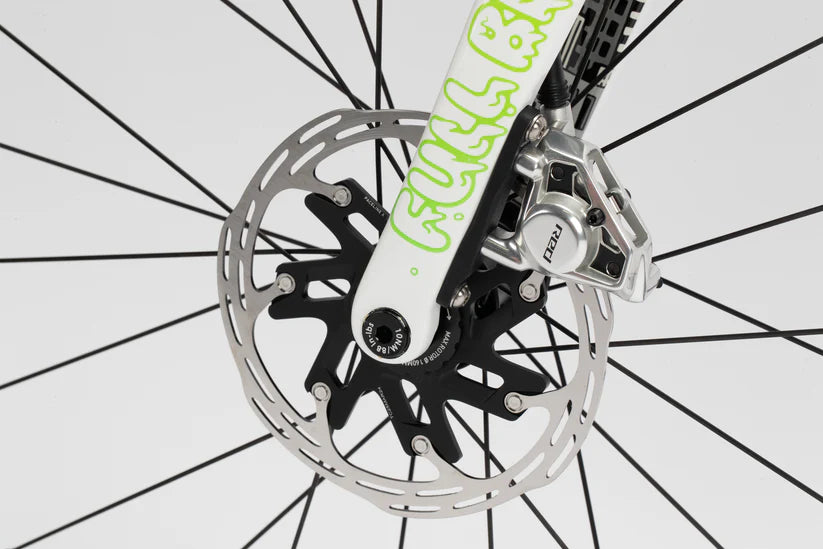

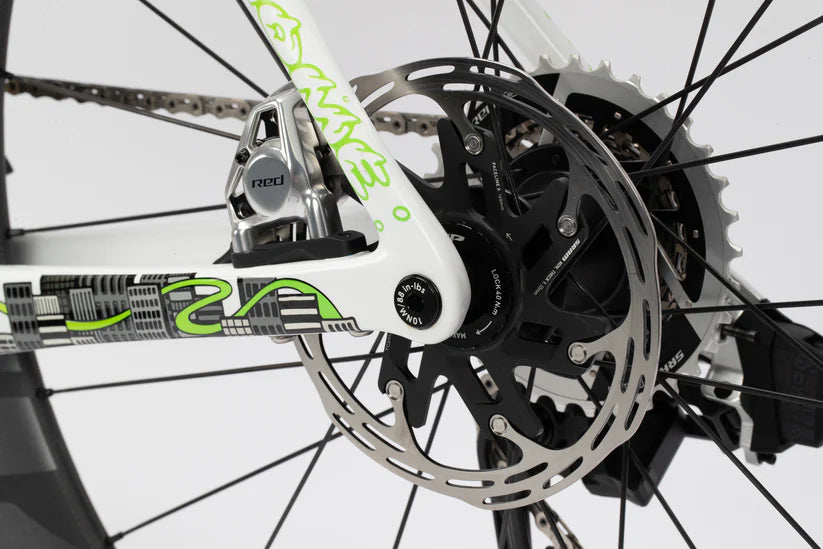

Brakes SRAM Paceline hydraulic disc with 160mm Center Lock rotors, front and rear

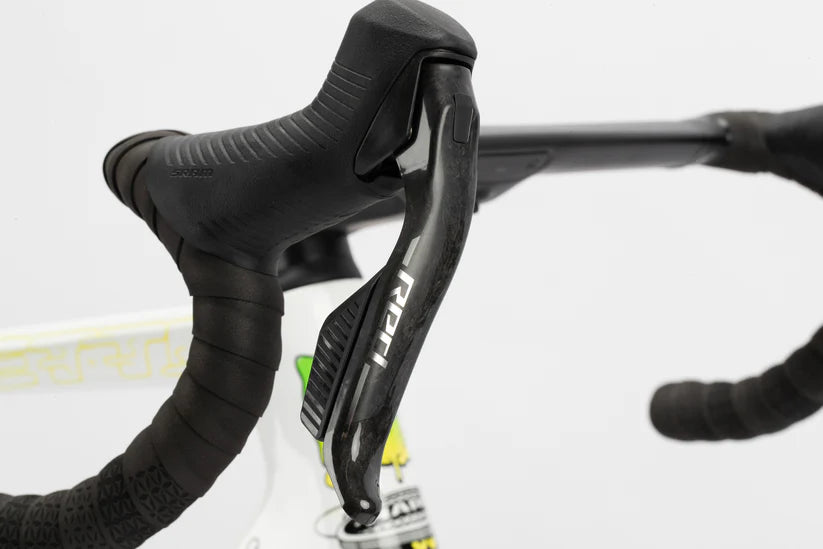

Brake Levers SRAM Red
OTHER COMPONENTS
Grips/Tape Ciclovation Advanced, Leather touch, 3mm thick

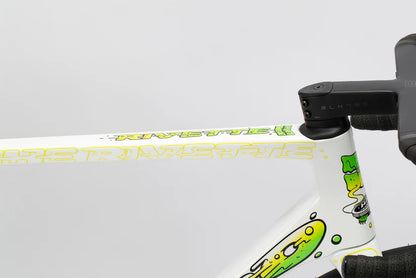

Handlebar BLKTEC R8 Carbon Bar Stem Combo, 48cm, 90mm/38cm; 51cm, 100mm/38cm; 54cm, 100mm/40cm; 56cm, 110mm/40cm; 58cm, 110mm/42cm, ; 61cm, 120mm/42cm
Stem Integral with handlebar
Headset Token A-Box Headset with internal cable routing

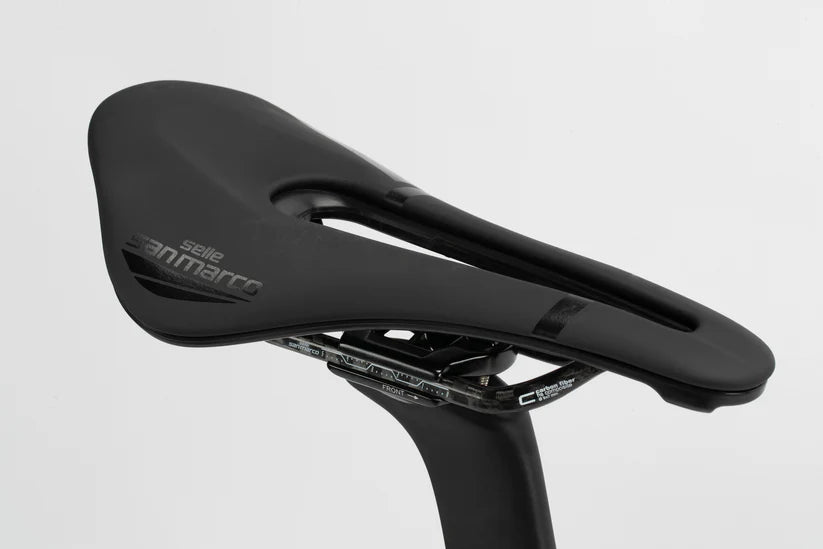

Saddle Selle San Marco Shortfit 2.0 Open-Fit Carbon FX
Seat Post Haro Rivette Carbon Aero; 275mm for 48/51/54 / 375mm for 56/58/61
Seat Clamp Internal
Extras Computer mount. Tubeless valves, tape and sealant included

Geometry:

SIZE 48 51 54 56 58 61
Top Tube (Effective) 518mm 533mm 549mm 565mm 581mm 605mm
Seat Tube (C-T) 430mm 470mm 510mm 536mm 558mm 590mm
Stack Height 513mm 533mm 553mm 574mm 594mm 624mm
Reach 374mm 383mm 387mm 393mm 398mm 406mm
Standover 721mm 753mm 786mm 809mm 832mm 862mm
Head Tube Length 110mm 130mm 153mm 164mm 188mm 220mm
Head Angle 70.9° 71.2° 71.2° 73° 73° 73°
Seat Angle 74.6° 74.3° 74.3° 73.3° 72.9° 72.3°
Wheel Base 983mm 997mm 1009mm 995mm 1008mm 1025mm
Chainstay 408mm 408mm 408mm 408mm 408mm 408mm
BB Drop 74mm 74mm 72mm 72mm 69mm 69mm
Axle to Crown 376mm 376mm 376mm 376mm 376mm 376mm
Fork Offset 53mm 53mm 53mm 45mm 45mm 45mm
Stem Length 90mm 100mm 100mm 110mm 110mm 120mm
Bar Width 380mm 380mm 400mm 400mm 420mm 420mm
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm 175mm
Trail 62.7mm 60.4mm 60.7mm 57.8mm 57.8mm 57.8mm
Wheel Size 700c 700c 700c 700c 700c 700c

Sizing Guide:

Size Inches CM
48 5'1" - 5'4" 153 - 163
51 5'4" - 5'7" 163 - 170
54 5'7" - 5'9" 170 - 175
56 5'9" - 5'11" 175 - 180
58 5'11" - 6'2" 180 - 188
61 6'2" - 6'5" 188 - 196
