Marin

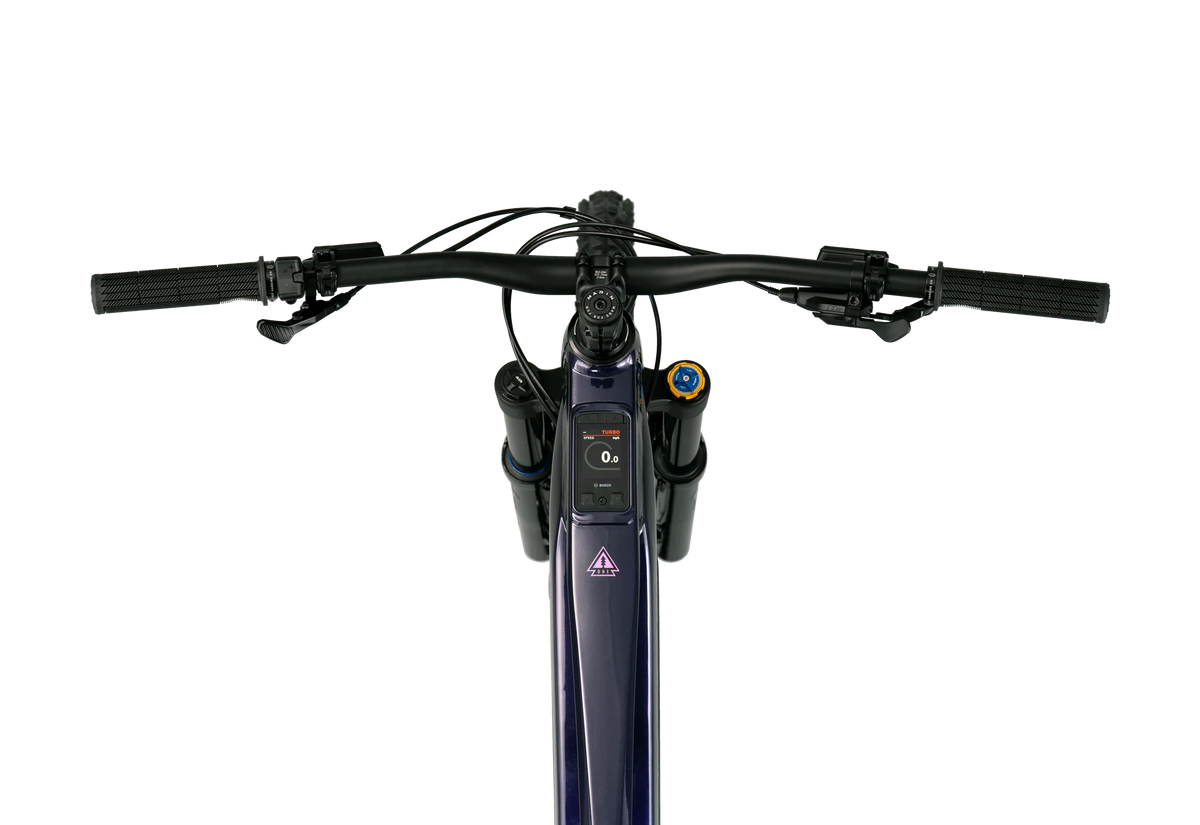

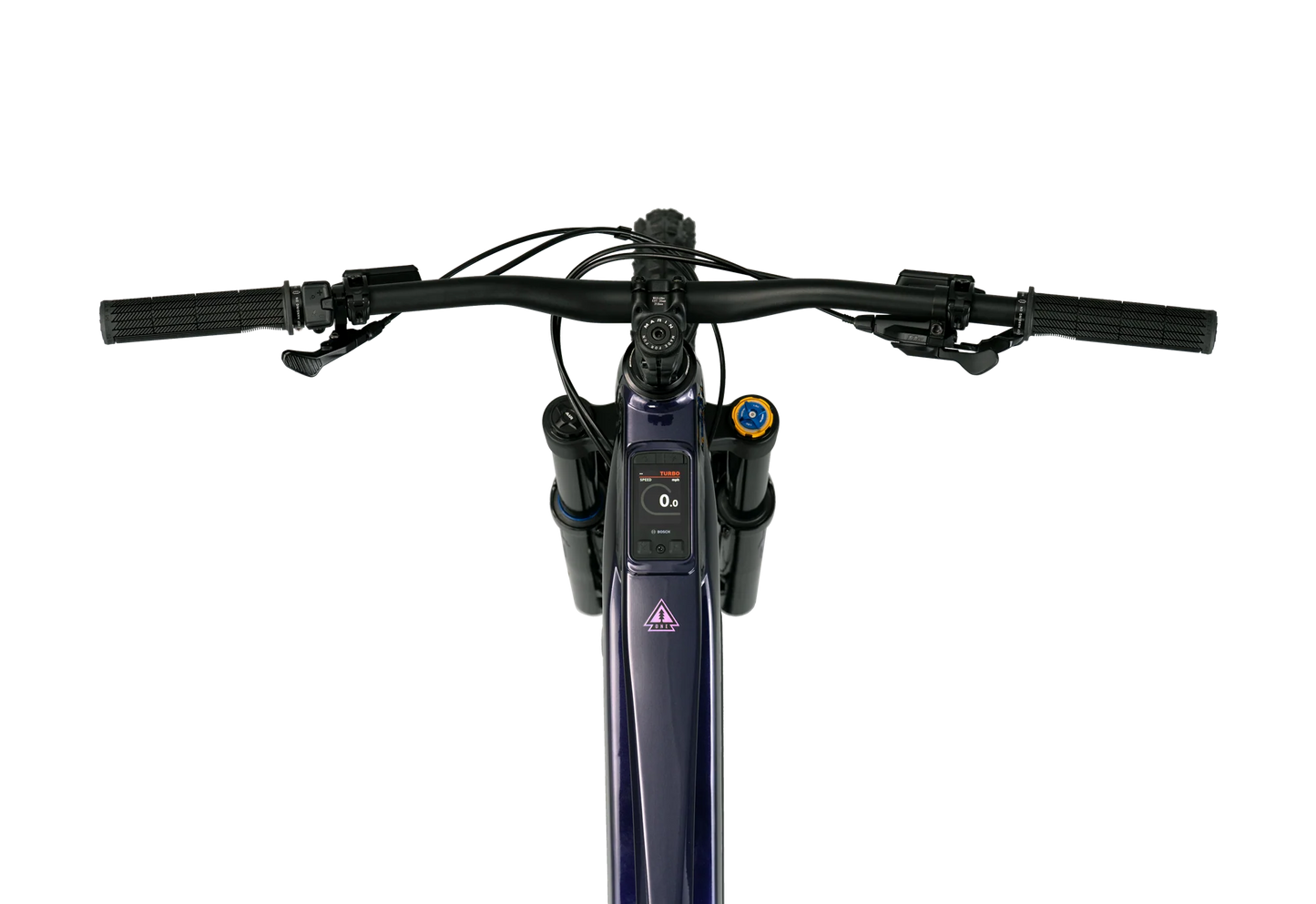

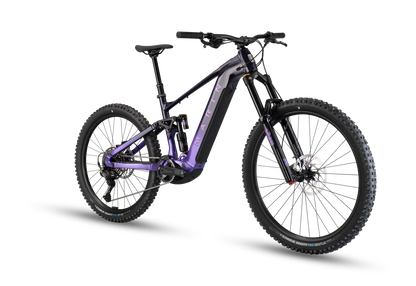

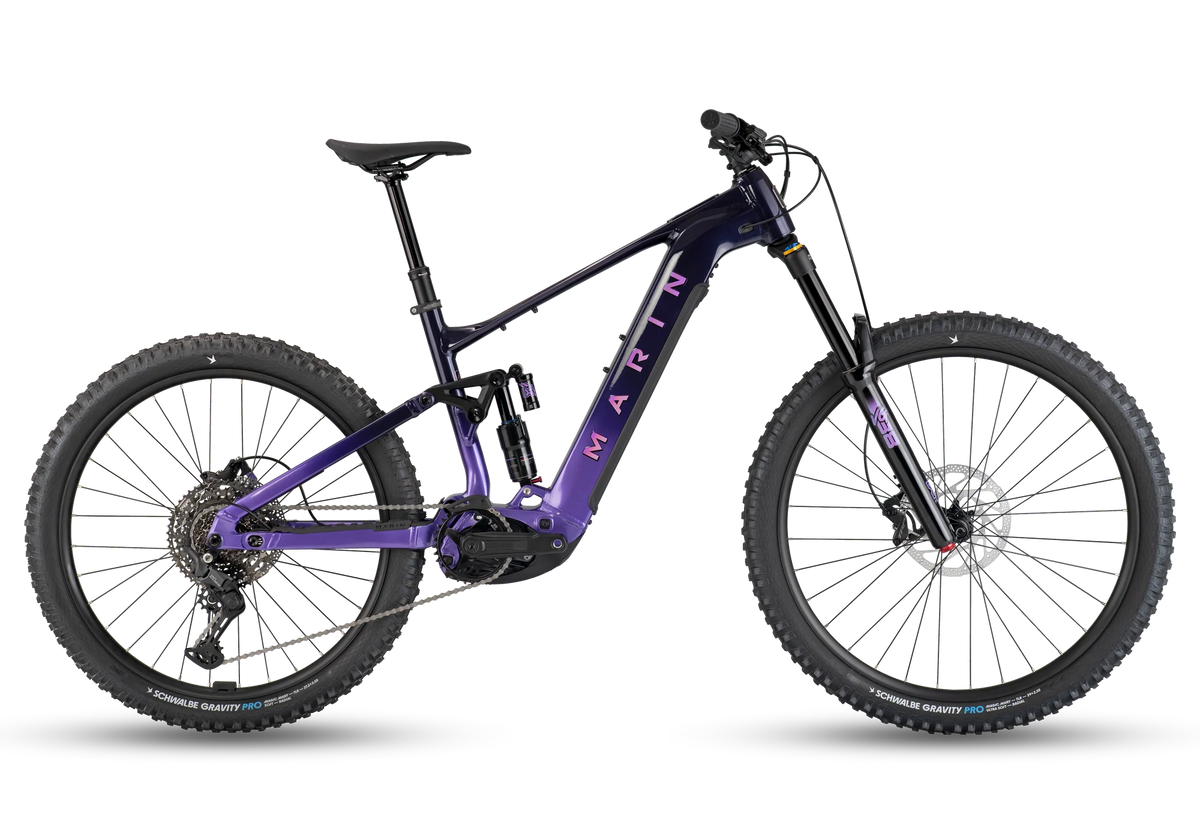

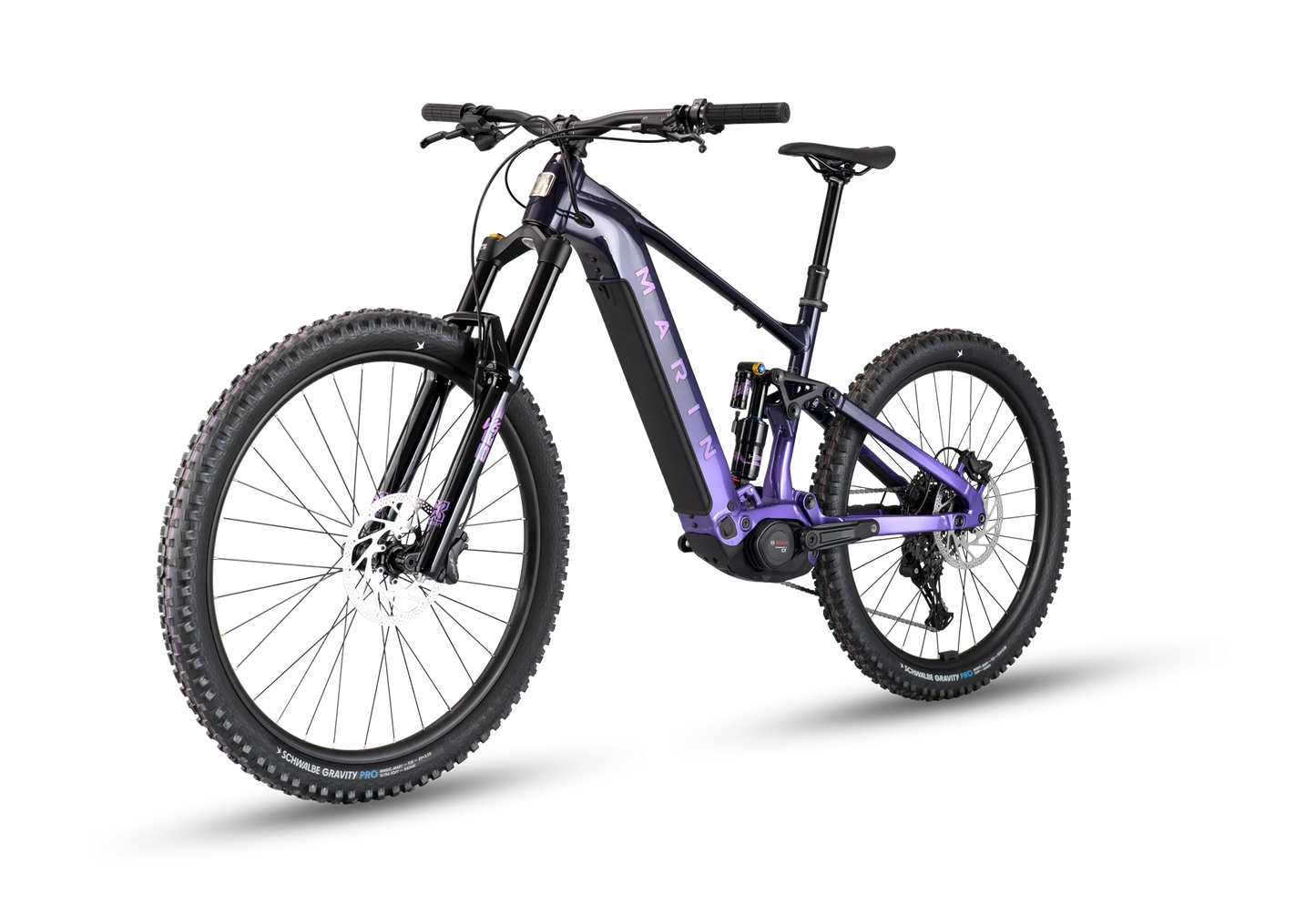

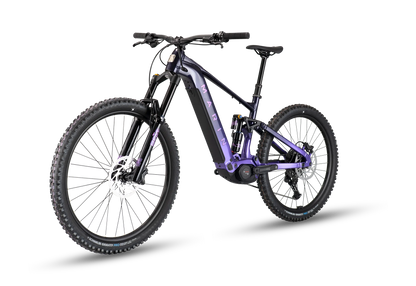

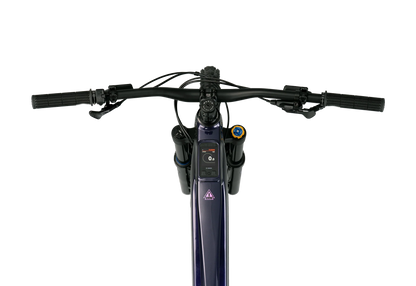

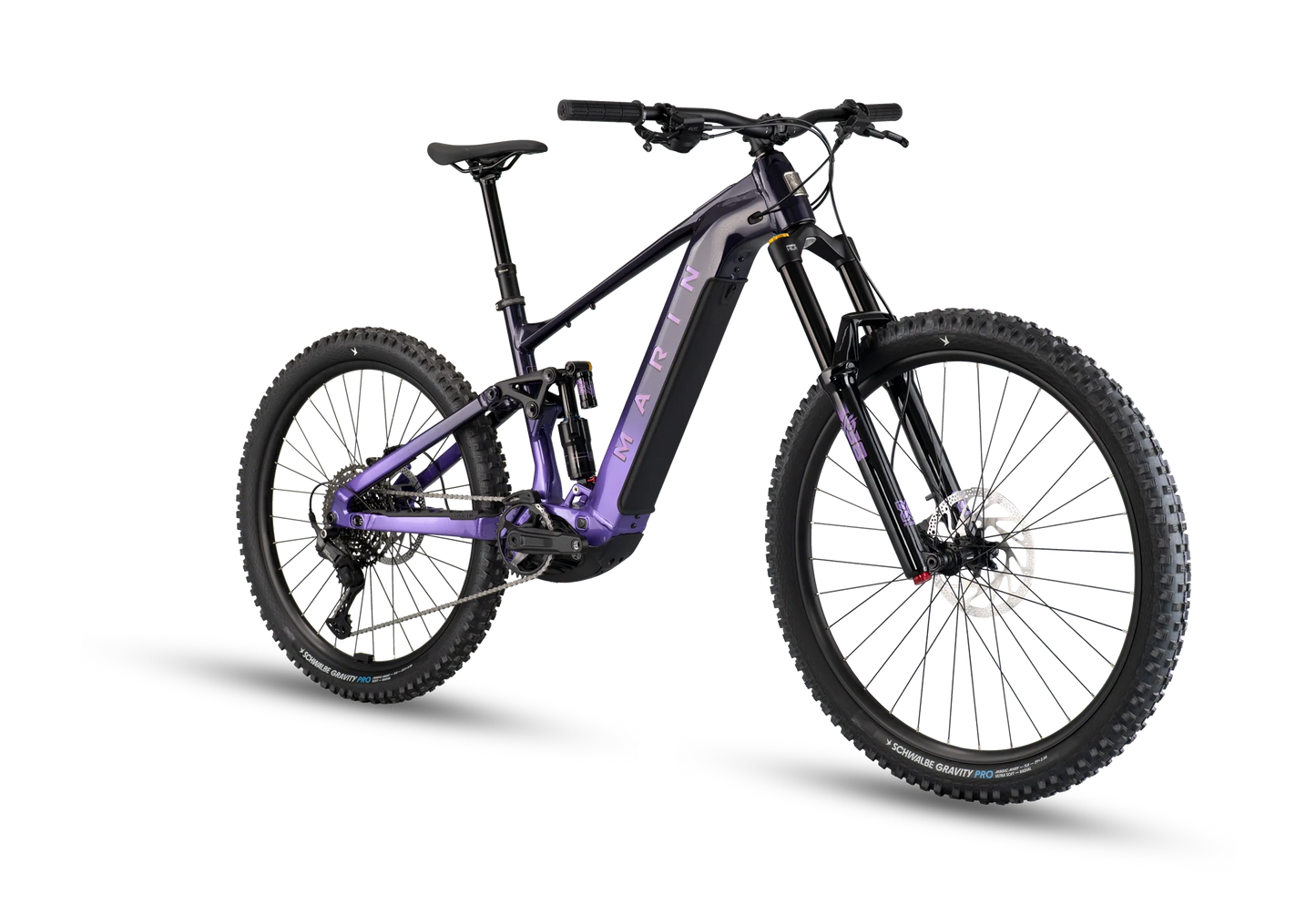

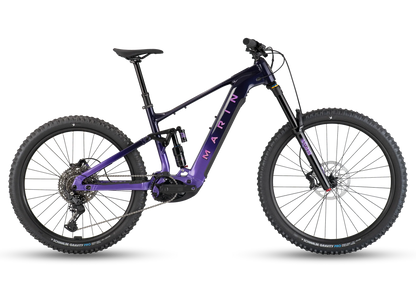

Marin Alpine Trail E1 MX - Purple Fade
Marin Alpine Trail E1 MX - Purple Fade
Product ID: GM061326-28
Shop all Marin | Shop all Electric Mountain Bikes
View full detailsDescription
Marin Alpine Trail E1 MX
The Alpine Trail E Bosch is our biggest, baddest beast of a bike family, with 170mm of suspension up front, 160mm of MultiTrac 2 travel at the rear and a Bosch CX drive unit at its core, the Alpine Trail E is constructed for riders who challenge themselves with the steepest, most technical terrain, and maximum range for big days in the mountains.
Specifications
App
Bosch eBike Flow App
Range
15-55 miles/25-90km
Display
Bosch Kiox 400 Top Tube Display
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Battery
PT800 Horizontal
Frame
All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle
Rear Suspension
X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune
Rim
New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hub Rear
Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body
Hub Front
Shimano HF-MT500B, 110x15mm, Centerlock
Spokes
14g Black Stainless Steel
Tires
Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
Chainguide
e*thirteen e*Spec Chainguide
Derailleur Rear
Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever
Shimano CUES SL-U6000-10R, 10-Speed
Crankset
Marin Forged eMTB Cranks, 150mm
Chain
Shimano LG500
Cassette
Shimano CS-LG300-10, 11-48T
Brakes Front
TRP DHR EVO Comp, 200mm Rotors
Brakes Rear
TRP DHR EVO Comp, 200mm Rotors
Brake Levers
TRP DHR EVO Comp
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle
Marin Short Nose
Geometry
