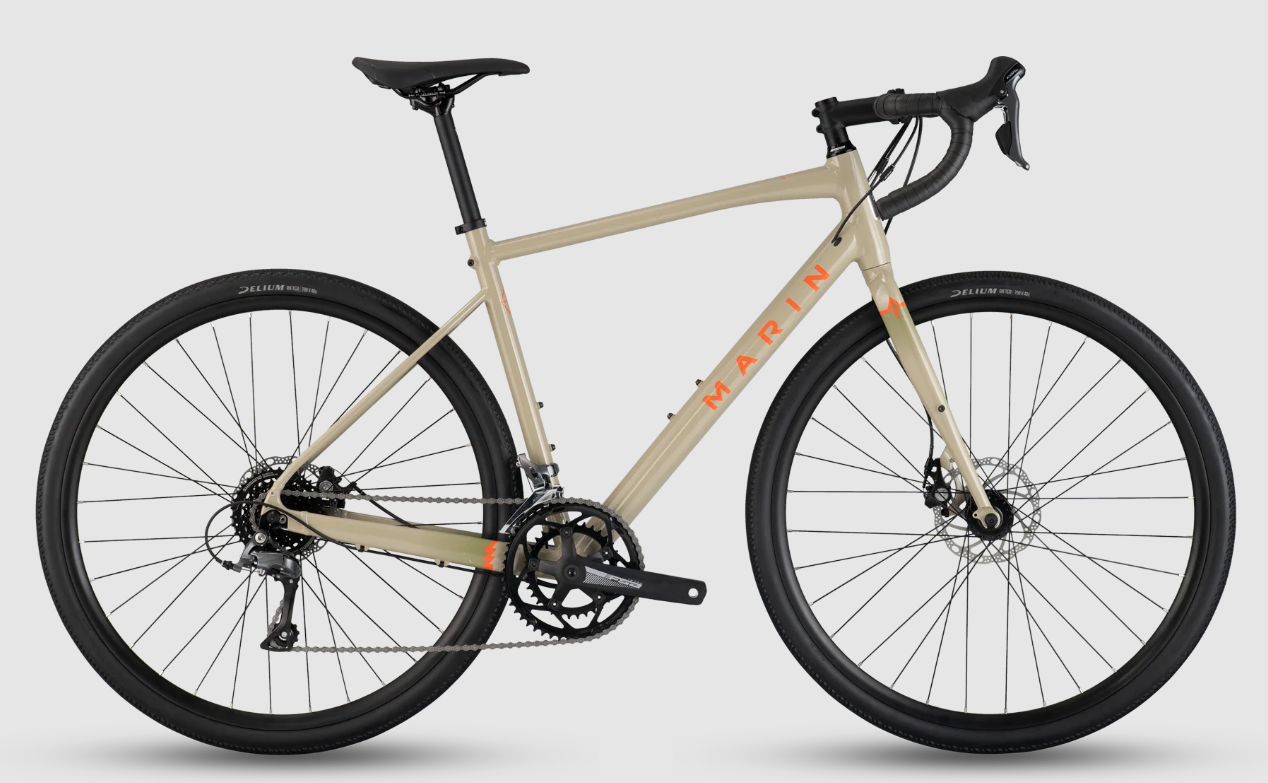

Marin Gestalt Base 700c

Adventure-Ready. Budget-Friendly. Built to Go Beyond the Pavement.

Specifications

Frame & Fork

• Frame: Series 2 Beyond Road 6061 Aluminum, Disc-Specific, Internal Cable Routing, Mudguard & Rack Mounts

• Fork: 6061 Aluminum, Straight Blade, Post-Mount Disc

Drivetrain

• Shifters: Shimano Claris 2x8-Speed

• Front Derailleur: Shimano Claris

• Rear Derailleur: Shimano Claris 8-Speed

• Crankset: FSA Tempo Compact, 50/34T

• Bottom Bracket: Sealed Cartridge, Square Taper

• Cassette: SunRace 8-Speed, 11–32T

• Chain: KMC Z8

Brakes

• Front Brake: Tektro MD-C400 Mechanical Disc, 160mm Rotor

• Rear Brake: Tektro MD-C400 Mechanical Disc, 160mm Rotor

• Brake Levers: Shimano Integrated (with Shifters)

Wheels

• Rims: Marin Aluminum Double Wall, 19mm Internal Width, 25mm Height, Disc Specific

• Front Hub: Forged Aluminum Alloy, 6-Bolt Disc, 32H

• Rear Hub: Forged Aluminum Alloy, 6-Bolt Disc, 32H

• Spokes: 14g Black Stainless Steel

• Tires: WTB Exposure Comp, 700x36c

Cockpit

• Handlebar: Marin Butted Alloy, Compact 12º Flared Drop

• Stem: Marin 3D Forged Alloy

• Grips/Tape: Marin Perforated Bar Tape

• Headset: FSA No.8B

Seating

• Saddle: Marin Beyond Road Concept Saddle

• Seatpost: Marin Alloy, 27.2mm

• Seat Clamp: Marin Alloy

Pedals

• Pedals: Marin Oso OEM Nylon Platform

• Tire Clearance: Up to 700x45c

• Beyond Road Geometry: Endurance road handling + off-pavement stability

• Disc Brake Mounts: Smooth, controlled stopping in all conditions

• Headset: FSA No.8B

• Bottom Bracket: Sealed bearing square taper

Sizing & Geometry
