All-New Bronson MTB Frame

The all-new Bronson is designed for riders who thrive on steep, technical terrain and prioritize agility over sheer rolling speed. With influences from the latest MX bikes, the Bronson offers a finely balanced ride that is both intuitive and bold, pushing the limits of Santa Cruz's renowned VPP suspension system.

Key Features:

• Optimized VPP Suspension:

  • Lower Link Design: The lower VPP link is positioned forward and low, optimizing anti-squat characteristics to deliver a plush, responsive ride. This setup provides an open, comfortable ride feel, even in challenging conditions.

• Size-Specific Chainstays:

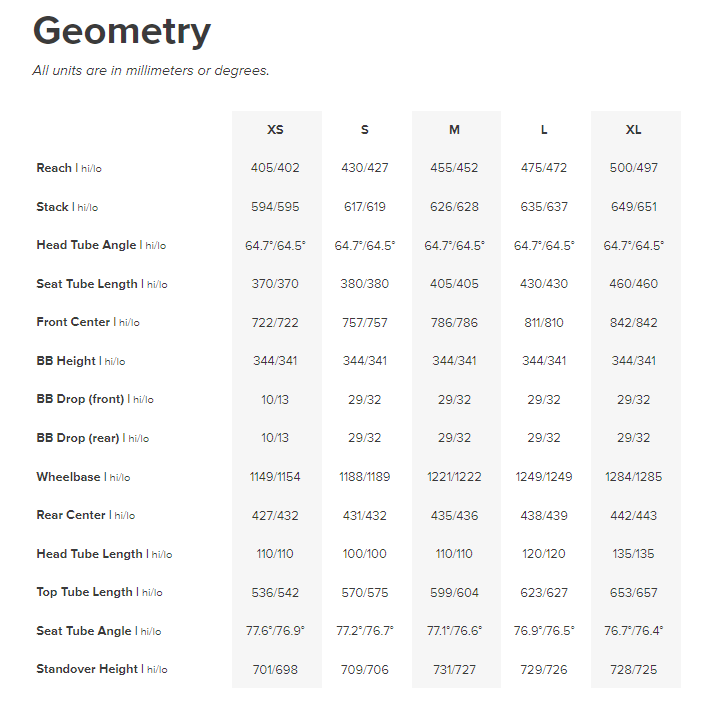

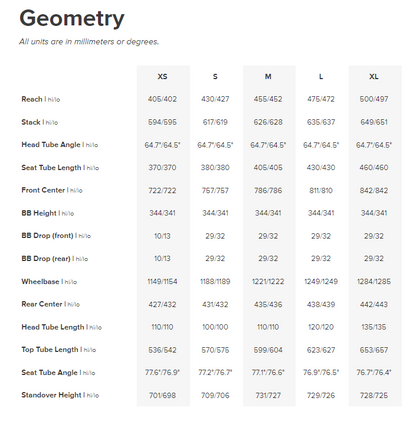

  • Balanced Geometry: The Bronson features longer chainstays that are specifically matched to each frame size. This ensures that riders of all sizes experience the same balanced and stable geometry, enhancing control and confidence on the trails.

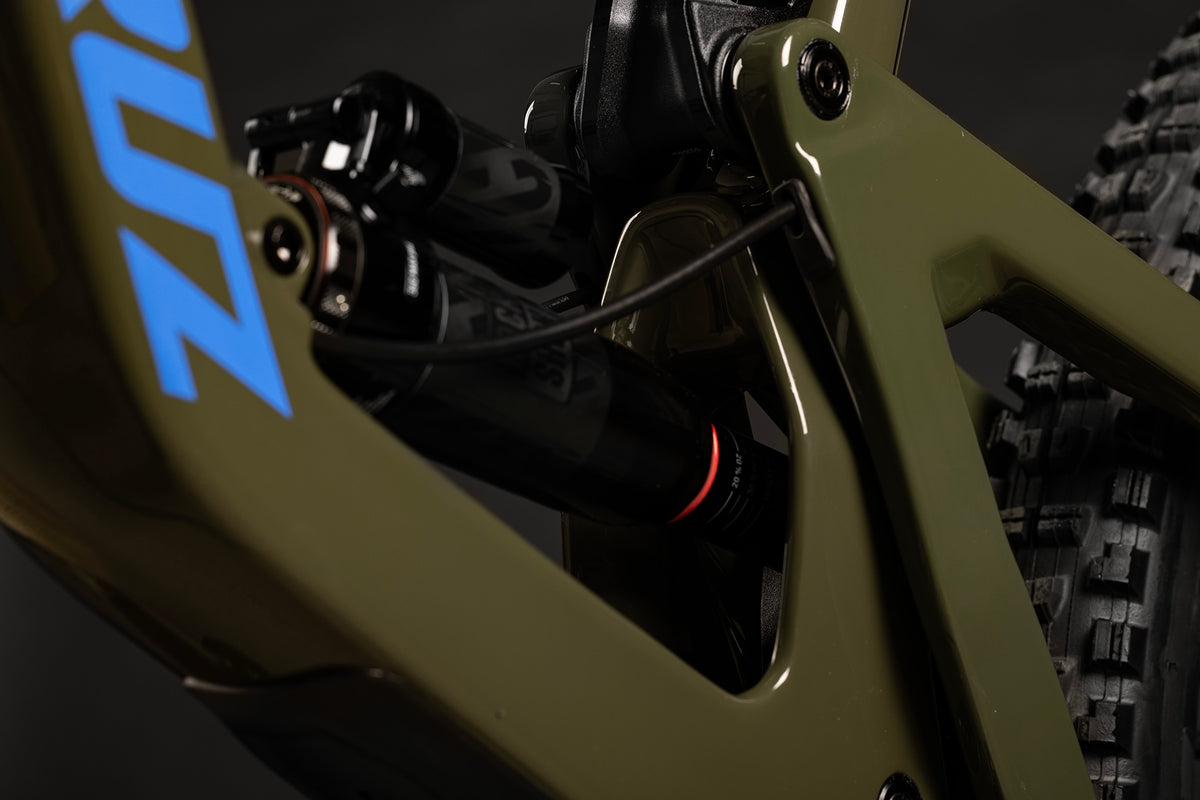

• Internal Cable Routing:

  • C Carbon vs. CC Carbon: On the C Carbon frames, the drivetrain cables are routed internally, providing a clean and sleek look. The CC Carbon frames further refine this with only the dropper post and rear brake cables routed internally, reducing cable clutter and enhancing the aesthetic.

Specifications:

Shimano Components:

• Shimano XT Threaded Bottom Bracket 68/73mm
• Shimano Brake Adapter 203mm Post Mount
• Shimano XT M8120 Left/Front Brake, 850mm Hose (Metal Pads)
• Shimano XT M8120 Right/Rear Brake, J-Kit 1550mm Hose (Metal Pads)
• Shimano XT M8100 Cassette, 10-51T
• Shimano XT M8100 Chain, Quick Link, 126 Links, 12-Speed

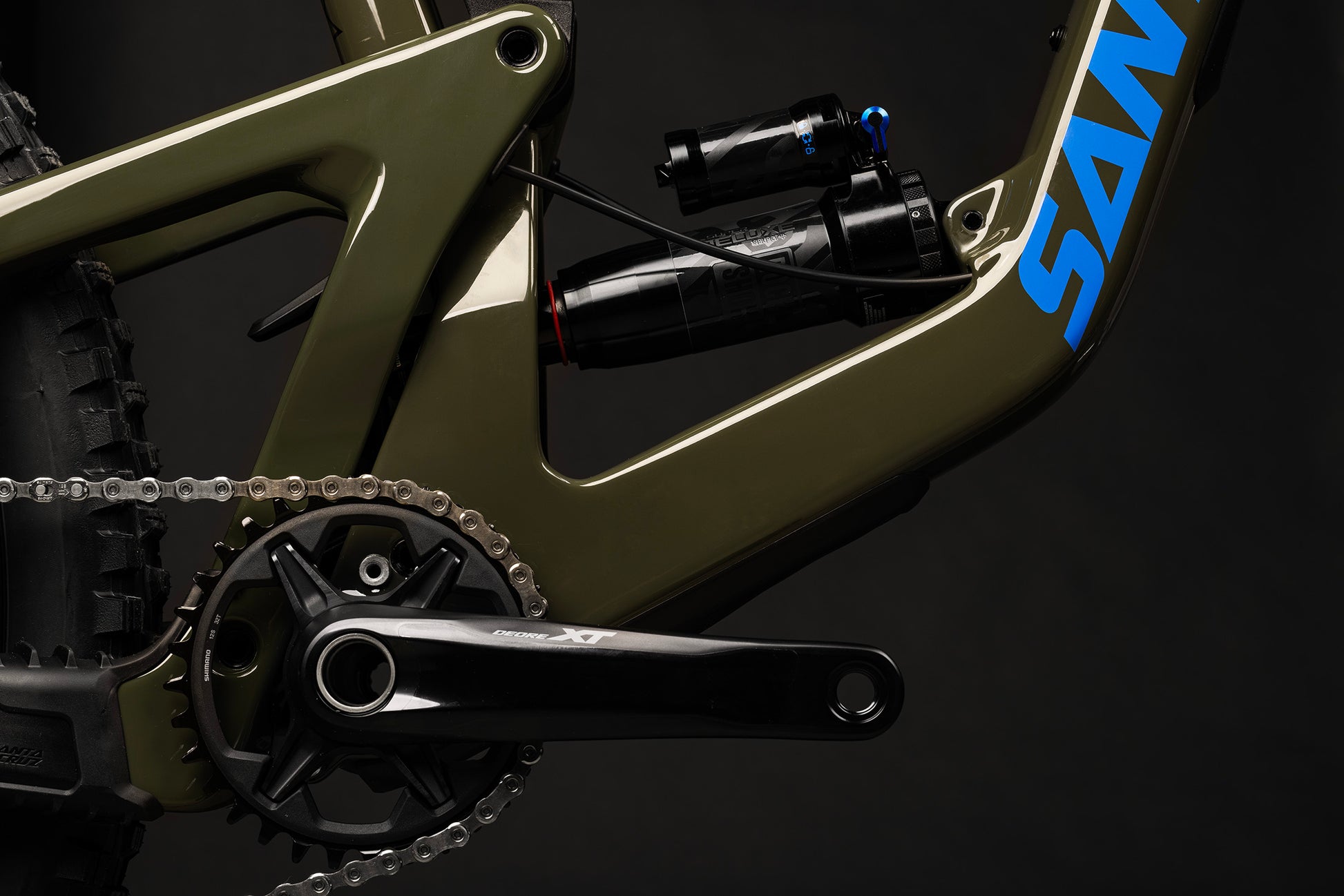

• Shimano XT M8120-1 Crankset, 170mm, 34T

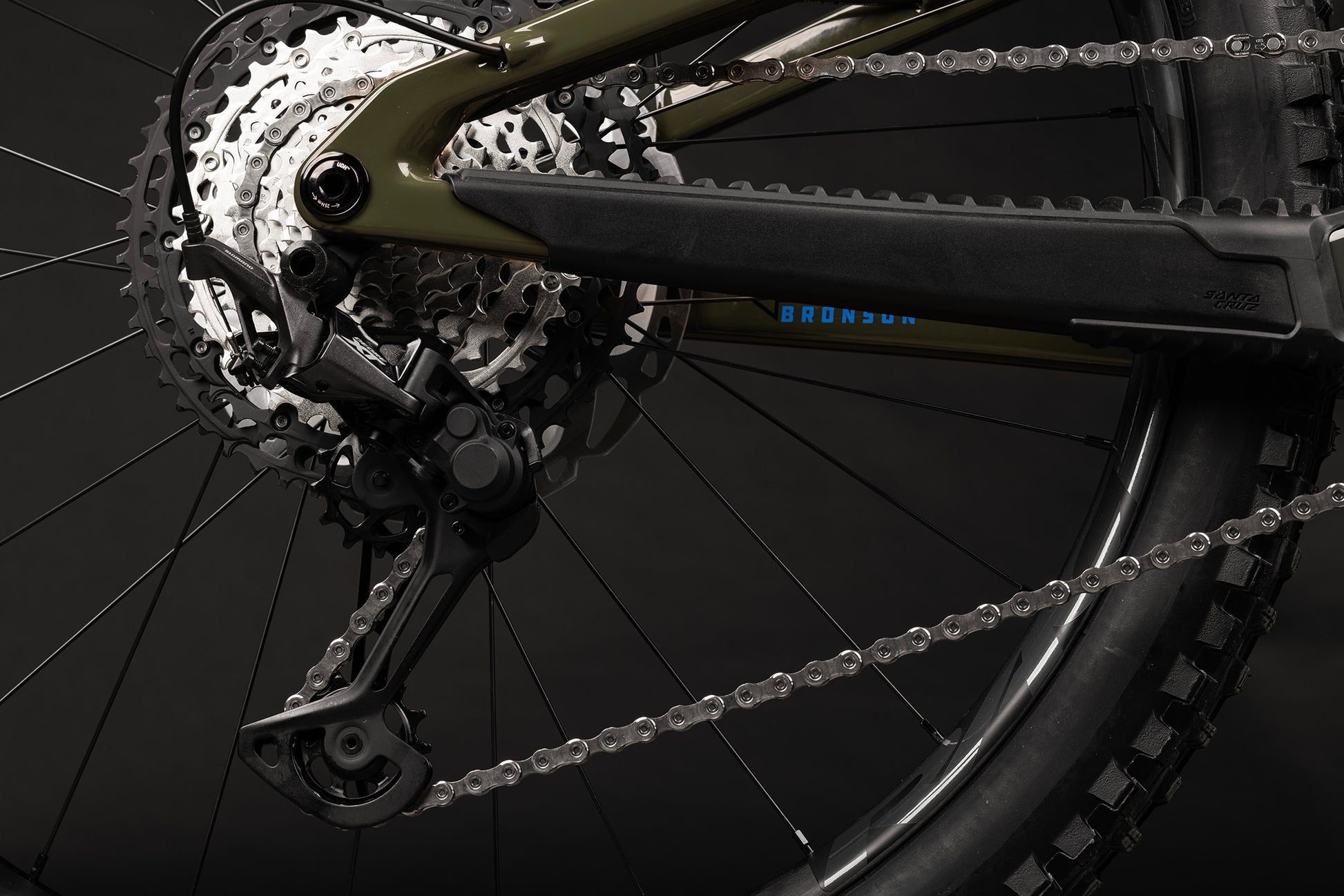

• Shimano XT M8100 Rear Derailleur, 12-Speed
• Shimano XT M8100 12-Speed Shifter I-Spec
• Shimano MT800 XT Rotor Center Lock, 203mm

Frame & Suspension:

• TA Dropout UDH (Universal Derailleur Hanger)

• RockShox 2023 Lyrik Base 160mm, 29" (ND)

• Bronson 4 Lower Link, Forged
• Bronson 4 Upper Link, Forged

Cockpit & Grips:

• X AM Palmdale Grips, Black

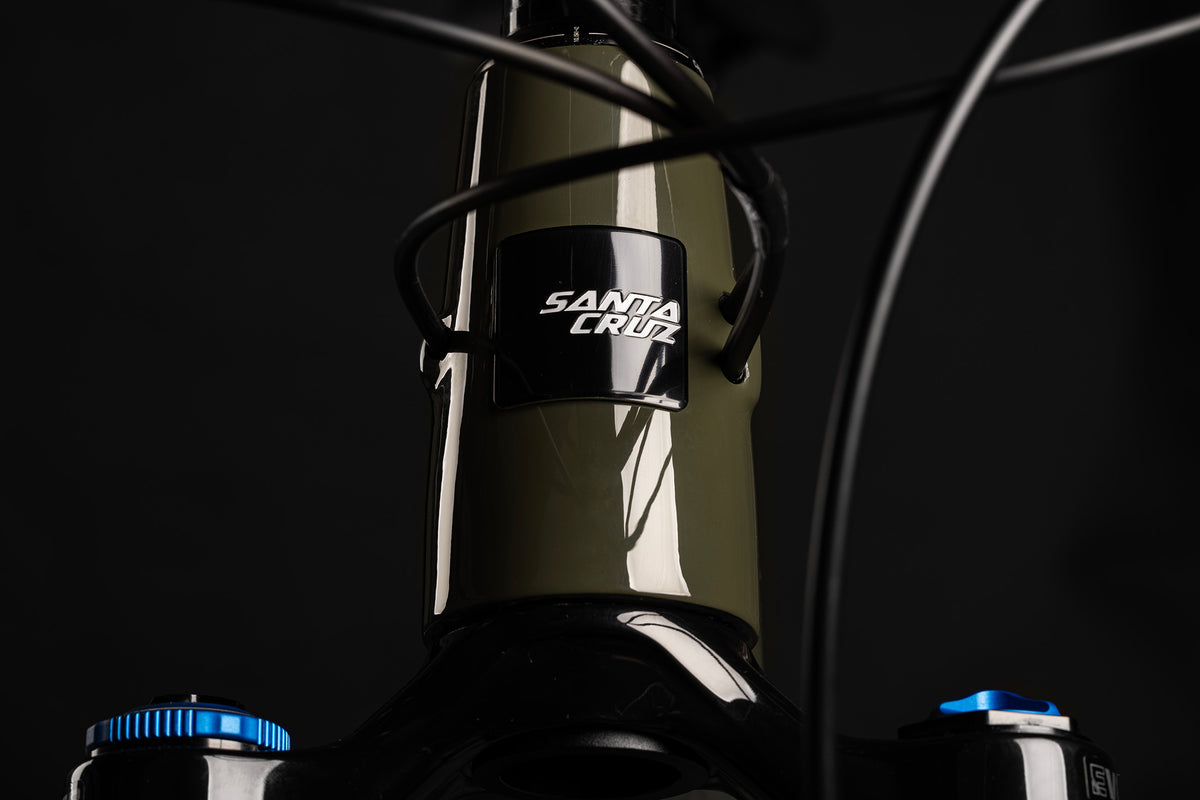

• X Cane Creek 10IS Integrated Headset (37mm)
• Race Face Chester Stem, 35mm Clamp x 40mm Length

Wheels & Hubs:

• DT 240 Front Hub, 110mm, Center Lock, 28H
• DT 240 Rear Hub, 148mm, Micro Spline, Center Lock, 28H
• Race Face 2023 ARC Offset 30 29" Rim, 28H, Grey
• Race Face 2023 ARC Offset 30 27.5" Rim, 28H, Grey
• Fillmore Valve Assembly, 50mm, Pin Type OE
• RSV OEM Rim Tape, 34mm (16 per roll)

Tires:

• Maxxis Minion DHR II 29x2.4 3C EXO MaxxTerra Tubeless Ready, Yellow Label
• Maxxis Minion DHR II 27.5x2.4 EXO Tubeless Ready, Yellow Label

Saddle & Seatpost:

• X WTB Silverado Race Saddle, 142mm, Custom
• X SDG Tellis Dropper Seatpost, 31.6mm, 170mm Travel, Clamp
• SCB 36.4mm Fixed Seat Collar Type 2

Protection & Guards:

• Chainstay Protector, Molded, Type 5
• Downtube Protector, 73mm, Type 3
• Shuttle Guard, Type 3

Suspension:

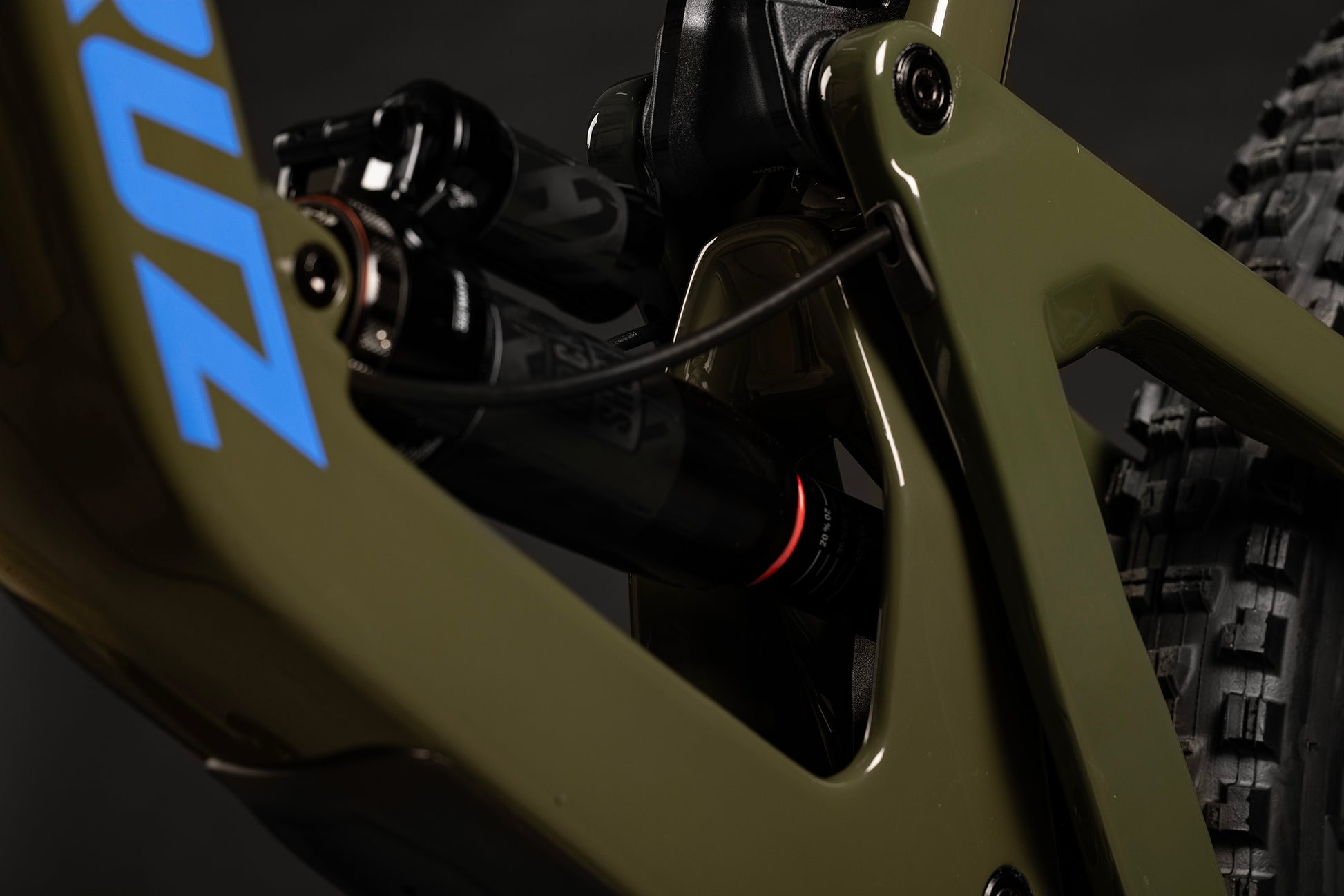

• RockShox Super Deluxe Select+ (230x60)

Accessories:

• Stans NoTubes Tire Sealant, 250mL
• X RSV Tubeless Sealant, 200mL

Conclusion:

The all-new Bronson is crafted for those who demand precision, agility, and adaptability from their trail bike. With its advanced VPP suspension, tailored geometry, and thoughtful features like the integrated Glovebox storage, the Bronson is ready to tackle steep descents and technical terrain with confidence and style. Whether you’re navigating tricky trails or charging through bike parks, the Bronson delivers a ride that’s as bold as it is refined.
