Santa Cruz Tallboy 5 CC 29 Frame - Fox Factory - Gloss Black - 2025
Santa Cruz Tallboy 5 CC 29 Frame - Fox Factory - Gloss Black - 2025
Regular price
$3,949.00
Sale price
$3,949.00
Unit price
per
Product ID: GM091725-640
Earn
Out of stock
Shop all Santa Cruz | Shop all Full Suspension Frames
View full detailsDescription

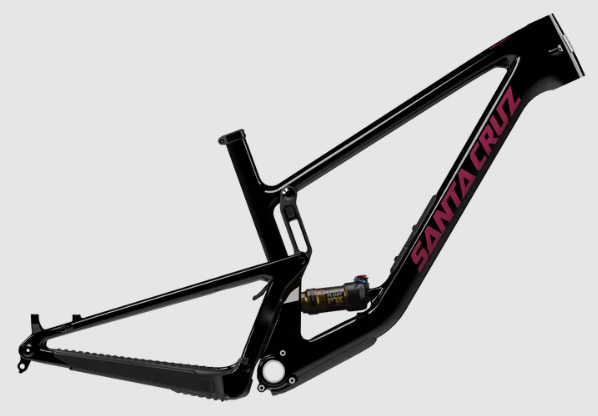

Santa Cruz Tallboy 5 CC 29 Frame - Fox Factory
The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of power hour rides or riding for all-the-hours. The highly refined VPP™ suspension on the Tallboy combines pedaling efficiency and all-out bump-chomping prowess. If ever there was a gravity riders’ XC bike, the Tallboy is it.
Key Details:
- Carbon CC Frame
- FOX Float Factory Shock
Specifications:
| Frame | |
|---|---|
| Material | Carbon CC |
| Travel | 120mm |
| Weight | 6.24 lbs / 2.83 kg |
| Wheel Size | 29 |
| Suspension | |
|---|---|
| Shock | FOX Float Factory, 190x45 |
| Specs | |
|---|---|
| Bottom Bracket Shell | 73mm Threaded |
| Rear Brake Mount | PM 180mm |
| Shock Length | 190mm |
| Fork Compatibility | 130mm |
| Fork Offset | 44mm |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 36t |
| Max Tire Clearance | 2.5" |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Bushing Size Front | 30x8 |
| Shock Bushing Size Rear | 30x8 |
| Shock Stroke | 45mm |
| Suspension System | VPP |
| Water Bottle Mounts | 1 |
Sizing & Geometry:
