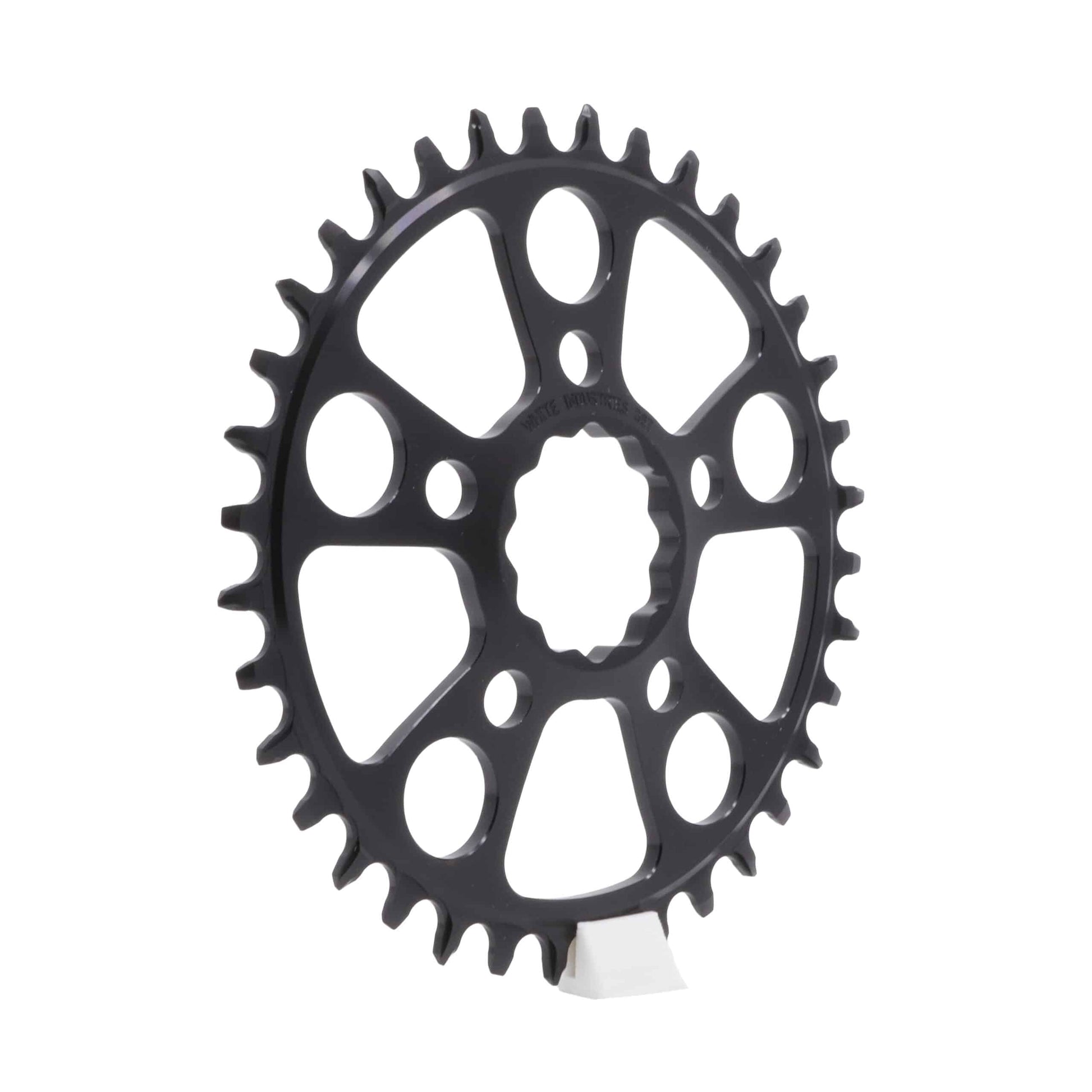

White Industries MR30 TSR 1x Chainring

TSR (Tall-Short-Ring) 1X chainrings are designed to work with 8-12 speed 1X drivetrain systems.  The tall/short tooth profile helps prevent the chain from falling off the ring when riding through rough terrain and is a must on 1x drivetrains, but is also compatible with singlespeed drivetrains. Made in our shop from 7075-T6 aluminum (48-52 tooth rings are 6061-T6).

Specifications

• Available in black anodized and raw (unpolished) silver
• 28 teeth to 52 teeth in 2 tooth increments
• Boost and non-Boost versions
  • Standard/non-boost rings have a 3mm offset (inward)
  • Boost rings are flat (so 3mm outward of our standard/non-boost rings)
  • Standard/non-Boost rings can be flipped so the offset shifts outward to give you 3mm more outward offset than our Boost rings
    • This set up is is used on M30 cranks for a 55mm chainline needed for SRAM Transmission, Rohloff hubs, and Super Boost 157mm spaced hubs
• Chainlines:

*55mm chainline for SRAM Transmission, Rohloff hubs,  Super Boost 157mm spaced hubs

Compatibility

• MR30 series TSR chainrings fit White Industries MR30 series spindle cranks only
• Compatible with SRAM 10/11/12 speed and 12 speed flat-top chains
• Compatible with SRAM 12 speed Eagle Transmission flat-top chains
• Compatible with Shimano 9/10/11/12 speed chains (and now works with the Shimano’s 12 speed Quick Link)
• Compatible with single speed 3/32 chains, but 8 speed 3/32″ chains are quieter
  • We like the SRAM PC 870, KMC X8, and KMC Z8.1/8.3
• Not compatible with “half” links
• Not compatible with 1/8″ chains
