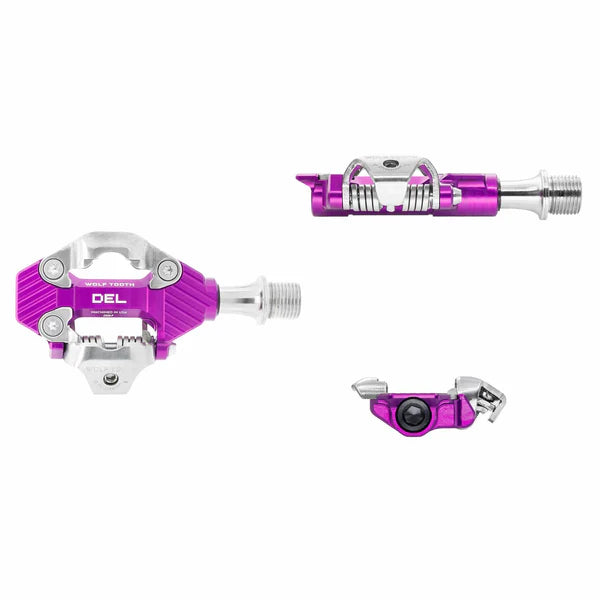

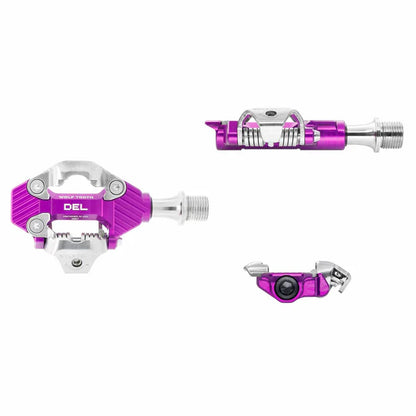

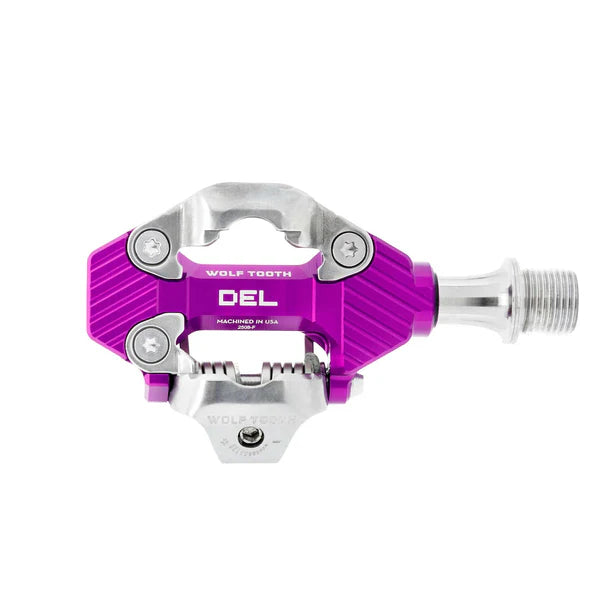

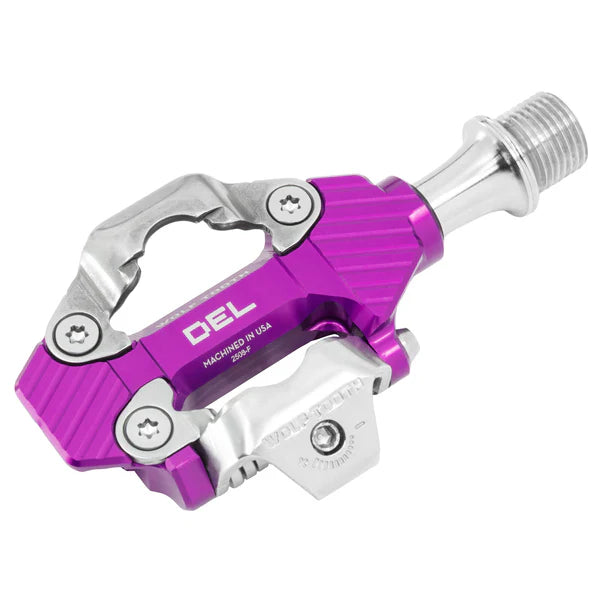

Wolf Tooth Components DEL Gravel Clipless MTB Pedal - Ultraviolet Purple
Wolf Tooth Components DEL Gravel Clipless MTB Pedal - Ultraviolet Purple
Product ID: GM091925-25
Only 1 Items Left
Shop all Wolf Tooth Components | Shop all MTB Clipless Pedals
View full detailsDescription
Wolf Tooth Components DEL Gravel Clipless MTB Pedal
There are no other gravel race pedals like this. Wolf Tooth DEL Gravel Race Clipless Pedals are optimized for maximum power transfer and efficiency in a small, aerodynamic package. Think of all the advantages of a road pedal, but with a shoe and cleat system that works in all conditions. HIke-a-bike through muddy B-roads are no longer a problem. This is ultimate lightweight SPD-compatible gravel race pedal.
-
Thinner than the competition at 14.7 mm (compared to Xpedo MF8 at 17 mm, Shimano XTR 9200 at 16.5 mm, and Eggbeater 3 at 17 mm)
-
Lighter weight than the competition at 216 g (compared to Xpedo MF8 at 220 g, Shimano XTR 9200 at 316 g, and Eggbeater 3 at 265 g)
-
Larger platform area for power transfer than the competition at 559 mm² (compared to Xpedo MF8 at 46 mm², Shimano XTR 9200 at 144 mm² and Eggbeater 3 at 102 mm²)
-
Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately)
- 5 degrees float | 12 degrees release
- SPD compatible
- Proven axle and bearing design from Waveform Aluminum Pedals
- Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Tech Specs:
Weight: 216g
Material:
Body: 6061-T6 aluminum CNC machined
Axle: heat-treated 17-4 PH stainless steel
Binding Cage: stainless steel; Hardware: stainless steel

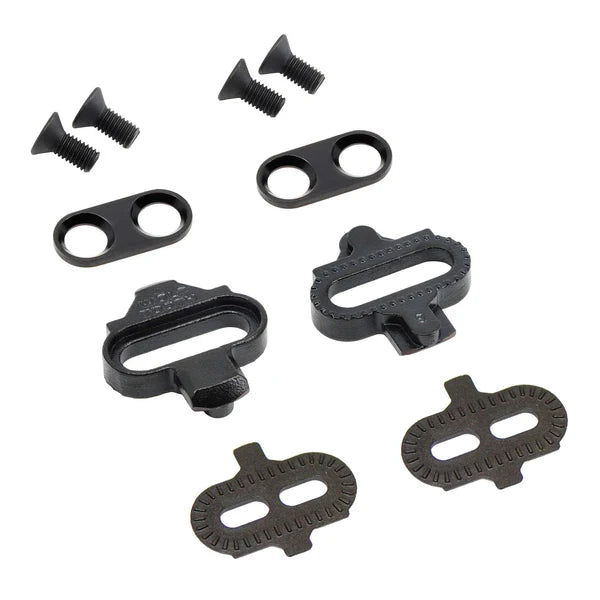

Included: pedals, cleats with shims and bolts
Made in the USA
Riding with DEL Gravel Race Clipless Pedals feels more like riding with road shoes and pedals than standard gravel race shoes and XC pedals. The large platform area maximizes pedal and shoe contact for supreme power transfer.
DEL Gravel Race Pedals are significantly lighter, feature more platform area, and have a lower stack height than any other two-bolt SPD-compatible clipless pedal. Road pedal feel and power transfer with XC and gravel race shoes in any and all conditions.
These pedals will outlast your bike. The stainless steel SPD-compatible binding assemblies and axles create strong, rust-free pedals that are ready to ride hard on the nastiest dirt on the map.
Clipping in and out needs to be simple, quick, and reliable. The DEL Gravel Race Clipless Pedals feature an SPD-compatible stainless steel binding that will work with your existing SPD cleats. They are optimized for the Wolf Tooth cleats that are included in the box. We improved the clipping experience so you can swiftly clip in at the start of the race, stay clipped in when it matters most, and unclip as quickly as needed.

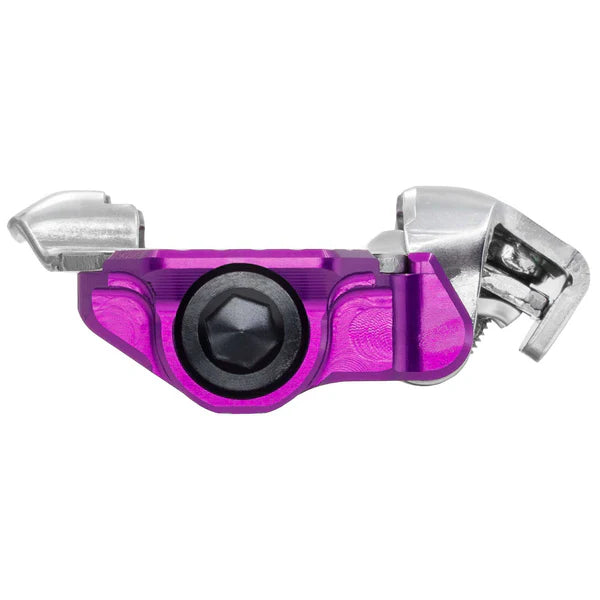

Adjusting the Q factor (pedal stance width) moves the pedal toward or away from the center of the bike. The DEL Gravel Race Clipless Pedals have Q factor options of 51, 55, and 59mm to fine-tune your fit. Most clipless pedals have a stock Q factor around 55mm. Adjusting Q factor is simple enough to do at home.

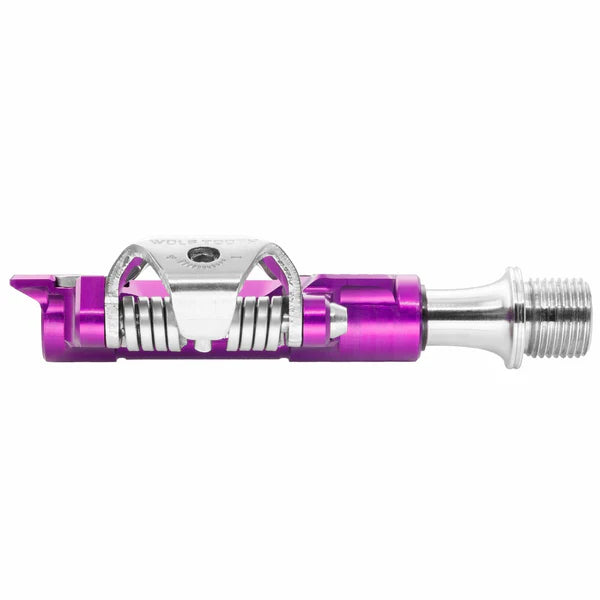

We designed DEL Gravel Race Clipless Pedals with a thin profile and open center for mud shedding. Your clips and unclips will be quick and reliable, regardless of mud and grit.

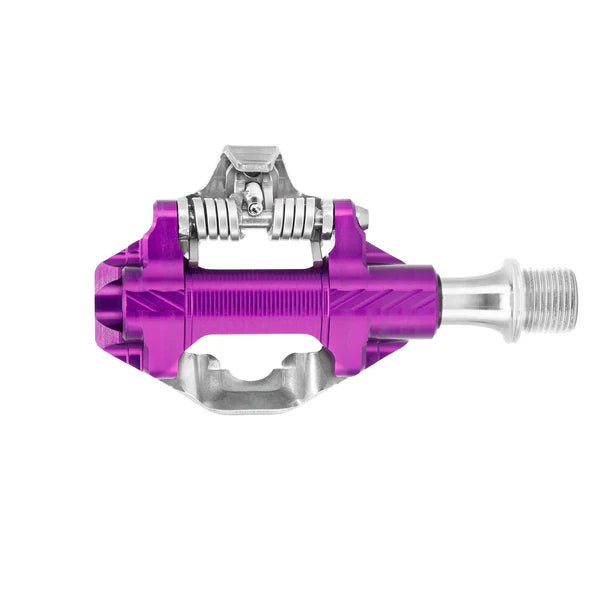

DEL Gravel Race Clipless Pedals feature machined components from Wolf Tooth HQ here in Minnesota, USA. The internal components use the same proven design from our popular Waveform Aluminum Pedals, including a machined stainless steel axle, three low-friction cartridge bearings, and one igus bushing with a custom radial seal that protects internal components from trail debris.
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
Compatibility
- Compatible with SPD cleats; Wolf Tooth cleats included
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
